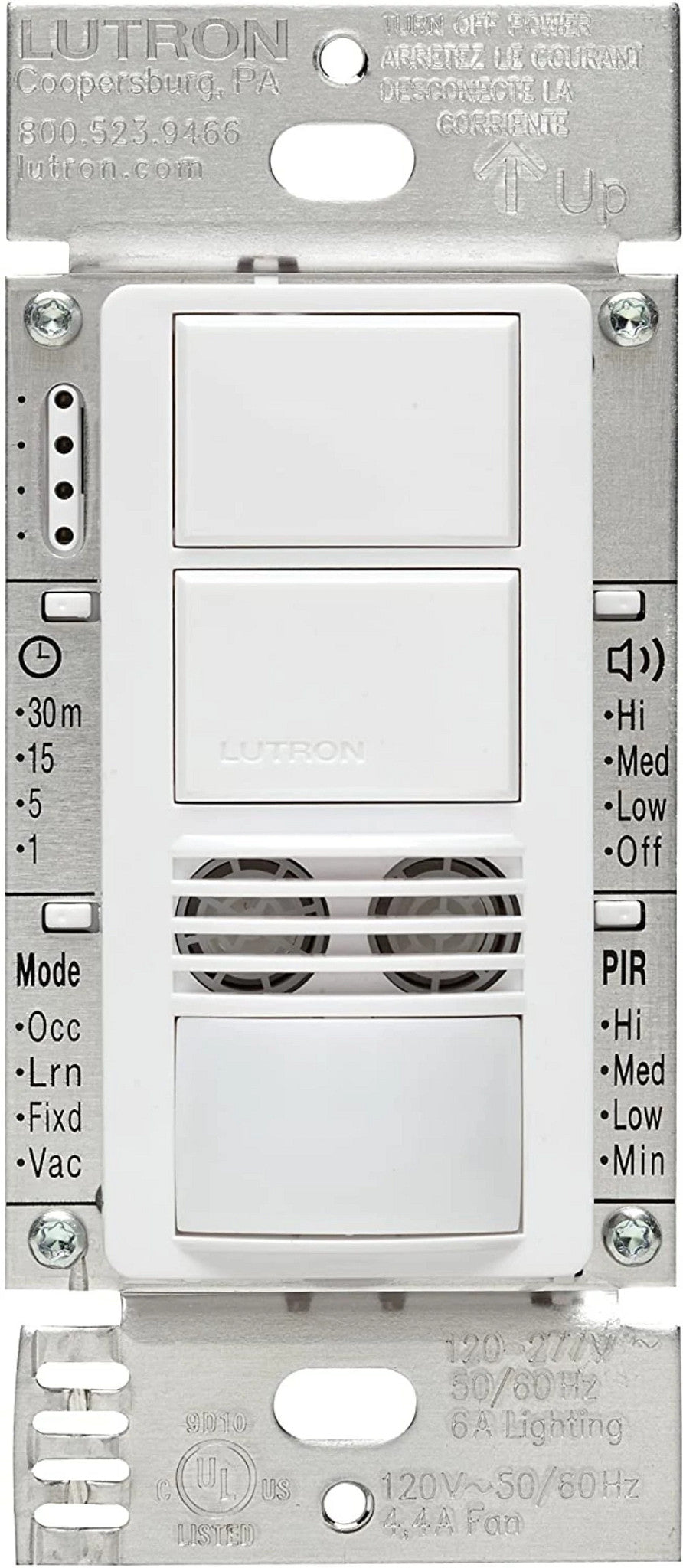

Lutron Maestro Dual Circuit Dual-Tech Motion Sensor Switch, 6A, 120-277V, Single Pole and 3-Way, Neutral Required, MS-B202-WH, White
- ROCK SKU: LUT-MS-B202-WH
- UPC: 784276086288
- MFG Part #: MS-B202-WH
$135.50
$79.01
Estimated Lead Time: 4-5 weeks
Product dimensions
-
Width:
2.4 IN
-
Height:
3.4 IN
-
Depth:
4.4 IN
-
Weight:
0.35 LBS
Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing. Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings. XCT technology for major, minor, fine, and very fine motion detection. 180 degree field-of-view. Tamper-resistant PIR lens. Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage. Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm. Sensor learns user's preferred light level over time. Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min. Can be set to auto-on/auto-off or manual-on/auto-off per circuit. Adjustable timeout for each circuit (1, 5, 15, or 30 minutes). Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off). Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent. Switches fan loads at 120 V. Requires neutral wiring.
- Includes (1) Lutron Maestro Dual Circuit Dual-Tech Motion 6A Sensor Switch; Gloss Finish
- Controls (2) individual circuits, each rated up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light
- Ground or Neutral required; 120-277V
- Functions as either (2) single pole circuits or (1) single pole and (1) 3-way circuit with an existing 3-way switch
- Lutron Dual Sensing Technology: Ultrasonic and PIR (Passive-Infrared) for major, minor, fine, and very fine motion detection
- 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); tamper resistant lens
- Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough light is present in the room
- Complies with Title 20/24, ASHREA 90.1 and IECC requirements for “automatic shutoff” and “multi-level lighting control
- Easy to read programming buttons directly on sensor; Settings include timeout, sensitivity, and programmable circuit swapping (eliminates rewiring after installation) and more
- Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
| Body | Plastic |
| Supply Voltage | 120 to 277 |
| Application | Lighting Control |
| Type | Occupancy sensor switch, dual-circuit, multi-location/3-way/single-pole |
| Standard | UL, cUL, NOM |
| Sensing Range, Maximum | 900 |
| Sensing Range, Minimum | 400 |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Enclosure | Plastic |
| Load | 6 A@10-277 VAC lights/4.4 A (0.167 HP)@120 VAC fan |
| Mounting | Wallbox |
| Indicator | Smart ambient light detection (ALD)/Fixed ambient light detection |
