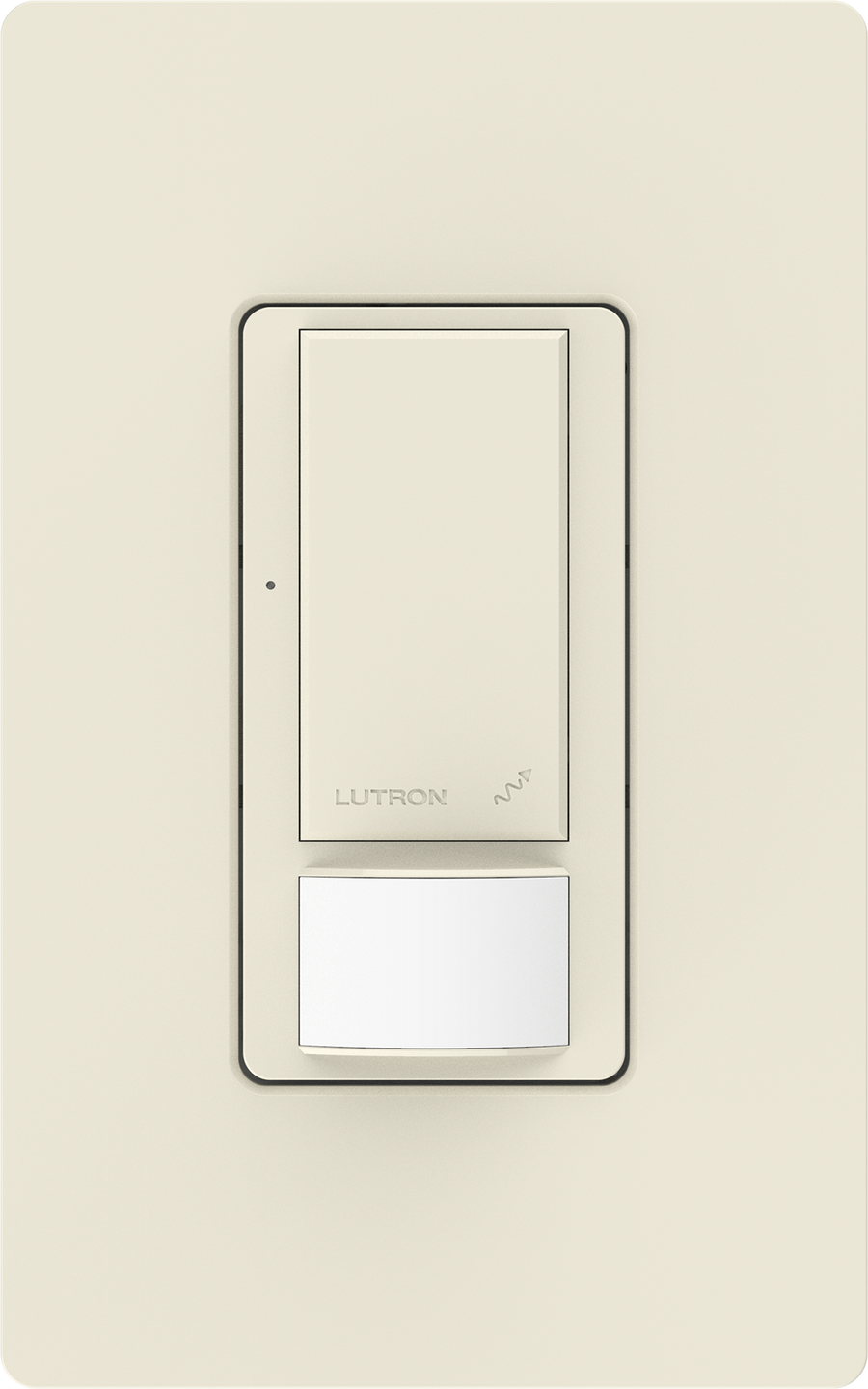

Lutron Vive Maestro Occupancy/Vacancy In-Wall Sensor Switch, 8A Light/4.4A Fan Switching, 120/277V, MRF2S-8SS-LA, Light Almond
- ROCK SKU: LUT-MRF2S-8SS-LA
- UPC: 784276262279
- MFG Part #: MRF2S-8SS-LA
Estimated Lead Time: 2-3 weeks
Product dimensions
-
Width:
1.82 IN
-
Height:
4.13 IN
-
Depth:
1.57 IN
-
Weight:
0.23 LBS
Combines a Maestro switch with a passive infrared occupancy sensor. Detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly. Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan. Ground wire required.
- Controls 0 -10 V- electronic fluorescent ballasts or LED driver load types
- Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection
- 180 deg sensor field-of-view
- Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
- Occupancy version can be set to auto-on/auto-off or manual-on/auto-off
- Adjustable timeout (1, 5, 15, or 30 minutes). Adjustable settings for auto-on light level(occupancy): Adjustable from 1%-100%. Adjustable settings for auto-off light level (vacancy): Adjustable from 0%-100%. Adjustable sensitivity: High, Med, Low, Min.
- Off warning fades lights to off over a period of 10 seconds
- Adaptive switching algorithm for extended relay life
- Smart ambient light detection (ALD)
| Application | Lighting Control |
| Body | Plastic |
| Enclosure | Plastic |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Load | 6 A@120 to 277 VAC lights/3 A@120 VAC fan/3 A@120 VAC light and fan |
| Operating Temperature, Maximum | 104.00 |
| Operating Temperature, Minimum | 32.00 |
| Sensing Range, Maximum | 900 |
| Sensing Range, Minimum | 400 |
| Sensor | Passive infrared motion detection with dependable Lutron XCT technology |
| Supply Voltage | 120 to 277 |
| Standard | UL, cUL, NOM |
| Type | Occupancy sensor switch, multi-location/3-way/single-pole, dual-voltage |
| Mounting | Wallbox |
Product dimensions
-
Width:
1.82 IN
-
Height:
4.13 IN
-
Depth:
1.57 IN
-
Weight:
0.23 LBS
