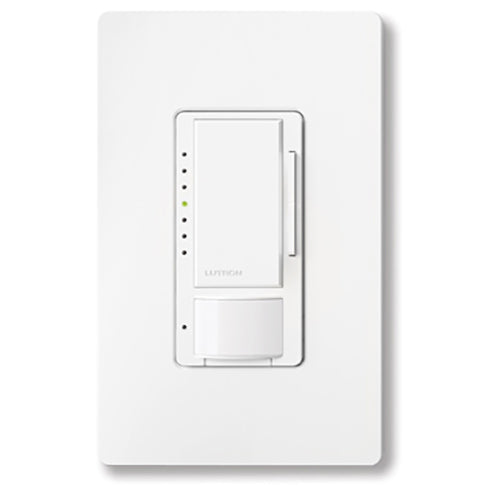

Lutron Maestro RF 0–10 V Occupancy/Vacancy Sensor Dimmer, 434Mhz, 8A, White, MRF2S-8SD010-WH



In Stock and Ready to Ship

Product dimensions

  • Width:

    2.4 IN

  • Height:

    2.4 IN

  • Depth:

    4.5 IN

  • Weight:

    0.25 LBS

Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an occupancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert


  • Controls 0 -10 V- electronic fluorescent ballasts or LED driver load types
  • Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection
  • 180 deg sensor field-of-view
  • Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
  • Occupancy version can be set to auto-on/auto-off or manual-on/auto-off
  • Adjustable timeout (1, 5, 15, or 30 minutes). Adjustable settings for auto-on light level(occupancy): Adjustable from 1%-100%. Adjustable settings for auto-off light level (vacancy): Adjustable from 0%-100%. Adjustable sensitivity: High, Med, Low, Min.
  • Off warning fades lights to off over a period of 10 seconds
  • Adaptive switching algorithm for extended relay life
  • Smart ambient light detection (ALD)
  • Works with up to 10 Pico remote controls, 1 Radio Powr Savr daylight sensor, and 10 Radio Powr Savr PIR sensors
Sensing Range, Maximum 900
Sensing Range, Minimum 400
Sensor Yes
Standard UL, cUL, Title 20/24 certified
Operating Temperature, Maximum 104 °F
Operating Temperature, Minimum 32 °F
Environmental Conditions 0 to 90% humidity, non-condensing. Indoor use only.
Load 8 A/0-10VDC
Supply Voltage 120 to 277
Type Occupancy/Vacancy sensor dimmer, multi-location/3-way/single-pole, 0-10 V
Application Lighting Control
Enclosure Plastic
Body Plastic
Mounting Wallbox

Product dimensions

  • Width:

    2.4 IN

  • Height:

    2.4 IN

  • Depth:

    4.5 IN

  • Weight:

    0.25 LBS
