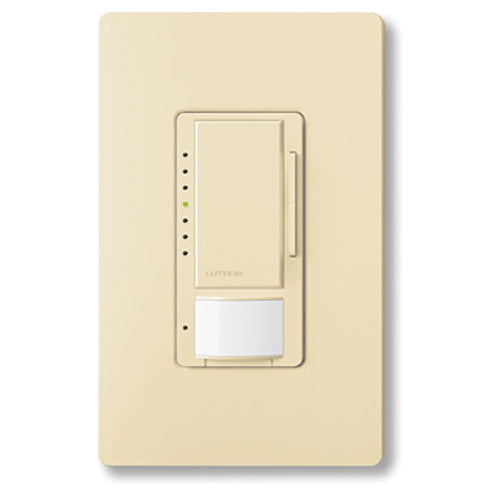

Lutron Vive Maestro 0–10V Occupancy/Vacancy Sensor Dimmer, 8A Switching, 50mA Sink, 120/277V, MRF2S-8SD010-IV, Ivory
- ROCK SKU: LUT-MRF2S-8SD010-IV
- UPC: 784276262187
- MFG Part #: MRF2S-8SD010-IV
Estimated Lead Time: 2-3 weeks
Product dimensions
-
Width:
2.25 IN
-
Height:
4.5 IN
-
Depth:
2.25 IN
-
Weight:
0.37 LBS
Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an occupancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert
- Controls 0 -10 V- electronic fluorescent ballasts or LED driver load types
- Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection
- 180 deg sensor field-of-view
- Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
- Occupancy version can be set to auto-on/auto-off or manual-on/auto-off
- Adjustable timeout (1, 5, 15, or 30 minutes). Adjustable settings for auto-on light level(occupancy): Adjustable from 1%-100%. Adjustable settings for auto-off light level (vacancy): Adjustable from 0%-100%. Adjustable sensitivity: High, Med, Low, Min.
- Off warning fades lights to off over a period of 10 seconds
- Adaptive switching algorithm for extended relay life
- Smart ambient light detection (ALD)
| Application | Lighting Control |
| Body | Plastic |
| Enclosure | Plastic |
| Type | Occupancy/Vacancy sensor dimmer, multi-location/3-way/single-pole, 0-10 V |
| Standard | UL, cUL, Title 20/24 certified |
| Supply Voltage | 120 to 277 |
| Operating Temperature, Maximum | 104.00 |
| Operating Temperature, Minimum | 32.00 |
| Sensor | Yes |
| Sensing Range, Maximum | 900 |
| Sensing Range, Minimum | 400 |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Load | 8 A/0-10VDC |
| Mounting | Wallbox |
Product dimensions
-
Width:
2.25 IN
-
Height:
4.5 IN
-
Depth:
2.25 IN
-
Weight:
0.37 LBS
