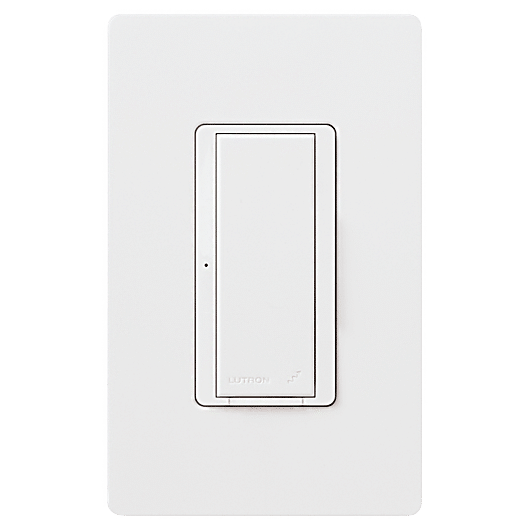

Lutron Vive 120V-277V, 8A, Single Pole/Multi-Location Digital Switch, White, MRF2S-8S-DV-WH
- ROCK SKU: LUT-MRF2S-8S-DV-WH
- UPC: 784276148658
- MFG Part #: MRF2S-8S-DV-WH
Estimated Lead Time: 2-3 weeks
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.29 LBS
Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A (1/10 HP) general-purpose fans and motor loads @ 120 V only. Tap switch on/off. For multi-location switching, use one Maestro Wireless switch with companion switches or Pico wireless remotes.
- The Maestro Wireless solution provides dimming/switching of multiple load types, occupancy/vacancy sensing, daylight harvesting, and high-end trim
- Lutron patented Clear Connect RF Technology works through walls and floors.
- Incorporates advanced features such as fade ON/fade OFF, high-end trim, and rapid full-ON
- Controls include Front Accessible Service Switch (FASS) for safe lamp replacement.
- Two-wire dimmers and switches available for retrofit applications
- Power failure memory: If power is interrupted, the control will return to its previously set level prior to interruption
| Family Color | White |
| Connection | Screwed Terminal |
| Contact Configuration | N-O |
| Contact Rating | 8/3 |
| Enclosure | Plastic |
| Material | Plastic |
| Standard | UL, CSA, FCC, ICC |
| Voltage Rating | 120 to 277 |
| Actuator | Tapswitch |
| Application | Lighting Control |
| Insulation | Plastic |
| Material Quality | Plastic/Metal |
| Mounting | Wallbox |
| Model | Wireless electronic switch, multi-location/single-pole, spec grade |
| Wattage | 2216 W/831 W |
| Amperage Rating | 8/3 |
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.29 LBS
