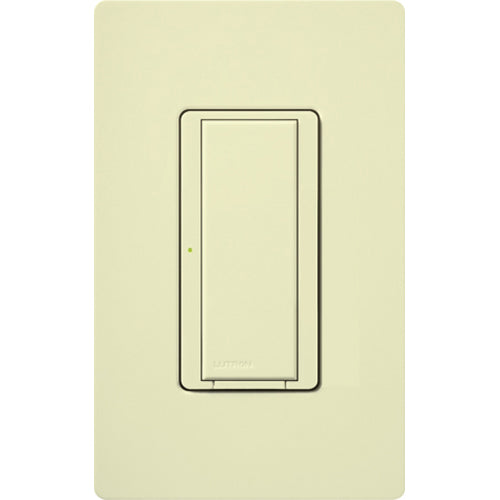

Lutron Vive Maestro Wireless Switch, 8A Light/3A Fan, Single Pole/Maestro, No Neutral Required, 120-277V, MRF2S-8S-DV-AL, Almond
- ROCK SKU: LUT-MRF2S-8S-DV-AL
- UPC: 784276148672
- MFG Part #: MRF2S-8S-DV-AL
Estimated Lead Time: 2-3 weeks
Product dimensions
-
Width:
2.3IN
-
Height:
4.5IN
-
Depth:
2.3IN
-
Weight:
0.29LBS
Maestro Wireless Switch, Incandescent/Halogen, Magnetic Low-Voltage, Electronic Low-Voltage, Non-Dim Fluorescent, Specification grade, multi-location/single-pole, 120V/8A light or 3A fan or 1/4 HP motor 277V/8A light or 3A fan in almond Vive enabled
- The Maestro Wireless solution provides dimming / switching of multiple load types, occupancy/vacancy sensing, and daylight harvesting.
- Lutron patented Clear Connect RF Technology works through walls and floors.
- Incorporates advanced features such as fade ON / fade OFF, high-end trim, and rapid full-ON (a Vive hub is required to set high-end trim).
- Controls include Front Accessible Service Switch (FASS) for safe lamp replacement.
- Two-wire dimmers and switches available for retrofit applications.
- Power failure memory: If power is interrupted, the control will return to its previously set level prior to interruption
| Actuator | Tapswitch |
| Contact Rating | 8 / 3 |
| Enclosure | Plastic |
| Connection | Screwed Terminal |
| Voltage Rating | 120 to 277 |
| Contact Configuration | N-O |
| Application | Lighting Control |
| Decorative Color | Almond |
| Standard | UL, CSA, FCC, ICC |
| Material | Metal / Plastic |
| Insulation | Plastic |
| Amperage Rating | 8 / 3 |
| Model | Wireless electronic switch, multi-location / single-pole, spec grade |
| Family Color | Almond |
| Wattage | 2216 / 831 |
Product dimensions
-
Width:
2.3IN
-
Height:
4.5IN
-
Depth:
2.3IN
-
Weight:
0.29LBS
