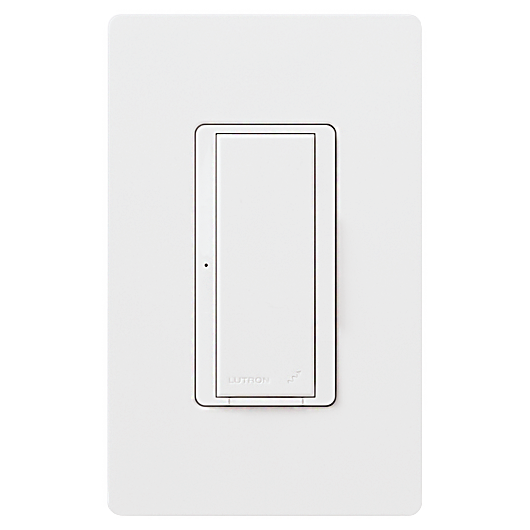

Lutron Maestro Wireless Switch, Incandescent/Halogen, Magnetic Low-Voltage, Electronic Low-Voltage, Non-Dim Fluorescent, Specification Grade, Multi-Location/Single-Pole, 120V/8A Light or 5.8 A Fan, Vive Enabled, White, MRF2S-8ANS120-WH
- ROCK SKU: LUT-MRF2S-8ANS120-WH
- UPC: 784276148399
- MFG Part #: MRF2S-8ANS120-WH
In Stock and Ready to Ship
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.29 LBS
Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 5.8 A (1/4 HP) general-purpose fans and motor loads. Tap switch on/off. For multi-location switching, use one Maestro Wireless switch with companion switches or Pico wireless remotes.
- The Maestro Wireless solution provides dimming/switching of multiple load types, occupancy/vacancy sensing, daylight harvesting, and high-end trim
- Lutron patented Clear Connect RF Technology works through walls and floors.
- Incorporates advanced features such as fade ON/fade OFF, high-end trim, and rapid full-ON
- Controls include Front Accessible Service Switch (FASS) for safe lamp replacement.
- Two-wire dimmers and switches available for retrofit applications
- Power failure memory: If power is interrupted, the control will return to its previously set level prior to interruption
Actuator | Tapswitch |
Material | Plastic |
Enclosure | Plastic |
Contact Rating | 8/5.8 |
Connection | Screwed Terminal |
Contact Configuration | N-O |
Family Color | White |
Application | Lighting Control |
Standard | UL, CSA, FCC, ICC |
Voltage Rating | 120 |
Amperage Rating | 8/5.8 |
Material Quality | Plastic/Metal |
Insulation | Plastic |
Mounting | Wallbox |
Model | Wireless electronic switch, multi-location/single-pole, spec grade |
Wattage | 960 W/46.4 W |
Product dimensions
-
Width:
2.3 IN
-
Height:
2.3 IN
-
Depth:
4.5 IN
-
Weight:
0.29 LBS
