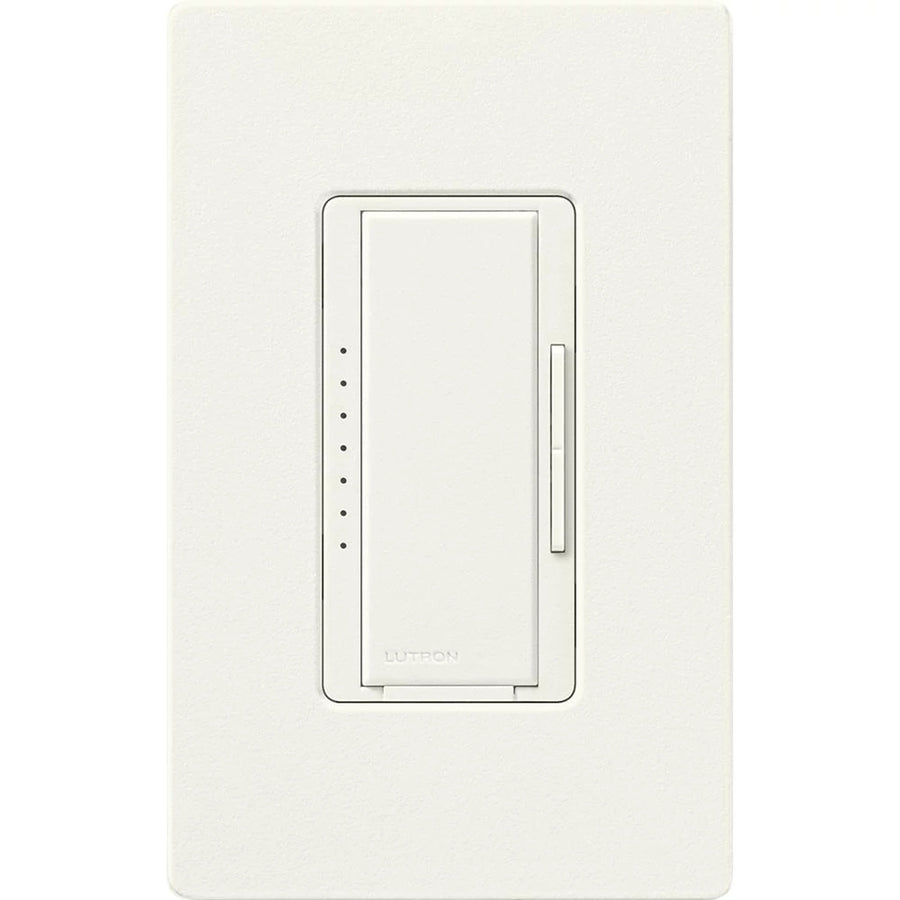

Lutron Maestro PRO LED+ Dimmer Switch, 250W LED/500W ELV/400VA MLV, Neutral Optional, Single Pole/Multi-Location, 120V, MA-PRO-BI, Biscuit
- ROCK SKU: LUT-MA-PRO-BI
- UPC: 784276261524
- MFG Part #: MA-PRO-BI
$95.50
$71.50
Estimated Lead Time: 8-9 weeks
Product dimensions
-
Width:
2.25 IN
-
Height:
2.25 IN
-
Depth:
4.5 IN
-
Weight:
0.27 LBS
Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Provides true dimming from each location (with companion dimmers). Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
- Maximum Rating: 250W LED, 500W Incandescent / Halogen/ ELV, 400VA MLV, or 20 Hi-Lume 1% 2-Wire (LTE) LED Drivers
- Neutral Optional for LED, CFL, and Incandescent/Halogen; Neutral Required for ELV, MLV, dimmable fluorescent ballasts, and Hi-Lume 1% LED drivers
- Single pole or multi-location dimming from up to 9 locations with companion dimmer (MSC-AD-xx sold-separately)
- Advanced Programming Mode allows users to customize the controls preset light level, high- and low-end trims, disable indicator lights, fade times, and phase select

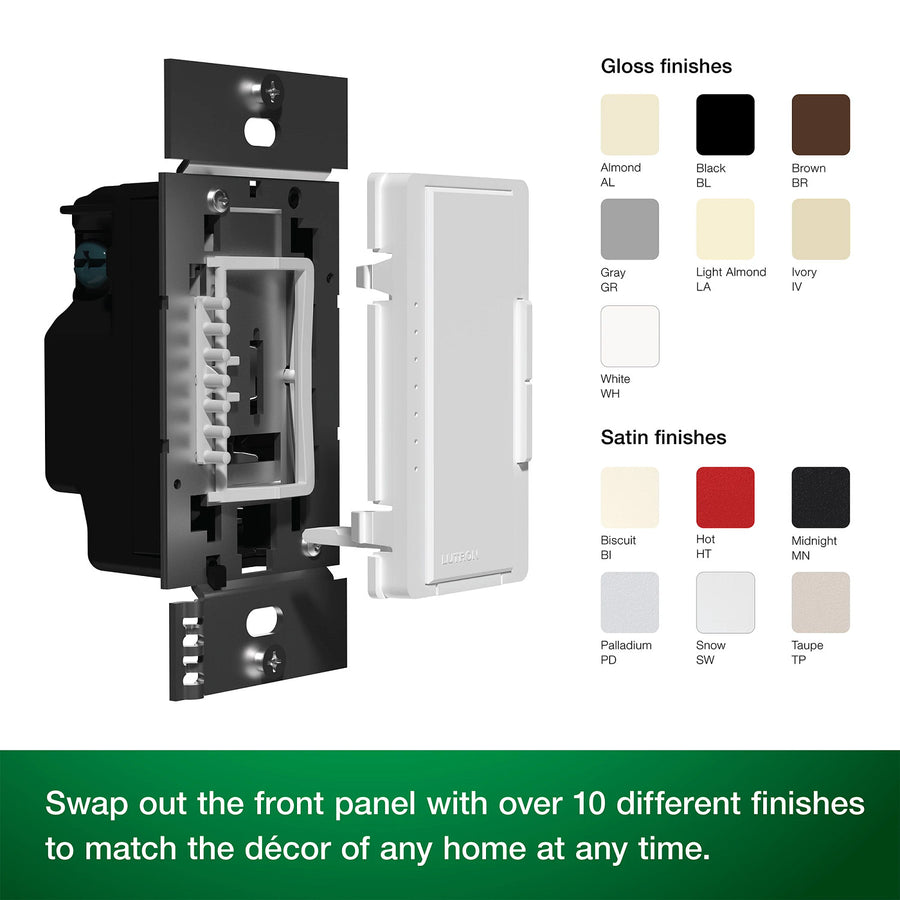

- Interchangeable color kits available for front panel (color change kit MK-D sold separately)
- Phase Auto-Select: Chooses between either reverse or forward phase (When neutral is connected the automatic default is reverse phase; When neutral is not connected, the automatic default is forward phase)
- Power failure memory; Should power be interrupted, the control will return to its previous state when power is restored

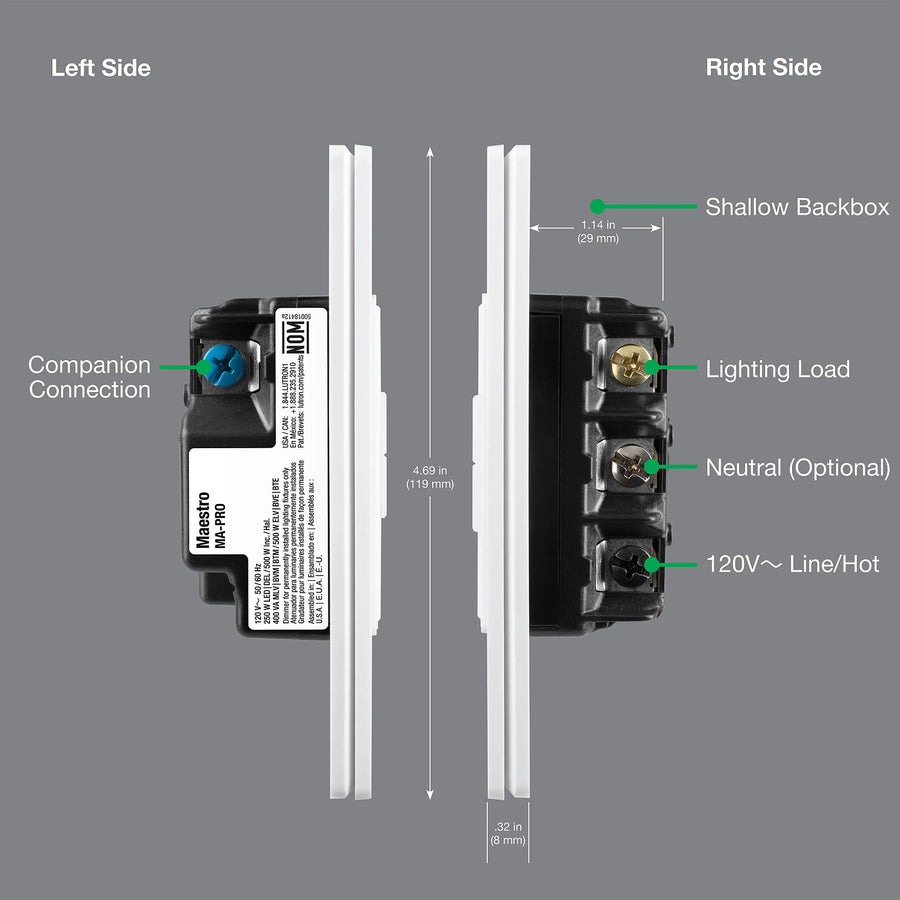

- Screw Terminals for easy install; Can be installed on either load or line side of circuit
- While load is on: Green indicator lights brighten and reflect light level; When load is off: Indicator lights remain in a soft glow state
- Maestro PRO LED+ dimmers and wall plates are available in 10+ colors (wall plate sold separately)
| Frequency Rating, Minimum | 50 |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Connection Type | Screw Terminal |
| Decorative Color | Biscuit |
| Application | Lighting Control |
| Switch Type | Tapswitch |
| Voltage Rating | 120 |
| Type | Digital fade dimmer, multi-location/3-way/single-pole |
| Standard | UL, CSA, NOM |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Face Material | Metal;Plastic |
| Wattage | 600 W |
Product dimensions
-
Width:
2.25 IN
-
Height:
2.25 IN
-
Depth:
4.5 IN
-
Weight:
0.27 LBS
