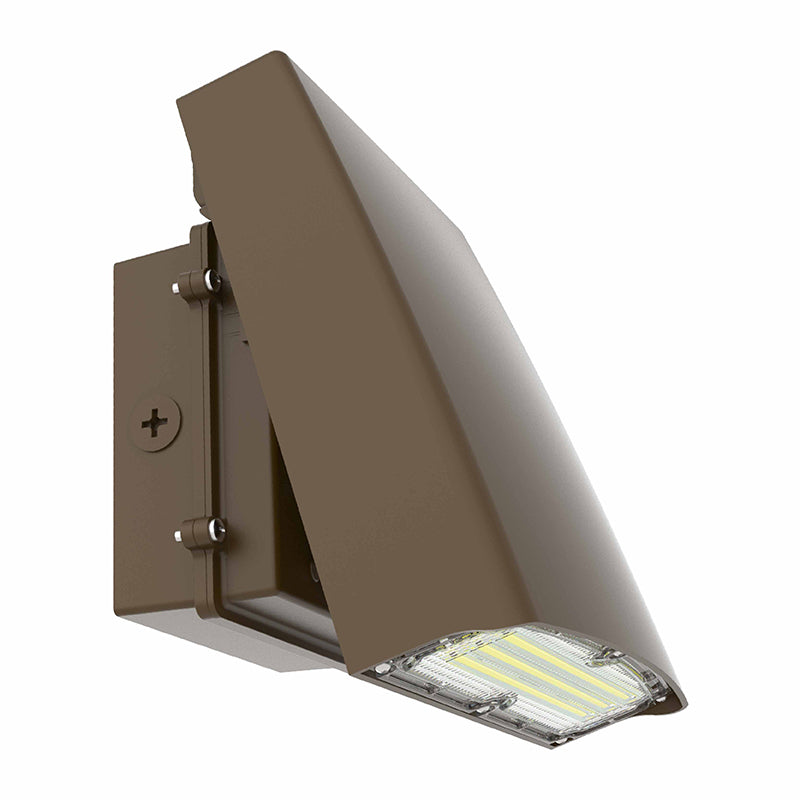

Westgate Mfg X-Gen Pro LWAX Medium Adjustable Cut-Off Wall Pack, 20/30/40/50W, CCT Selectable, 0-10V, Bronze, LWAX-MD-20-50W-MCTP
- ROCK SKU: WES-LWAX-MD-20-50W-MCTP
- UPC: 845060072860
- MFG Part #: LWAX-MD-20-50W-MCTP
$190.78
$108.43
The Westgate Mfg LWAX-MD-20-50W-MCTP is an X-Gen Pro medium-housing adjustable-head cut-off LED wall pack suited for commercial building exteriors, entryways, and covered walkways in bronze finish. Field-adjustable wattage of 20/30/40/50W using Lumileds Lexeon 3030 high-flux LEDs delivers up to 125 lm/W with CCT selectability (3000K–5700K), 0-10V dimming, and a BUG rating of B2-U2-G1. UL listed and DLC Premium qualified with IP65 protection and a 7-year warranty on 120–277V.
| Watts | 20/30/40/50W (Field-Adjustable) |
| Lumens | 2,500–6,250 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K/5700K) |
| Voltage | 120-277V |
| Dimming | 0-10V Dimmable |
| IP Rating | IP65 |
| Rated Life | 50,000 hr |
| Finish | Bronze |
| Listings | UL, DLC Premium |
| BUG Rating | B2-U2-G1 |
| Warranty | 7 Years |
