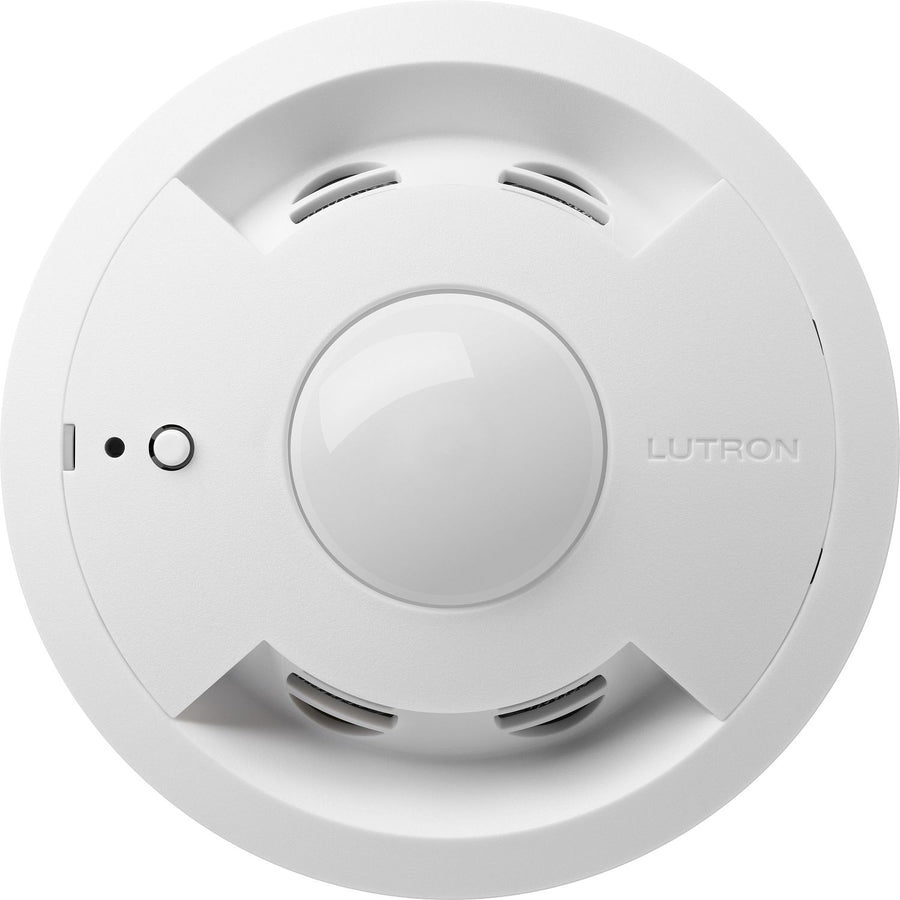

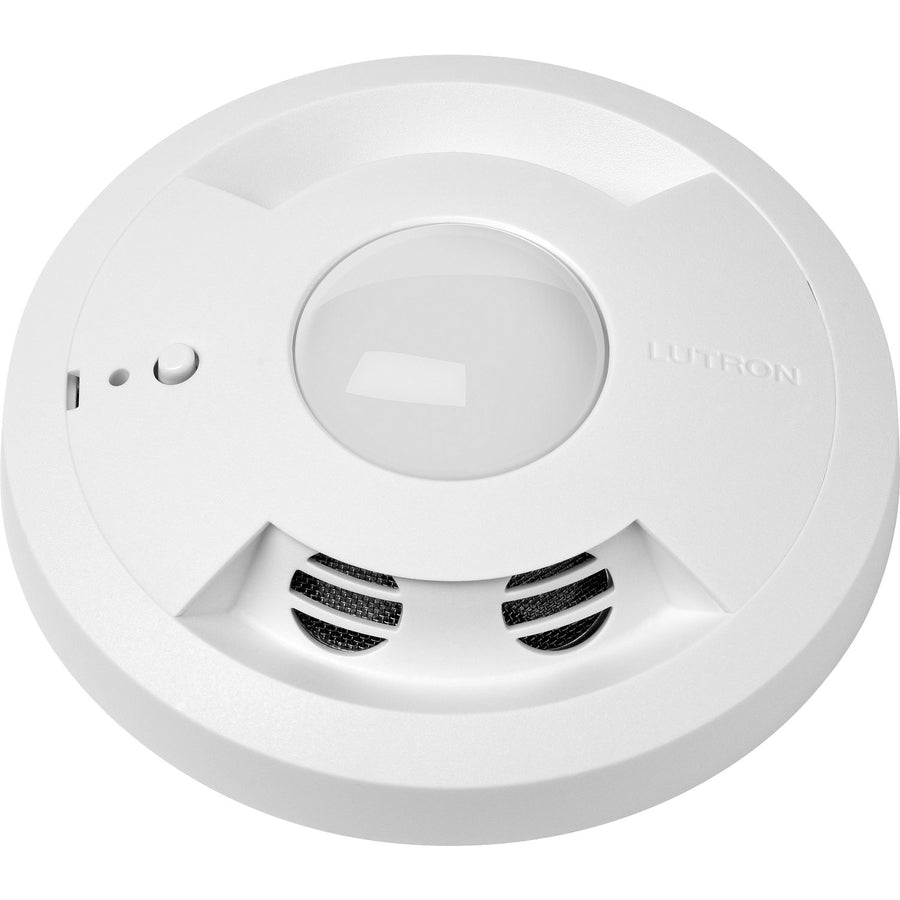

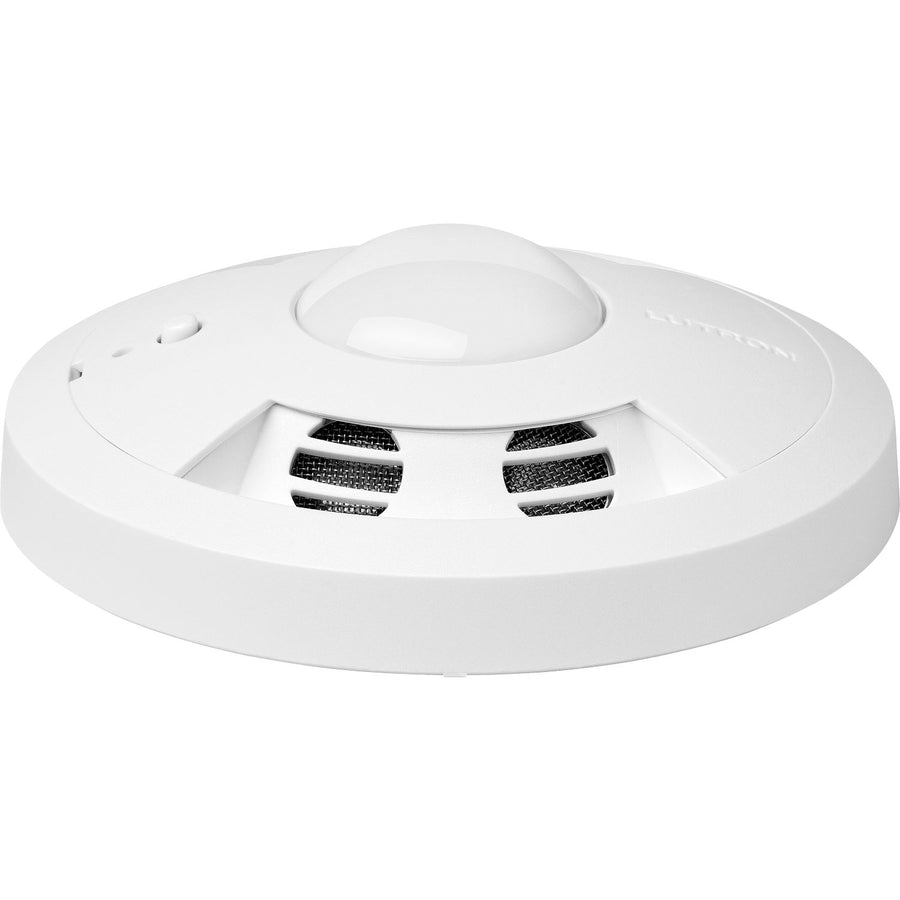

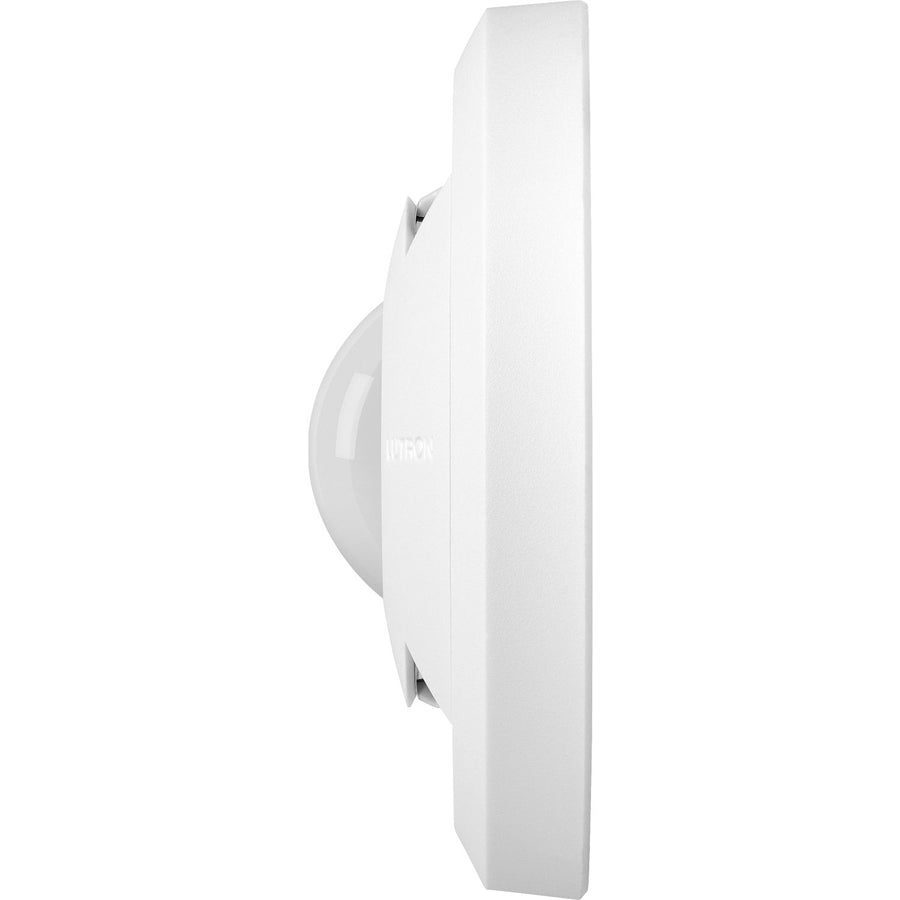

Lutron LOS2 Ceiling-Mount Occupancy Sensor, Dual Technology, 2000 Sq Ft, 360°, BAA Compliant, White, ULOS2-CDT-WH
- ROCK SKU: LUT-ULOS2-CDT-WH
- UPC: 784276817943
- MFG Part #: ULOS2-CDT-WH
$183.33
Estimated Lead Time: 0-2 weeks
The Lutron ULOS2-CDT-WH is a wired LOS2 Series ceiling-mount occupancy sensor. It combines passive infrared (PIR) and ultrasonic sensing and covers up to 2,000 sq ft with a 360° field of view (180° selectable). This is the BAA (Buy American Act) compliant version, in white.
- Ratings: 15–24 V DC, NEC Class 2 / IEC PELV/SELV, 35 mA
- Rated coverage based on 8–12 ft ceiling height; reduce coverage by 15% in “soft” rooms

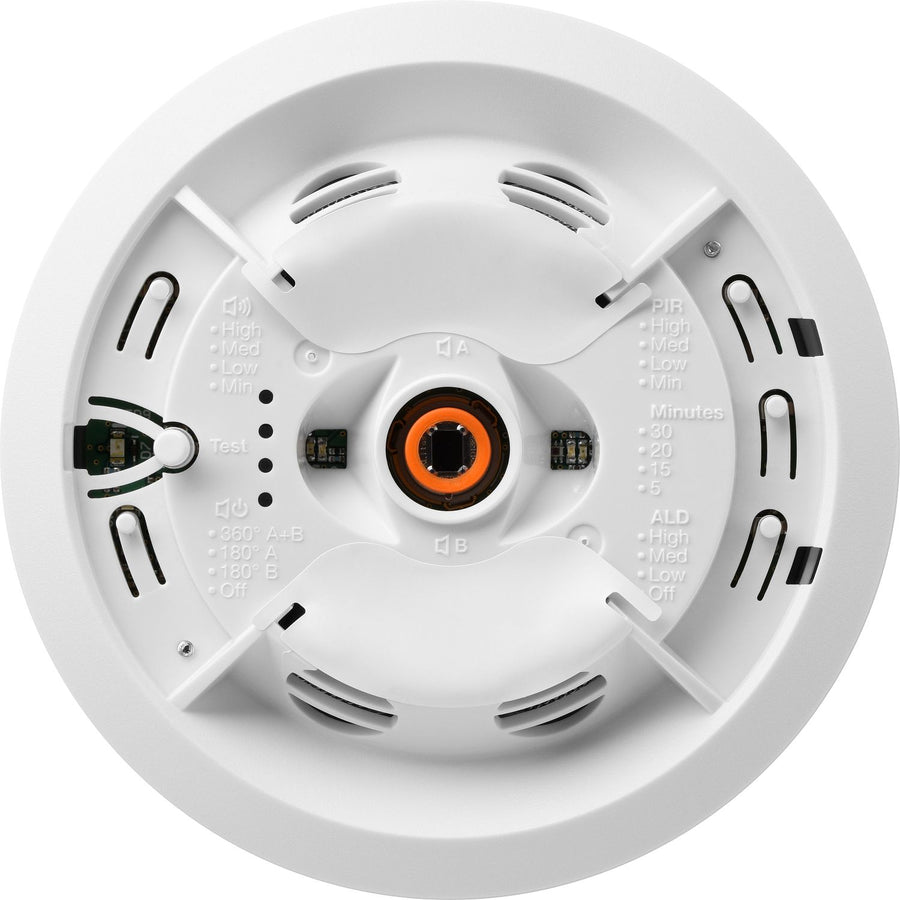

- Adjustable timeout: 1, 5, 8, 15 (default), 20 or 30 minutes
- Works with Lutron power packs (-DV or -347H, up to 3 sensors per power pack) or a lighting control system
- California Title 24 compliant. For indoor use only.
| Sensor Type | Dual Technology (Passive Infrared + Ultrasonic) |
| Coverage | Up to 2000 Sq Ft |
| Field of View | 360° (180° selectable) |
| Mount Type | Ceiling Mount (8–12 ft ceiling) |
| Voltage | 15–24 V DC, NEC Class 2 |
| Current Draw | 35 mA |
| Timeout | 1, 5, 8, 15 (default), 20, 30 min |
| Compliance | BAA Compliant; California Title 24 |
| Location | Indoor Only |
| Finish | White |
