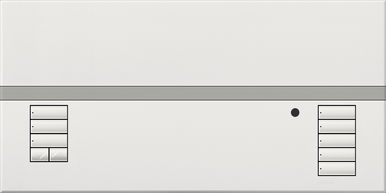

Lutron GRAFIK Eye QS Wireless, 3-Zone, 1 Shade Column, White, QSGRJ-3P-1WH
- ROCK SKU: LUT-QSGRJ-3P-1WH
- UPC: 027557641487
- MFG Part #: QSGRJ-3P-1WH
Contact us for pricing
The Lutron QSGRJ-3P-1WH is a GRAFIK Eye QS Wireless 3-zone main unit with 1 shade column and opaque white cover, suited for commercial and residential lighting control on 120–127V or 220–240V. It supports up to six zones of light and is compatible with incandescent, LED/CFL, tungsten halogen, electronic low-voltage, magnetic low-voltage, metal halide/HPS switched, neon/cold cathode, and Lutron Tu-Wire electronic fluorescent dimming ballast loads. Dimming follows a continuous Square Law curve via 434 MHz wireless communication, with full conduction non-dim capability also supported.
| Zones | 3 (up to 6 light zones) |
| Voltage | 120-127V or 220-240V |
| Control Type | TRIAC Dimming, Wireless (434 MHz) |
| Load Types | Incandescent, LED/CFL, Tungsten Halogen, ELV, MLV, Metal Halide/HPS, Neon/Cold Cathode, Fluorescent |
| Faceplate | 1 Shade Column, Opaque White Cover |
| Dimming Curve | Square Law or Non-Dim |
