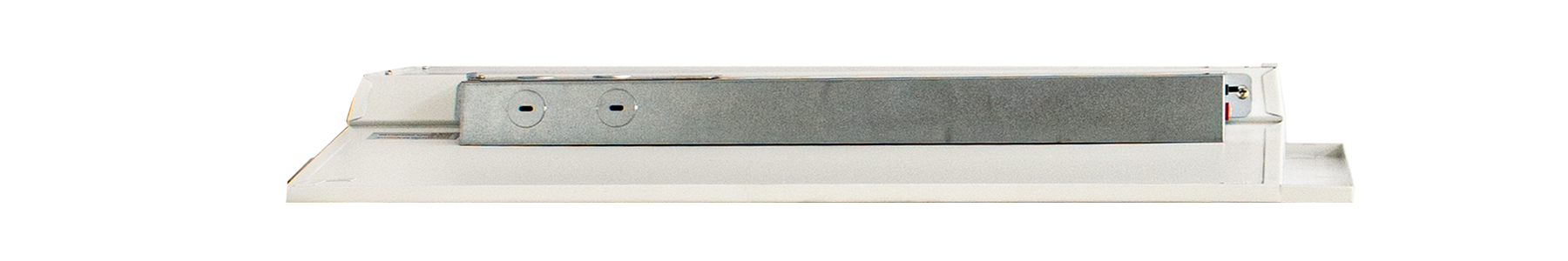

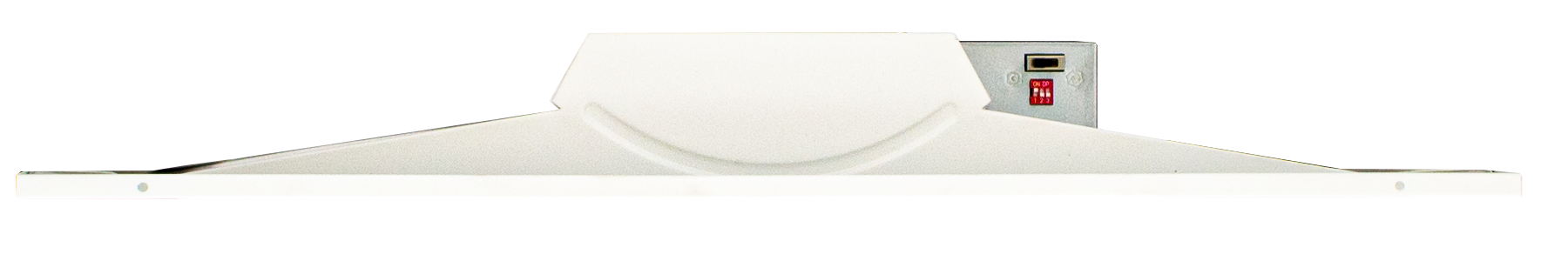

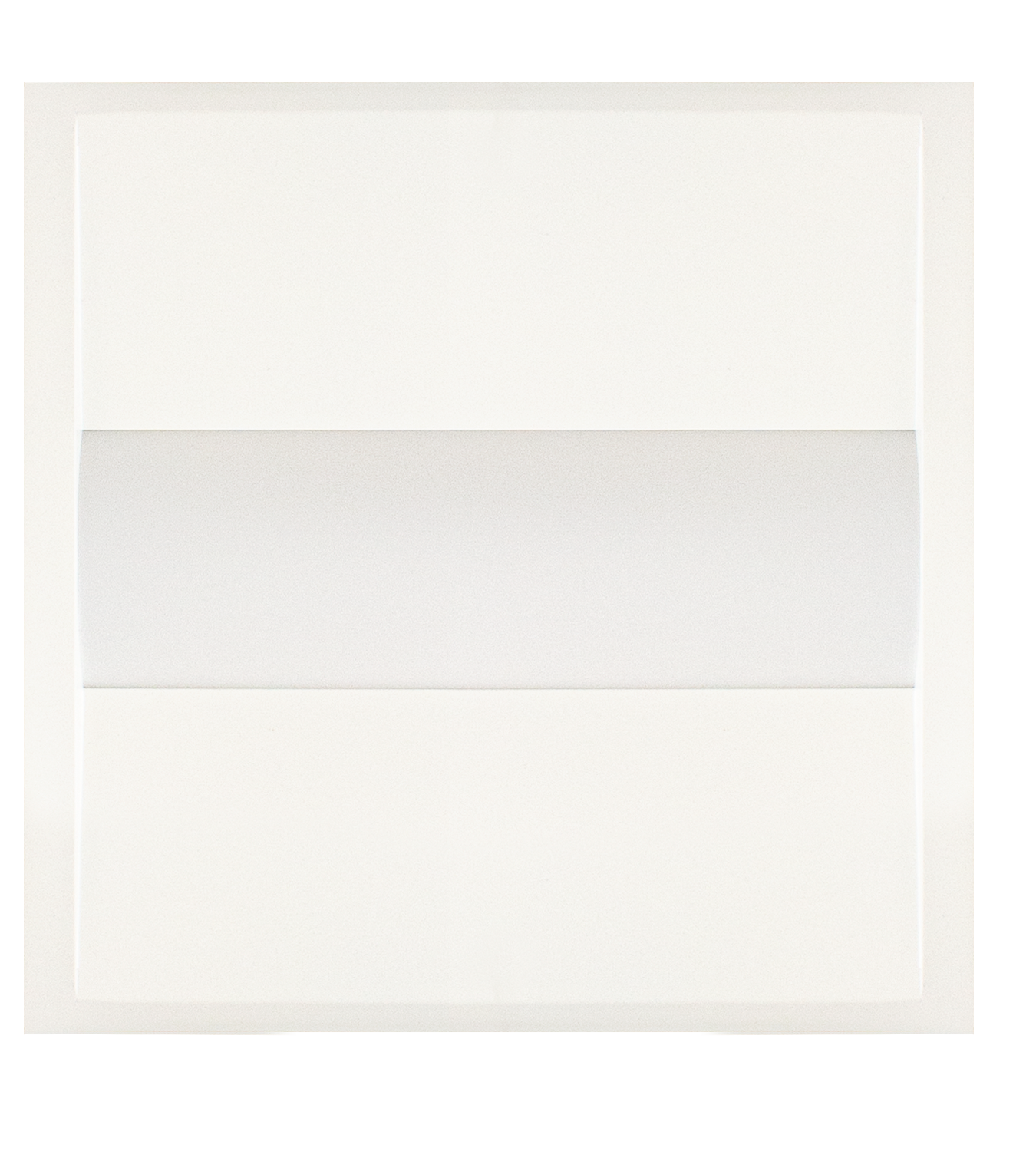

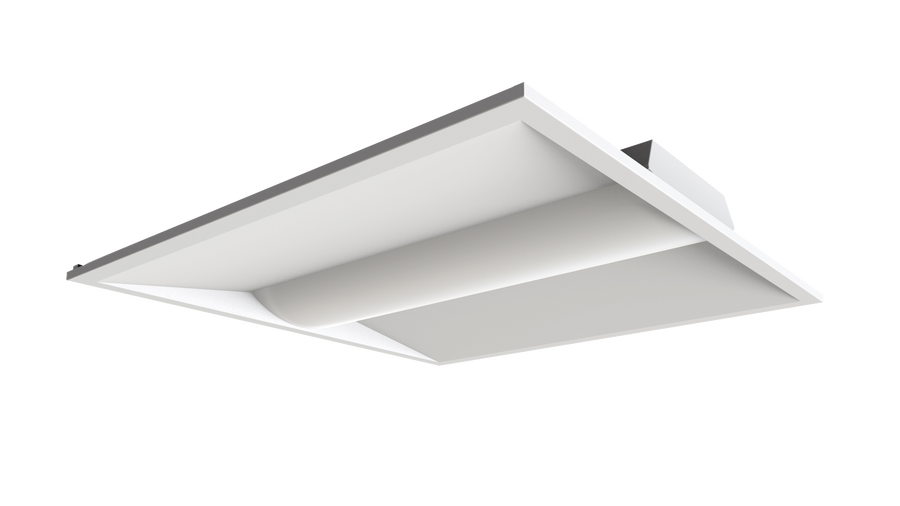

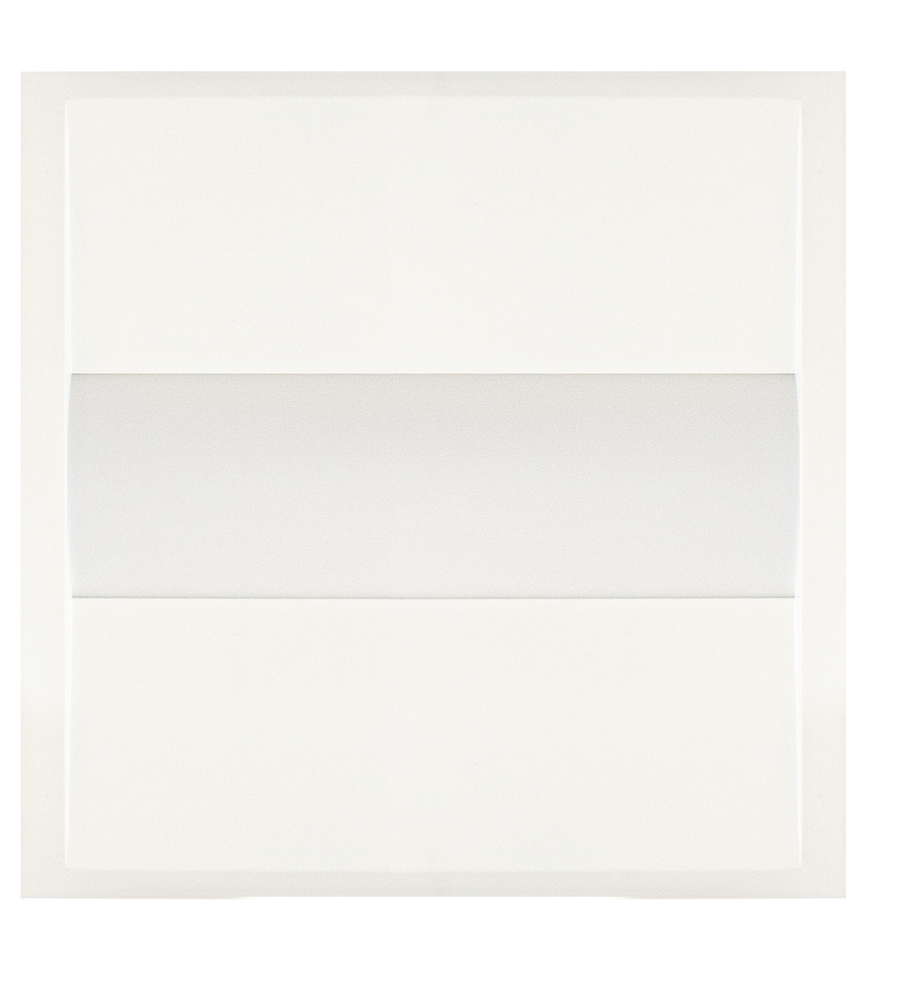

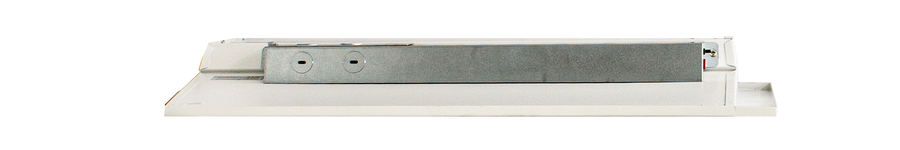

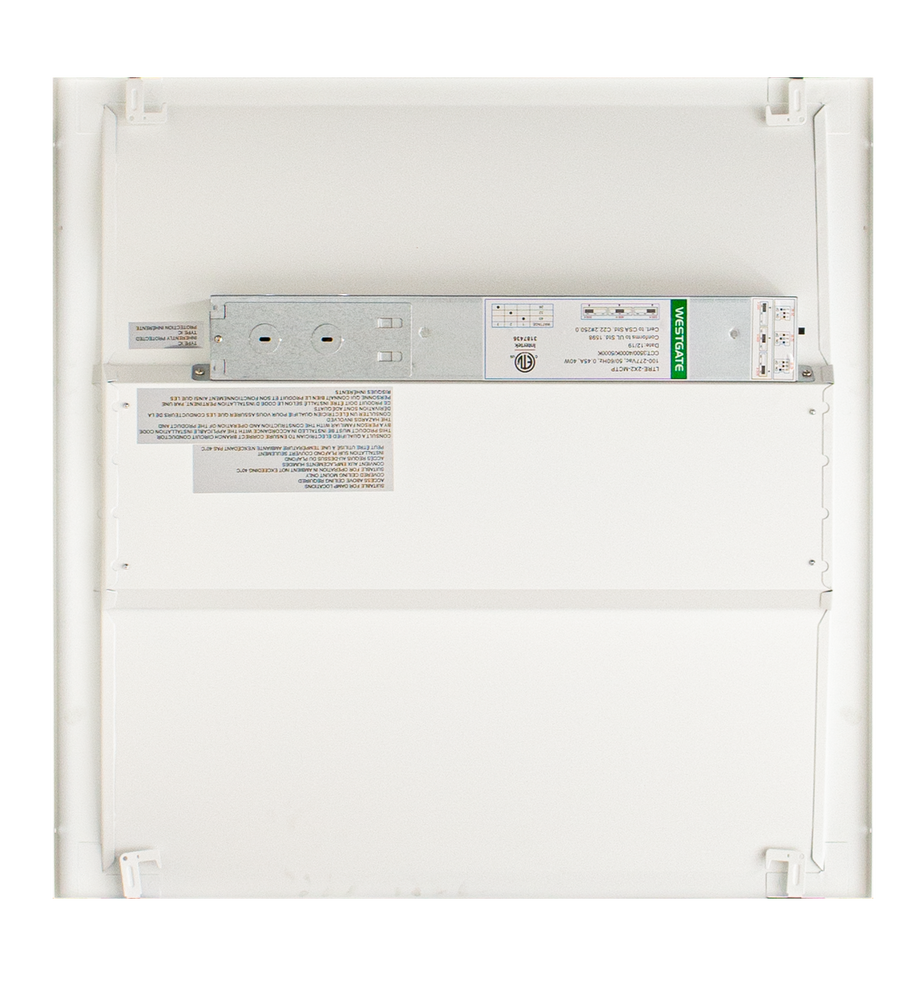

Westgate Mfg LTRE 2X2 LED Troffer, 26/32/40W, CCT Selectable, 0-10V, White, LTRE-2X2-MCTP
- ROCK SKU: WES-LTRE-2X2-MCTP
- UPC: 845060054231
- MFG Part #: LTRE-2X2-MCTP
$114.78
$77.00
The Westgate Mfg LTRE-2X2-MCTP is a 2x2 LED troffer with selectable color temperature and wattage for drop-ceiling commercial, office, and institutional installations. Field-selectable wattage of 26W, 32W, or 40W with CCT options of 3500K, 4000K, or 5000K delivers 125 lm/W efficacy from a cold-rolled steel housing with polycarbonate lens. 0–10V dimming, a power factor of 0.97, THD below 20%, and 120–277V universal voltage ensure compatibility with commercial dimming and control systems. UL listed with IP20 rating, 50,000-hour rated life, and a 5-year warranty. White finish.
| Watts | 26/32/40W (Field-Adjustable) |
| Lumens | 3,250–5,000 lm |
| Color Temperature | CCT Selectable (3500K/4000K/5000K) |
| Voltage | 120-277V |
| Dimming | 0-10V Dimmable |
| CRI | >80 |
| Rated Life | 50,000 hr |
| IP Rating | IP20 |
| BUG Rating | B1-U3-G1 |
| Finish | White |
| Listings | UL |
