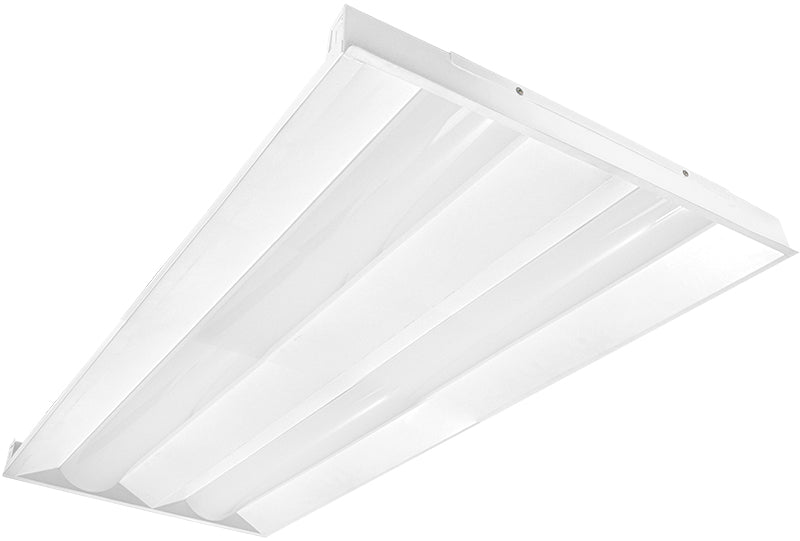

Westgate Mfg LTRD 2X4 Dual Lens Troffer, 30/40/50W, CCT Selectable, 0-10V, White, LTRD-2X4-MCTP
- ROCK SKU: WES-LTRD-2X4-MCTP
- UPC: 845060062717
- MFG Part #: LTRD-2X4-MCTP
$190.78
$168.74
The Westgate Mfg LTRD-2X4-MCTP is a 2x4 dual-lens LED troffer designed for drop-ceiling commercial and institutional applications requiring high-efficacy, uniform illumination. Selectable wattage of 30W, 40W, or 50W with field-selectable CCT (3500K/4000K/5000K) delivers 125 lm/W efficacy through a polycarbonate lens on a pure aluminum heat sink chassis. 0–10V dimming, IP20 rating, and 120–277V universal voltage provide flexible installation across commercial electrical systems. UL and DLC listed with a 50,000-hour rated life and a 5-year warranty. White finish.
| Watts | 30/40/50W (Field-Adjustable) |
| Lumens | 3,750–6,250 lm |
| Color Temperature | CCT Selectable (3500K/4000K/5000K) |
| Voltage | 120-277V |
| Dimming | 0-10V Dimmable |
| CRI | >80 |
| Rated Life | 50,000 hr |
| IP Rating | IP20 |
| BUG Rating | B2-U3-G2 |
| Finish | White |
| Listings | UL, DLC |
