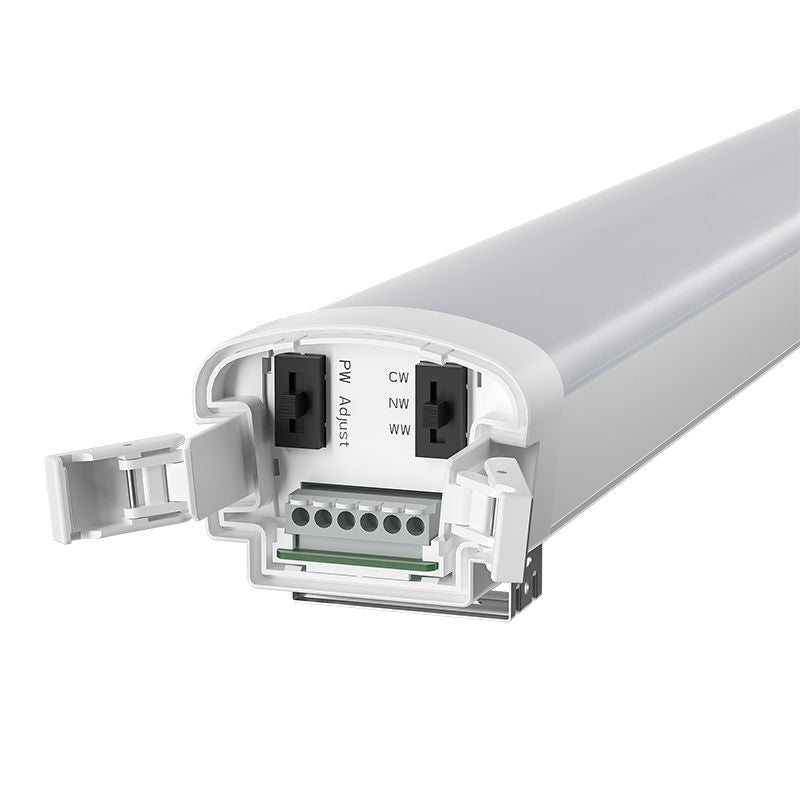

Westgate Mfg Tri-Proof Vapor-Tight, 4 ft, 20/28/36W, CCT Selectable, 0-10V, White, LTPV-4FT-36W-MCTP-D
- ROCK SKU: WES-LTPV-4FT-36W-MCTP-D
- UPC: 845060096538
- MFG Part #: LTPV-4FT-36W-MCTP-D
$106.78
$94.74
The Westgate Mfg LTPV-4FT-36W-MCTP-D is a 4-foot tri-proof LED vapor-tight fixture for wet, corrosive, and high-humidity installations such as parking structures, food processing areas, and industrial facilities, with selectable wattage at 20W, 28W, or 36W and field-selectable CCT of 3000K, 4000K, or 5000K. Powered by Lumileds SMD2835 LEDs, it delivers 130 lm/W with 0–10V dimming, CRI >80, and a 120° beam angle on 120–277V. ETL listed and DLC qualified, the IP65-rated polycarbonate housing supports linkable runs with a 5-year warranty and 50,000-hour rated life.
| Watts | 20/28/36W (Field-Adjustable) |
| Lumens | 2,600–4,680 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K) |
| CRI | >80 |
| Voltage | 120-277V |
| Dimming | 0-10V Dimmable |
| IP Rating | IP65 |
| Finish | White |
| Rated Life | 50,000 hr |
| Certifications | ETL, DLC |
