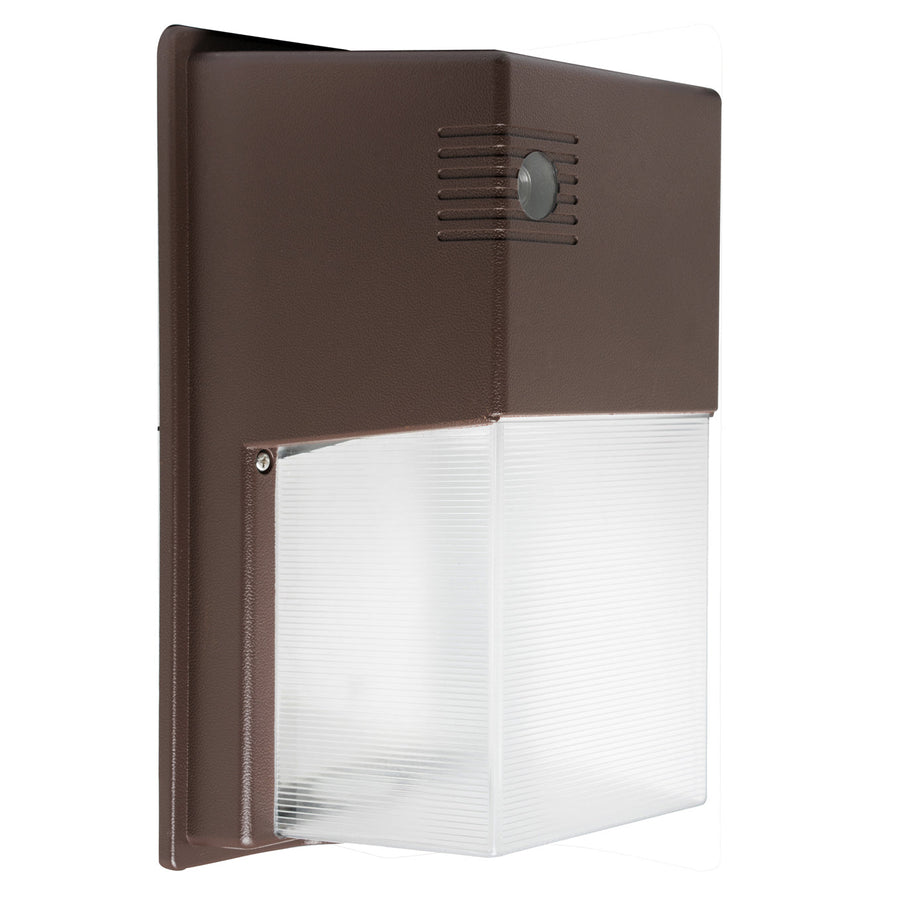

Westgate Mfg X-GEN Classic Wall Pack, 5/10/20/30W, 4000K, 0-10V, Photocell, Bronze, LSWX-5-30W-40K-PC
- ROCK SKU: WES-LSWX-5-30W-40K-PC
- UPC: 845060074253
- MFG Part #: LSWX-5-30W-40K-PC
$134.78
$59.86
The Westgate Mfg LSWX-5-30W-40K-PC is an X-GEN Classic LED wall pack designed for commercial building perimeters, parking structures, and entryways, offering selectable wattage at 5W, 10W, 20W, or 30W with an integrated photocell for automatic dusk-to-dawn operation. Delivering 124 lm/W at 4000K, the fixture supports 0–10V dimming across a 120–277V input range and carries a BUG rating of B1-U3-G1 to satisfy dark-sky and light-trespass requirements. UL listed and DLC Premium qualified, it is rated IP65 and built from die-cast aluminum in a bronze finish with a 7-year warranty and 50,000-hour rated life.
| Watts | 5/10/20/30W (Field-Adjustable) |
| Lumens | 620–3,720 lm |
| Color Temperature | 4000K |
| CRI | >70 |
| Voltage | 120-277V |
| Dimming | 0-10V Dimmable |
| IP Rating | IP65 |
| Finish | Bronze |
| Rated Life | 50,000 hr |
| Certifications | UL, DLC Premium |
