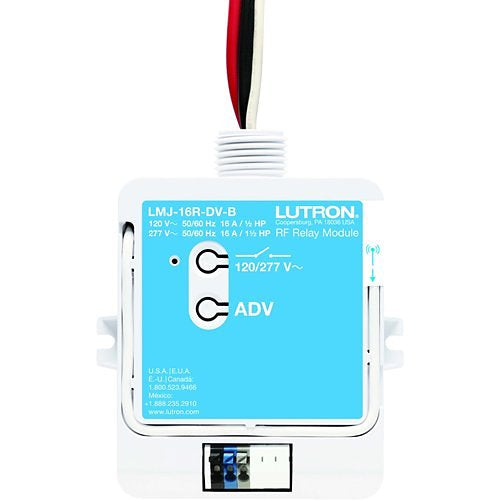

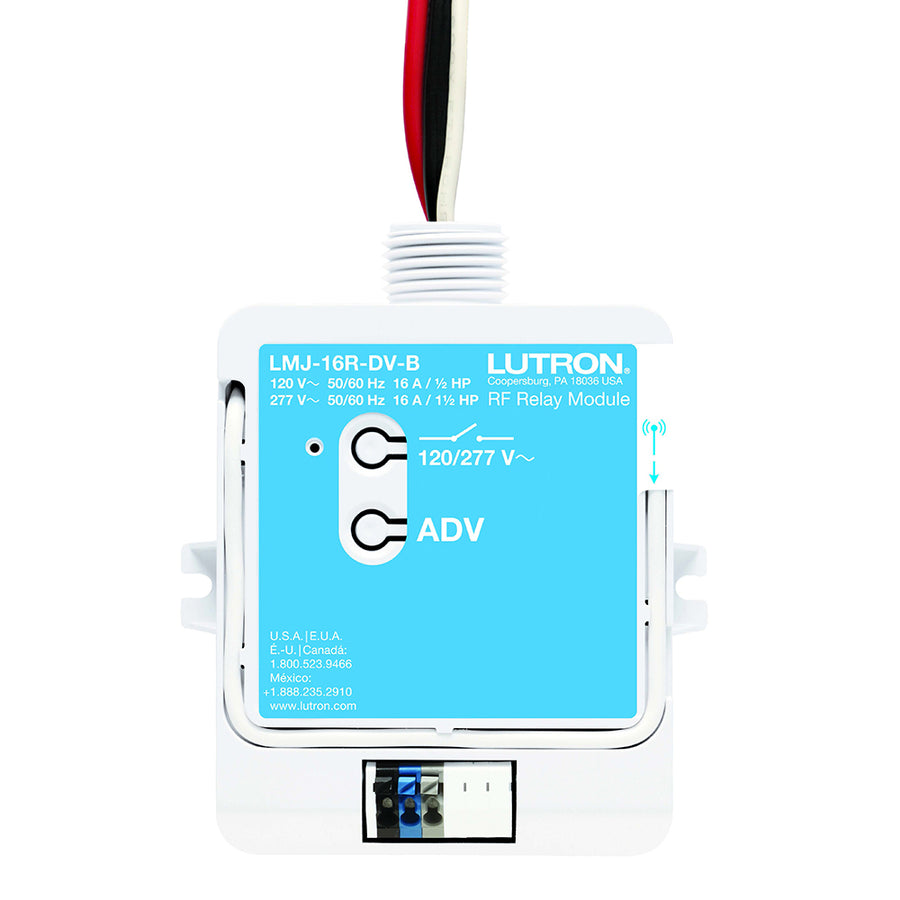

Lutron RF Relay Module with Softswitch, 16A Lighting/.5 HP(120V), 1.5 HP(277V) Motor, 120/277V, LMJ-16R-DV-B
- ROCK SKU: LUT-LMJ-16R-DV-B
- UPC: 784276070010
- MFG Part #: LMJ-16R-DV-B
Estimated Lead Time: 3-4 weeks
Product dimensions
-
Width:
3.6 IN
-
Height:
2.3 IN
-
Depth:
4.6 IN
-
Weight:
0.4 LBS
Radio frequency (RF) device that uses Lutron patented SoftSwitch technology to control up to 16 A of general-purpose loads based on input from RadioRA 2 and Homeworks systems. Softswitch technology prevents arcing of relay contacts, extending product lifetime. Various operating voltages available. Mounts to an electrical junction box through a 1/2 in or 21 mm trade-size knockout opening. Complies with requirements for use in a compartment handling environmental air (plenum) per NEC 2011 300.22(C)(3)
- Lutron patented Softswitch technology prevents arcing of relay contacts, extending product lifetime.
- Various operating voltages available.
- Capable of switching 16A of general-purpose loads.
- Utilizes Lutron Clear Connect RF technology.
- Mounts to an electrical junction box through a 1/2 in (21 mm trade-size) knockout opening.
- Complies with requirements for use in a compartment handling environmental air (plenum) per NEC 2011 300.22(C)(3)
| Amperage Rating | 16 |
| Contact Rating | 16 A/.5 HP@120/1.5 HP@277 V |
| Contact Configuration | N-O |
| Standard | UL, FCC, CSA, IC, NOM |
| Operating Temperature, Maximum | 104 °F |
| Operating Temperature, Minimum | 32 °F |
| Material | Plastic |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Enclosure | Plastic |
| Voltage Rating | 120 to 277 |
| Connection | Wire leads |
| Model | RF Relay Module with Softswitch |
| Mounting | Junction box |
| Material Quality | Plastic/Metal |
| Insulation | Plastic |
