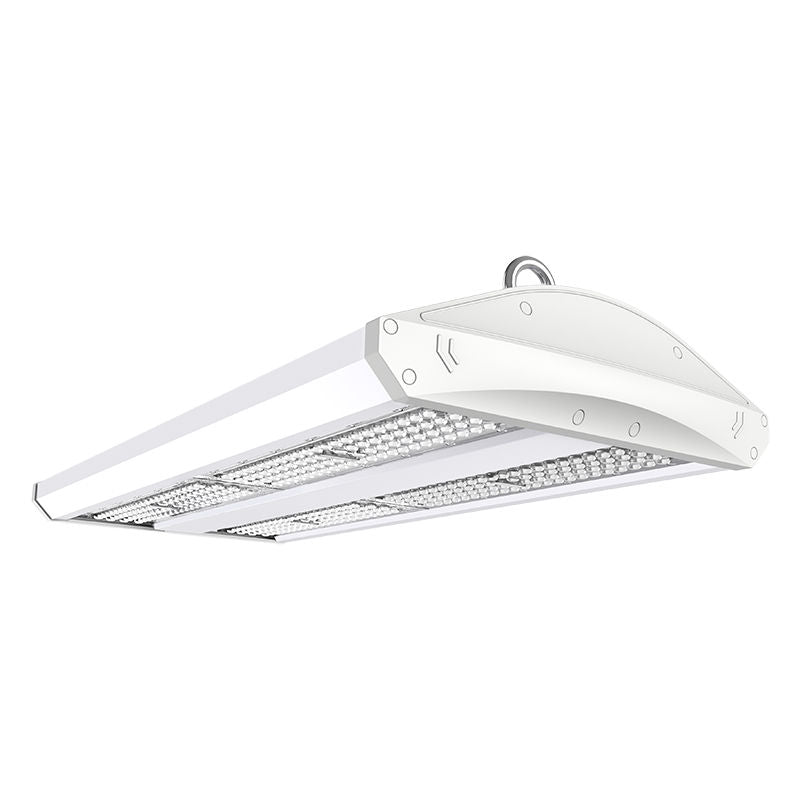

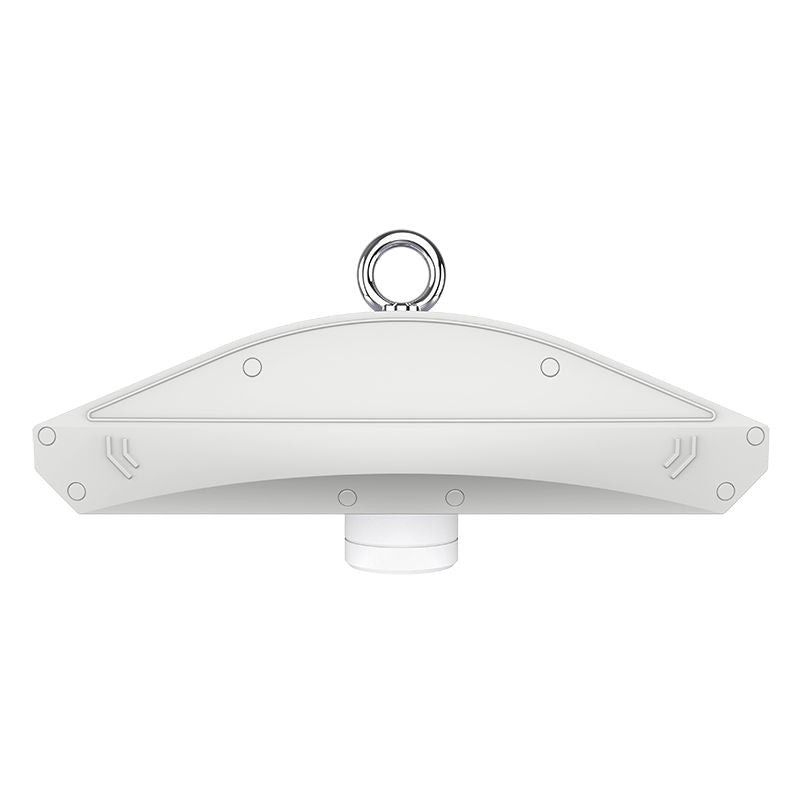

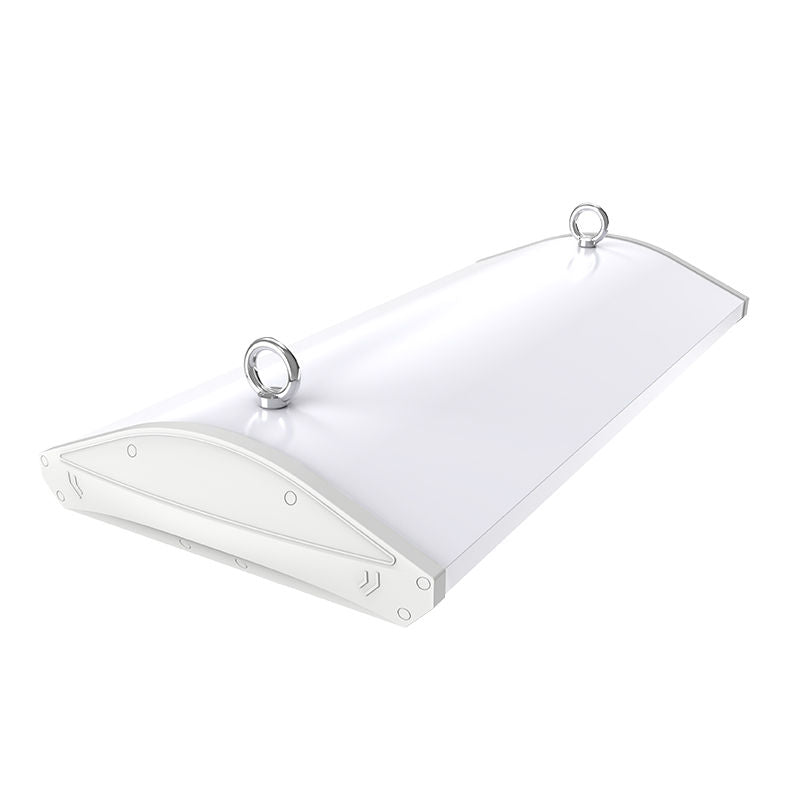

Westgate Mfg Linear NSF Food High Bay, 80/120/160W, CCT Selectable, 0-10V Dimming, IP69K, White, LLHBF-80-160W-MCTP-SR
- ROCK SKU: WES-LLHBF-80-160W-MCTP-SR
- UPC: 840378305037
- MFG Part #: LLHBF-80-160W-MCTP-SR
$282.78
$250.74

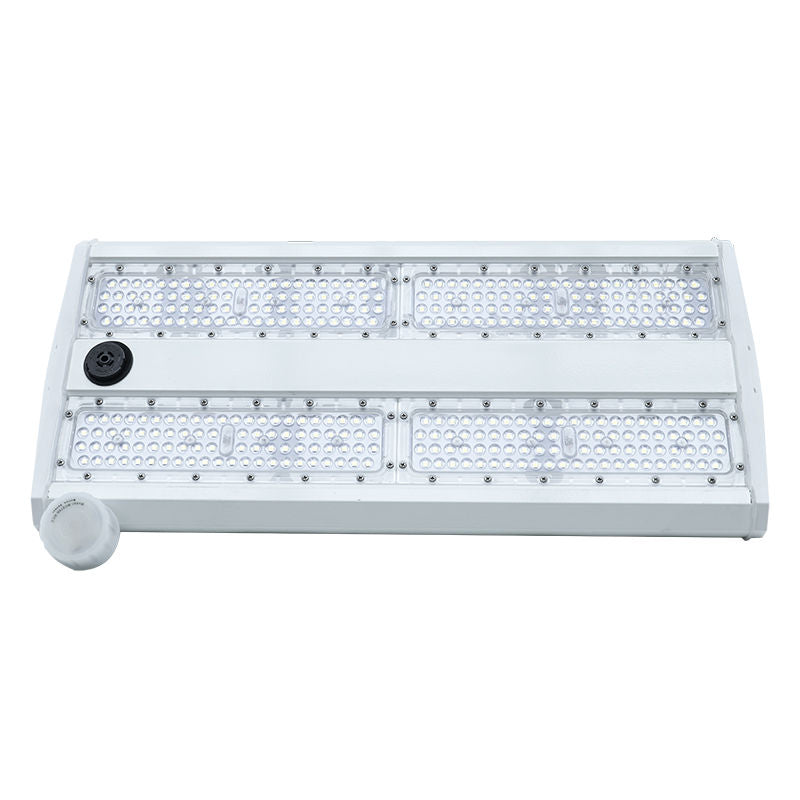

The Westgate Mfg LLHBF-80-160W-MCTP-SR is an 80/120/160W selectable-wattage NSF food-rated linear high bay engineered for food processing plants, commercial kitchens, and industrial wet locations subject to high-pressure washdown. Producing 150 lm/W across field-selectable 4000K, 4500K, or 5000K color temperatures, the fixture supports 0-10V dimming and includes a sensor-ready port for automated controls. IP69K-rated and compatible with 100–277V, it utilizes Lumileds 3030 LEDs and is UL and NSF listed with a 5-year warranty.
| Watts | 80/120/160W (Field-Adjustable) |
| Lumens | 12,000–24,000 lm |
| Color Temperature | CCT Selectable (4000K/4500K/5000K) |
| Voltage | 100-277V |
| Dimming | 0-10V |
| IP Rating | IP69K |
| Rated Life | 50,000 hours |
| Finish | White |
| Listings | UL, NSF |
