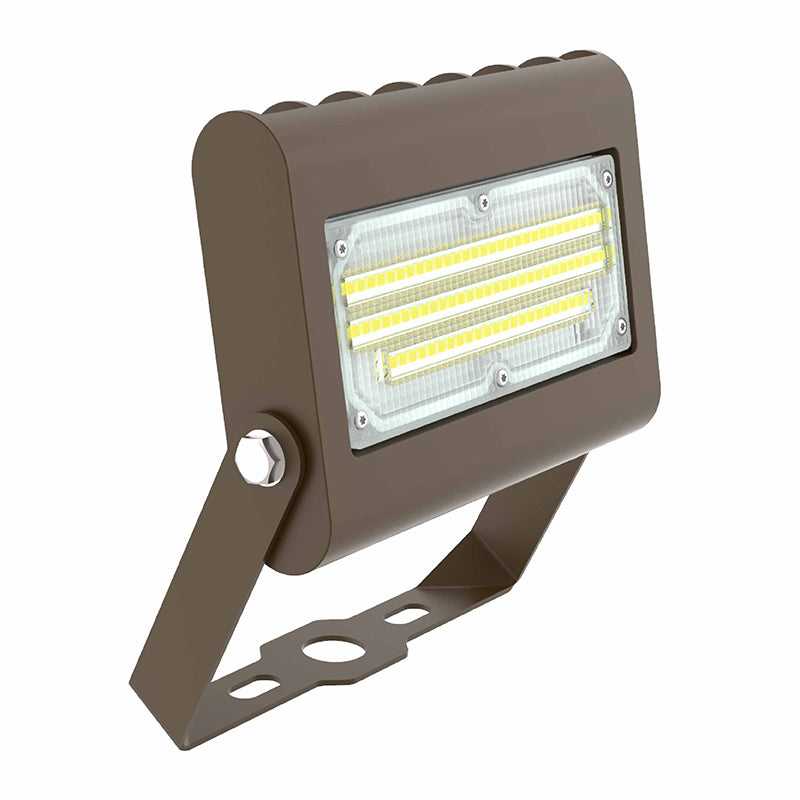

Westgate Mfg LFX Small Spec Flood Light, 10/15/20/30W, CCT Selectable, 0-10V Dimmable, U-Bracket Mount, Bronze, LFX-SM-10-30W-MCTP-TR
- ROCK SKU: WES-LFX-SM-10-30W-MCTP-TR
- UPC: 845060073119
- MFG Part #: LFX-SM-10-30W-MCTP-TR
$79.78
$70.74
The Westgate Mfg LFX-SM-10-30W-MCTP-TR is a small-format spec-grade LED flood/area light with U-bracket mount for wall, pole, and ground-mount exterior applications requiring flexible aiming and multi-wattage flexibility. Field-selectable wattage of 10/15/20/30W at 130 lm/W with four CCT options (3000K–5700K) and 0-10V dimming operates across 120–277V with a Type III optical lens. UL listed and DLC Premium qualified, IP65-rated die-cast aluminum housing in bronze finish with a 7-year warranty.
| Watts | 10/15/20/30W (Field-Adjustable) |
| Lumens | 1,300–3,900 lm |
| Color Temperature | CCT Selectable (3000K/4000K/5000K/5700K) |
| Voltage | 120-277V |
| Dimming | 0-10V Dimmable |
| Beam Angle | 90° × 120° |
| IP Rating | IP65 |
| Rated Life | 50,000 hours |
| Finish | Bronze |
| Listings | UL, DLC Premium |
