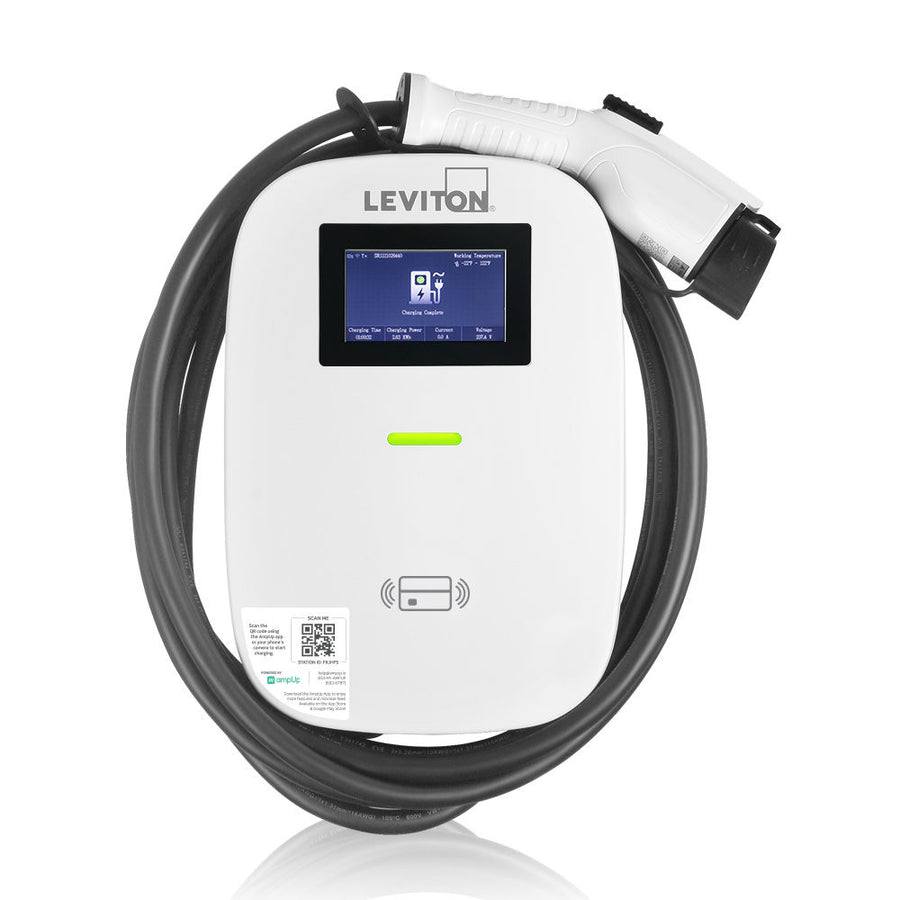

Leviton Level 2 Electric Vehicle Charging Station Charging Station Management Software and LCD Screen, 80A Max Output - 18ft Cable - 208-240V, EV80S
$2,345.60
Estimated Lead Time: 0-1 weeks
Product dimensions
-
Width:
14.2 IN
-
Height:
9.8 IN
-
Depth:
3.9 IN
-
Weight:
17.6 LBS
["EV Series Pro Level 2 Electric Vehicle Charging Station
- 80A
- 208/240 VAC
- 19.2kW Output
- J1772 Charge Connector
- 18' Cord

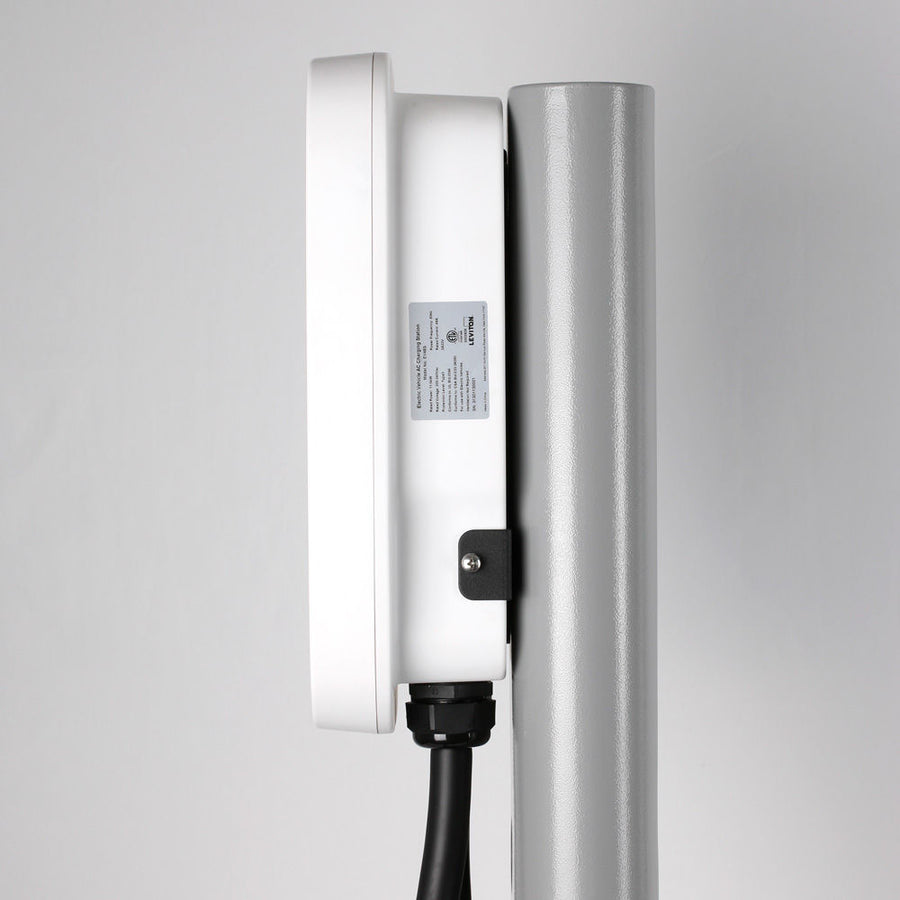

- Includes Mounting Bracket and Pre-Attached Input Cable

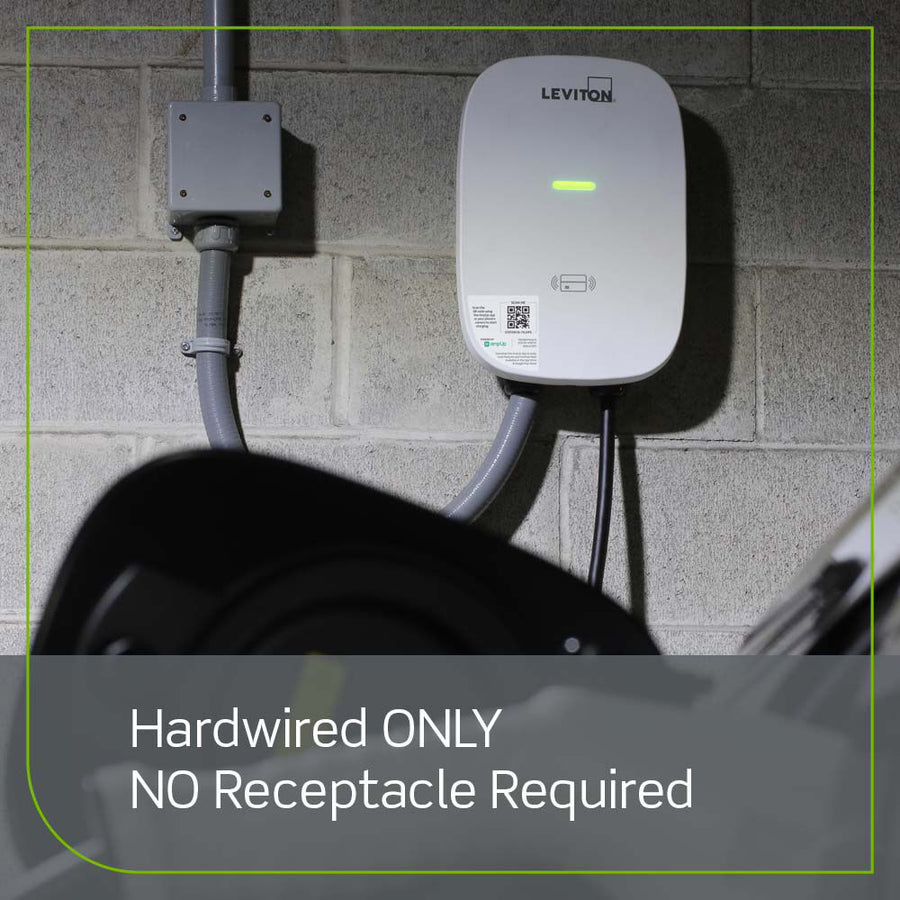

- HARDWIRED ONLY

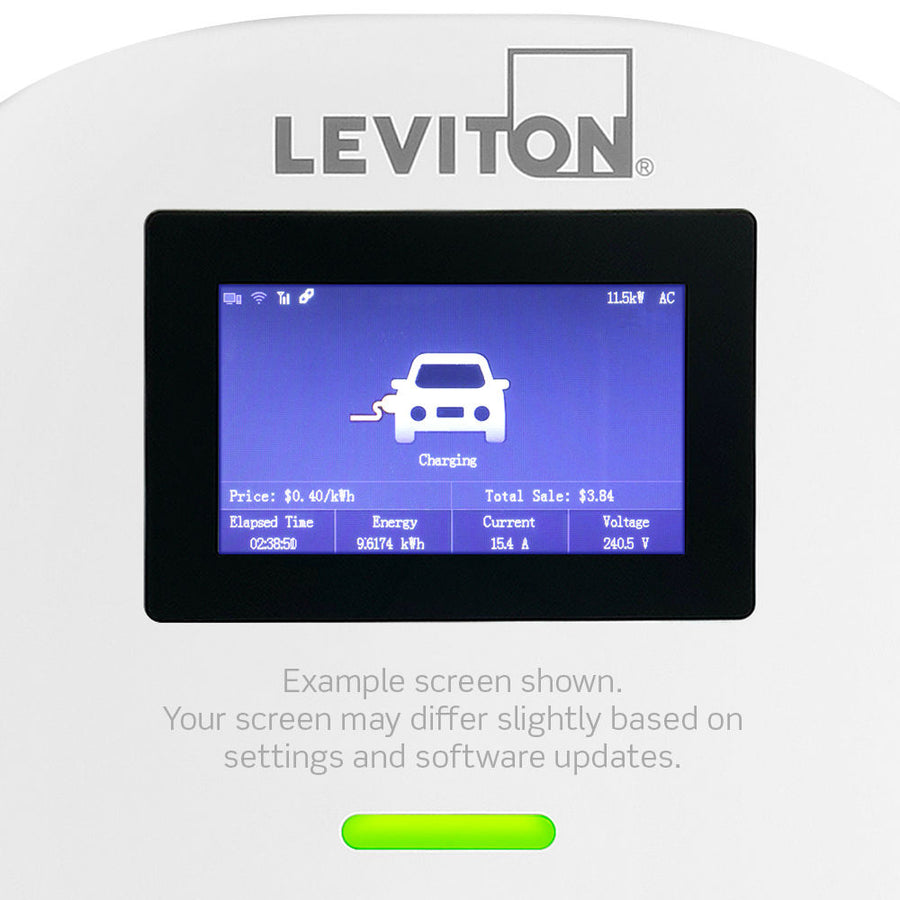

- Features AmpUp Charging Station Management Software and LCD Screen.
- MULTI-STATION

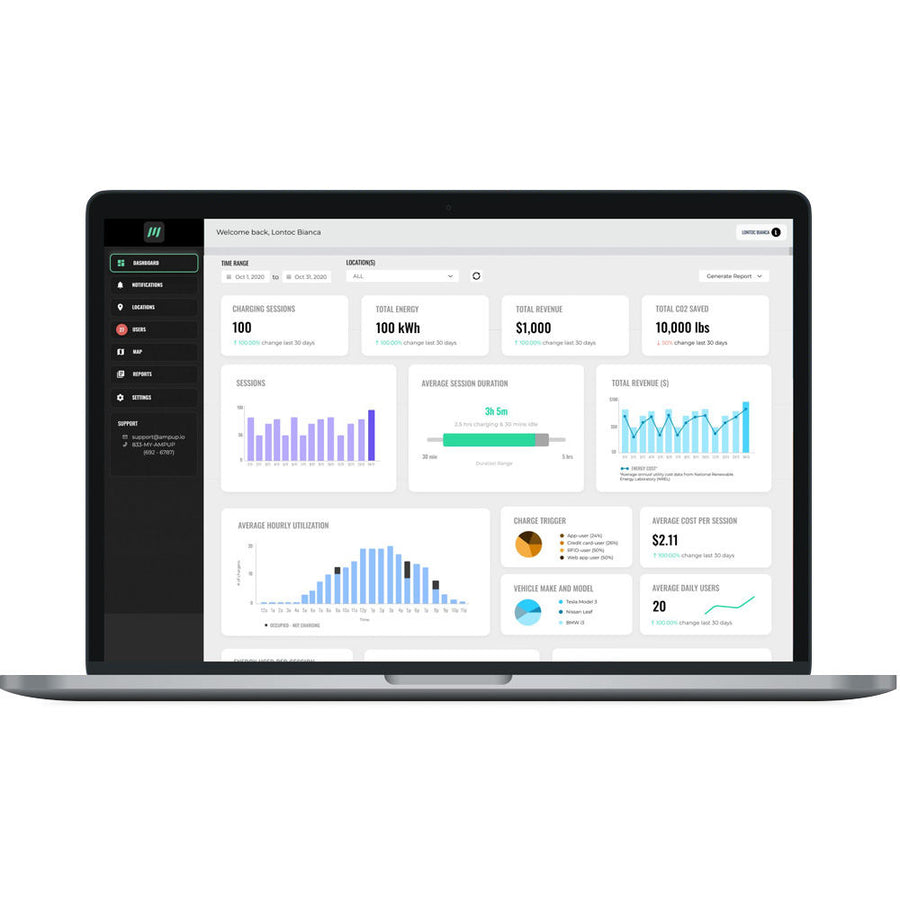

- MULTI-SITE MANAGEMENT FOR SITE HOSTS – Featuring AmpUp Charging Station Management Software
- these stations include real time analytics
| Amperage | 80 A |
| Breaker | 100 A |
| Charge Connector Cord | #6 AWG SAE J1772 |
| Number of Phase / Wire | L1, L2 and Ground, Bottom Feed |
| Operating Temperature | -30°C to 50°C |
| Output Power | 19.2kW |
| Short Circuit Current Rating | 20 mA CCID per UL 2231 |
| Voltage | 208/240 VAC |
| Cooling | Natural Cooling |
| Enclosure Material / Rating | Plastic (PC+PBT) / NEMA Type 3R |
| Status Indicator | Power Present, Charging, Fault |
| Cable Length | 18 ft. (5.5 m) |
| Cover Locking Mechanism | Phillips Head Screws, No Padlock Option |
| Feature | Station Management Software|LCD Screen |
| Standards and Certifications | UL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant |
