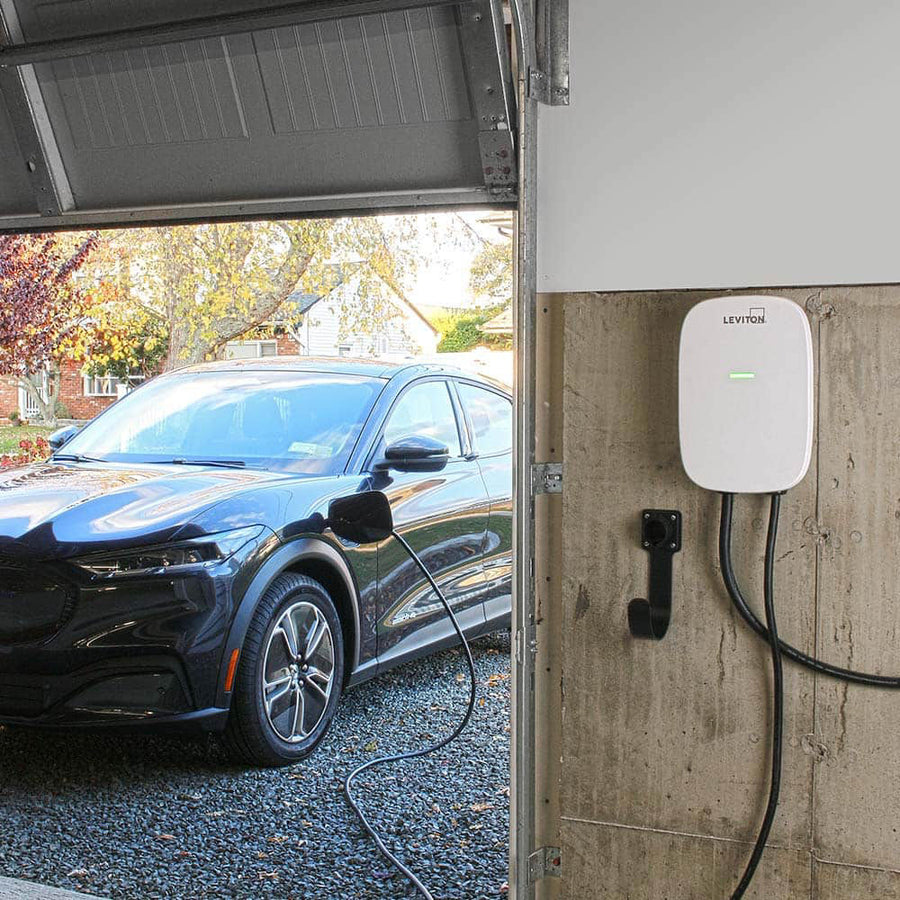

Leviton Level 2 Electric Vehicle Charging Station With Wi-Fi, Works with My Leviton App, 48A Max Output - 18ft Cable - 208-240V, EV48W
- ROCK SKU: LEV-EV48W
- UPC: 078477877593
- MFG Part #: EV48W
$1,065.60
Estimated Lead Time: 0-1 weeks
Product dimensions
-
Width:
14.19 IN
-
Height:
9.84 IN
-
Depth:
3.42 IN
-
Weight:
15.4 LBS

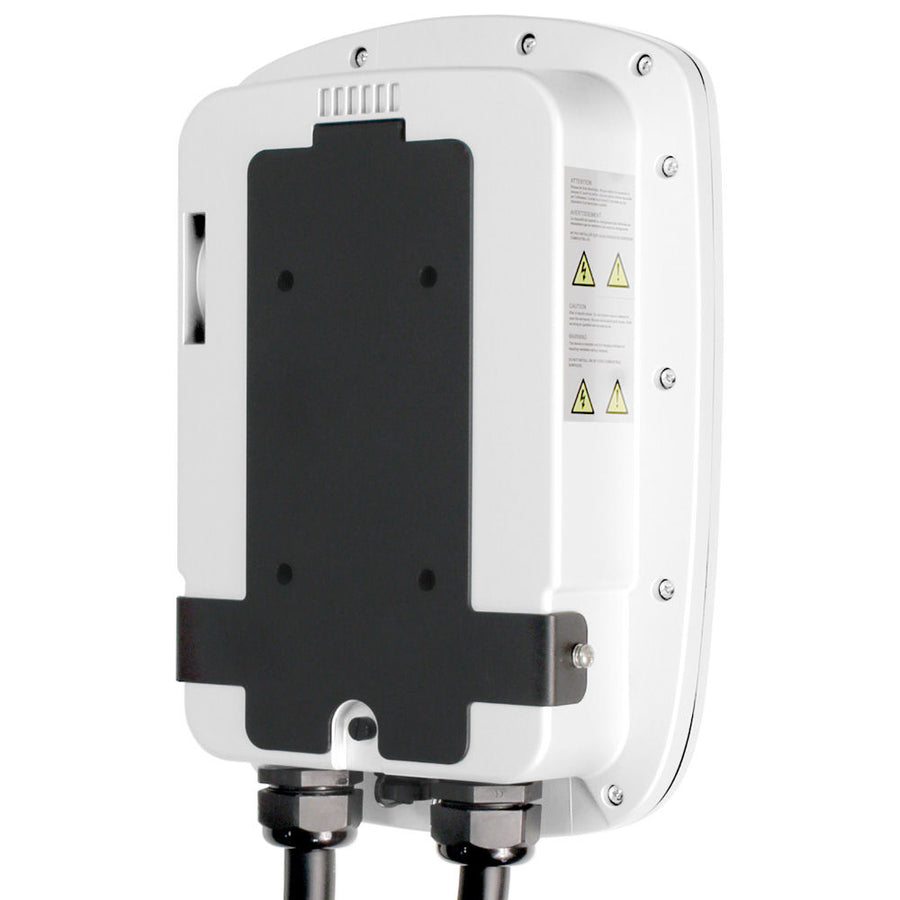

EV Series Smart Home Level 2 Electric Vehicle Charging Station, 48A, 208/240 VAC, 11.6kW Output, J1772 Charge Connector, 18' Cord, Includes Mounting Bracket and Pre-Attached Input Cable, Optional RFID Control, Wi-Fi Compatible (Wi-Fi Function 802.11 b/g/n), Replacement for EVR40-B2C. HARDWIRED ONLY.

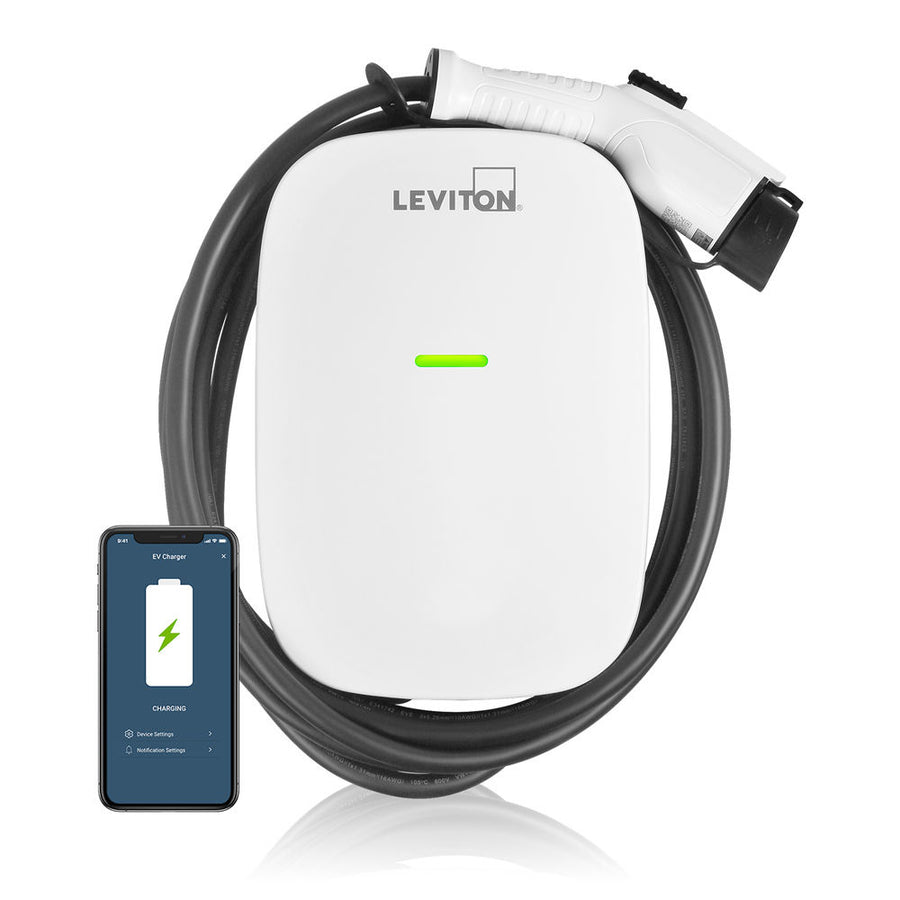

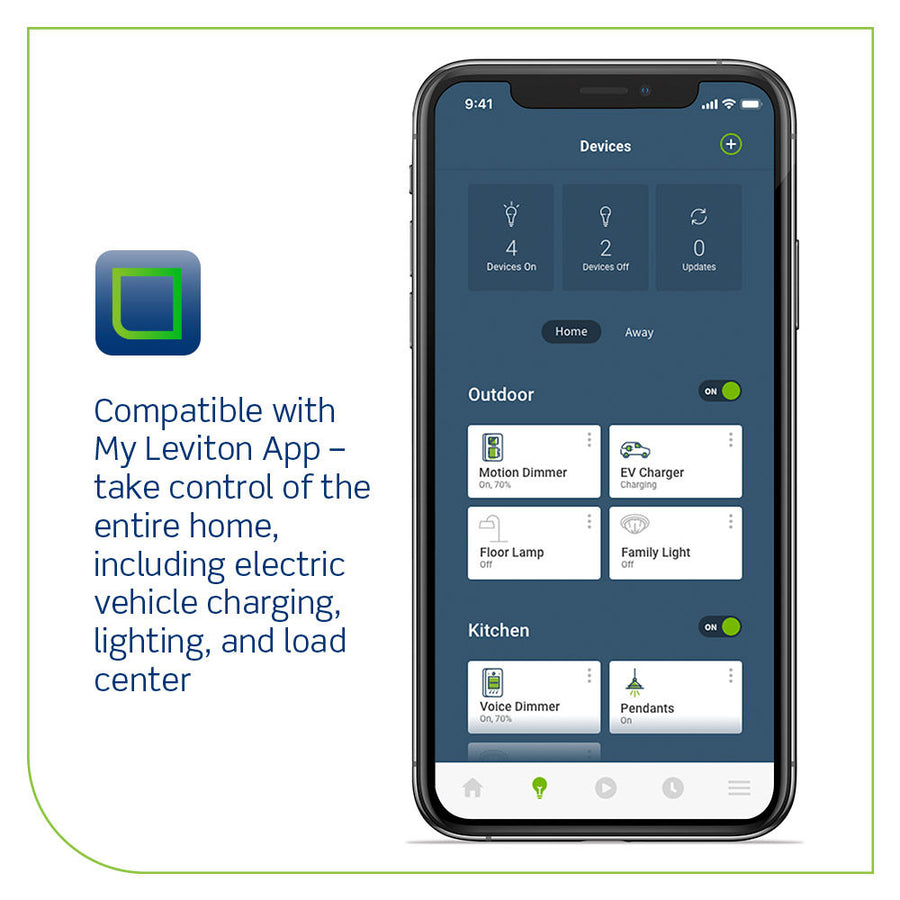

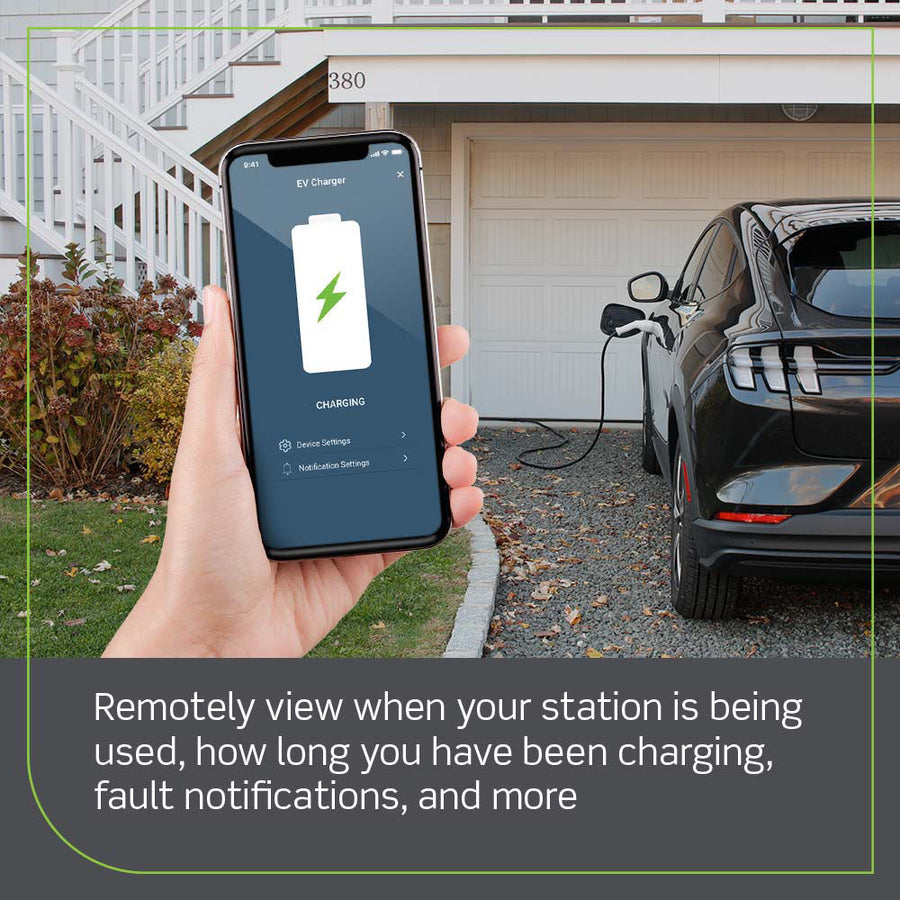

- SMART – Works with the My Leviton App via Wi-Fi, allowing you to take control of your entire home, from load center to lighting to EV charger.

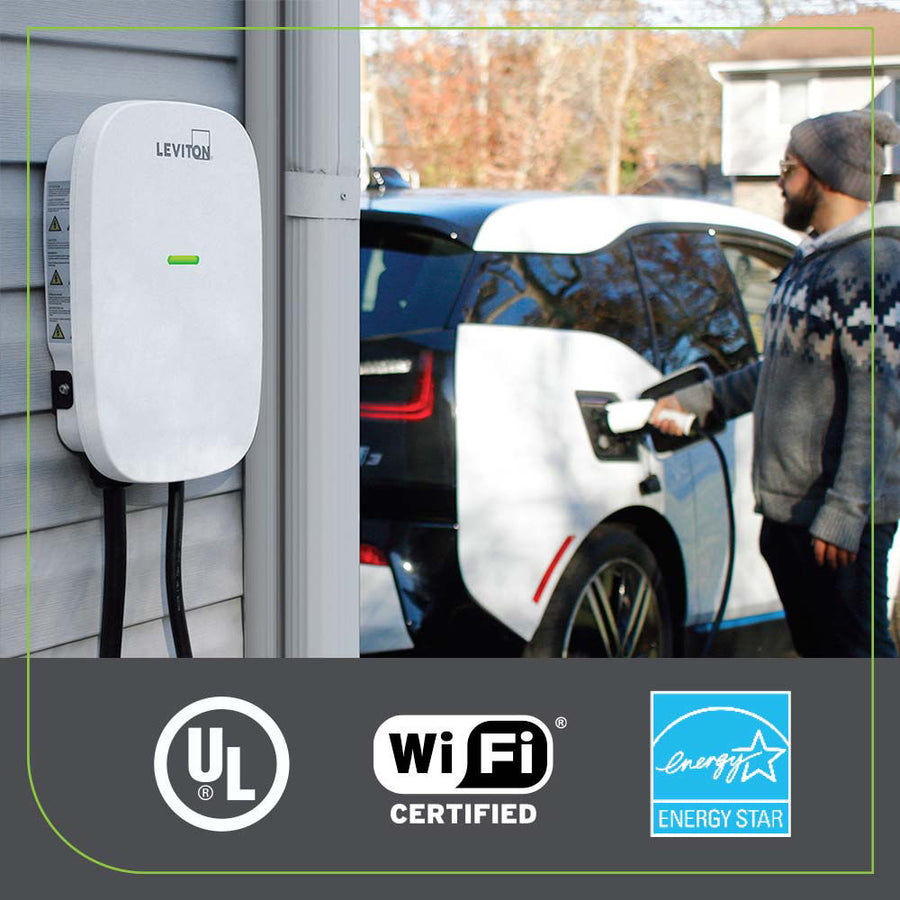

- THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team.
- FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors.
- EASY TO INSTALL – benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station is hardwired and requires a 60 Amp breaker.

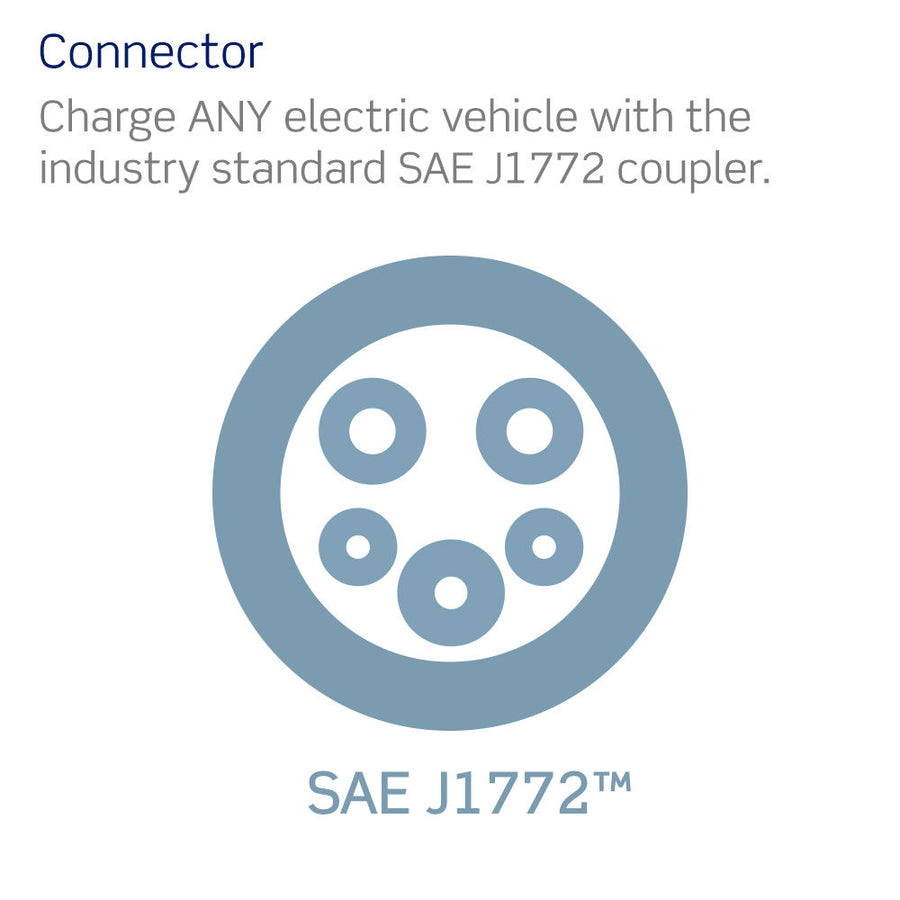

- CHARGE ANY ELECTRIC VEHICLE – with an industry standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with a Tesla-supplied adapter.
| Amperage | 48 A |
| Breaker | 60 A |
| Charge Connector Cord | #7 AWG SAE J1772 |
| Number of Phase / Wire | L1, L2 and Ground, Bottom Feed |
| Operating Temperature | -30°C to 50°C |
| Output Power | 11.6kW |
| Short Circuit Current Rating | 20 mA CCID per UL 2231 |
| Voltage | 208/240 VAC |
| Enclosure Material | Plastic (PC+PBT) |
| Enclosure Rating | NEMA Type 3R |

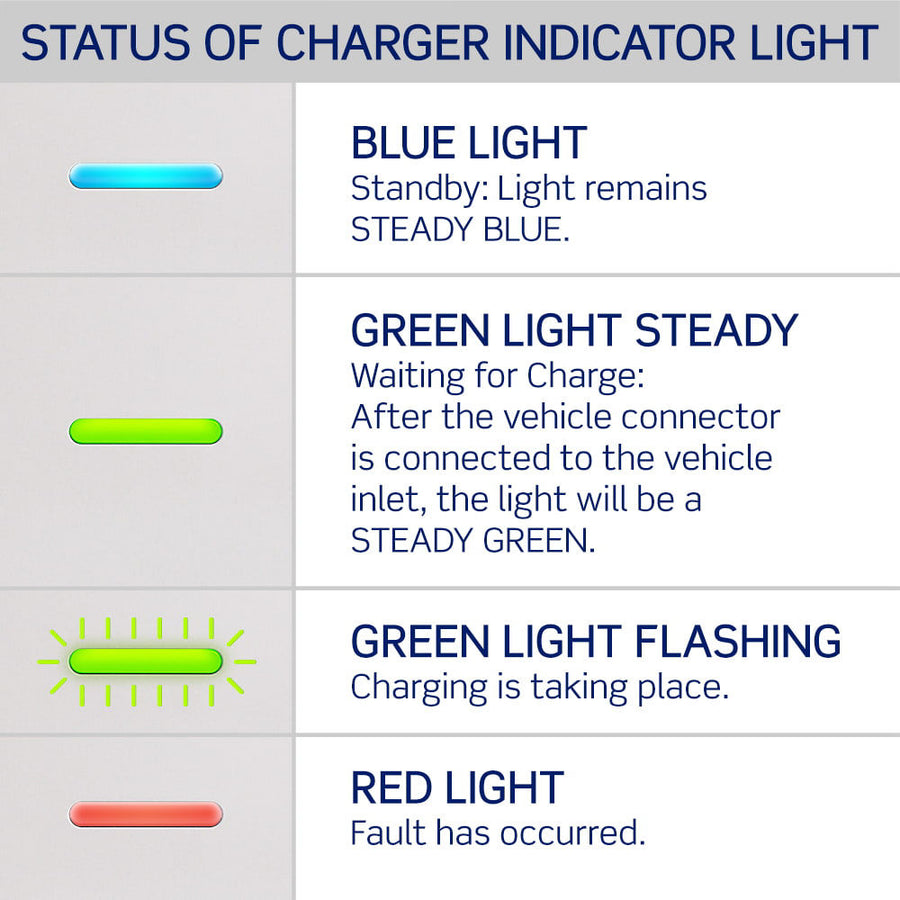

| Status Indicator | Power Present, Charging, Fault |
| Application | Home|Commercial |
| Cover Locking Mechanism | Phillips Head Screws, No Padlock Option |
| Device Type | Charger |
| Feature | My Leviton Enabled |
| Cable Length | 18 ft. (5.5 m) |
| Altitude | Up to 6,500 ft. (2,000 m) |
| Charging Cable Operating Temperature | -30°C to +50°C |
| Cooling | Natural Cooling |
| Operating Humidity | < 95% Relative Humidity, Non-Condensing |
| Standards and Certifications | UL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant |
