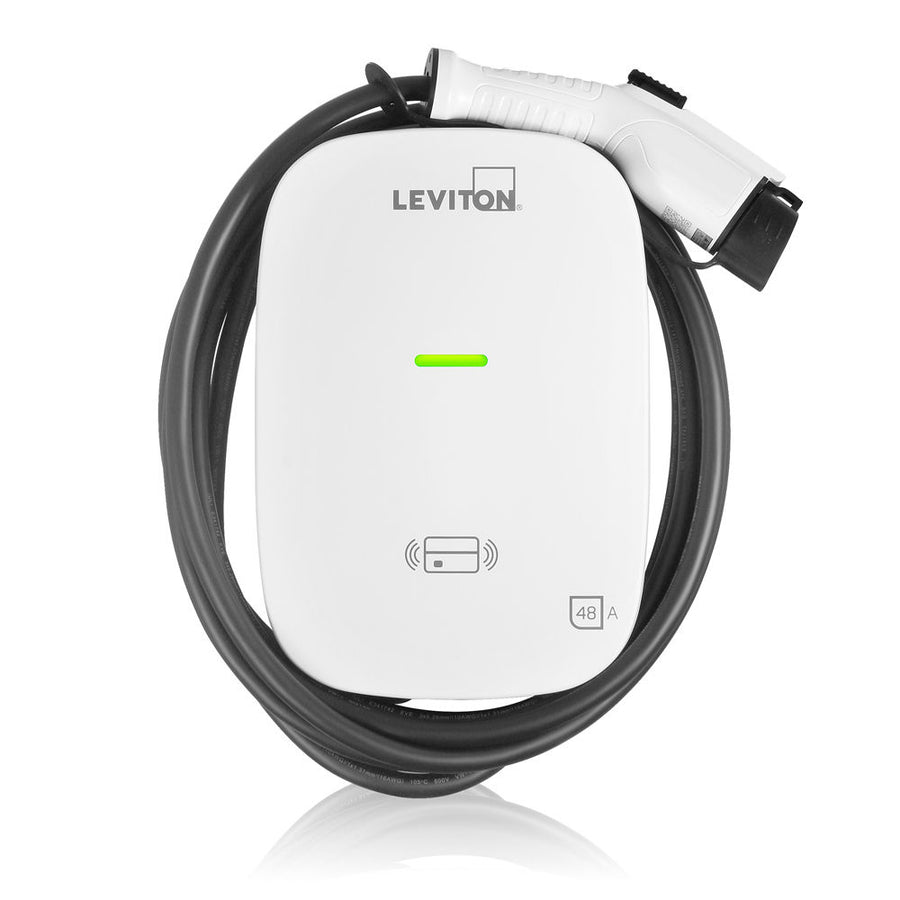

Leviton Level 2 Electric Vehicle Charging Station - EV Series, 48A Max Output - 18ft Cable - 208-240V, EV480
- ROCK SKU: LEV-EV480
- UPC: 078477997284
- MFG Part #: EV480
$929.20
Estimated Lead Time: 0-1 weeks
Product dimensions
-
Width:
14.19 IN
-
Height:
9.84 IN
-
Depth:
3.42 IN
-
Weight:
15.4 LBS
EV Series Standard Level 2 Electric Vehicle Charging Station, 48A, 208/240 VAC, 11.6kW Output, J1772 Charge Connector, 18' Cord, Replacement for EVR40-B2C, Includes Mounting Bracket and Pre-Attached Input Cable, HARDWIRED ONLY.

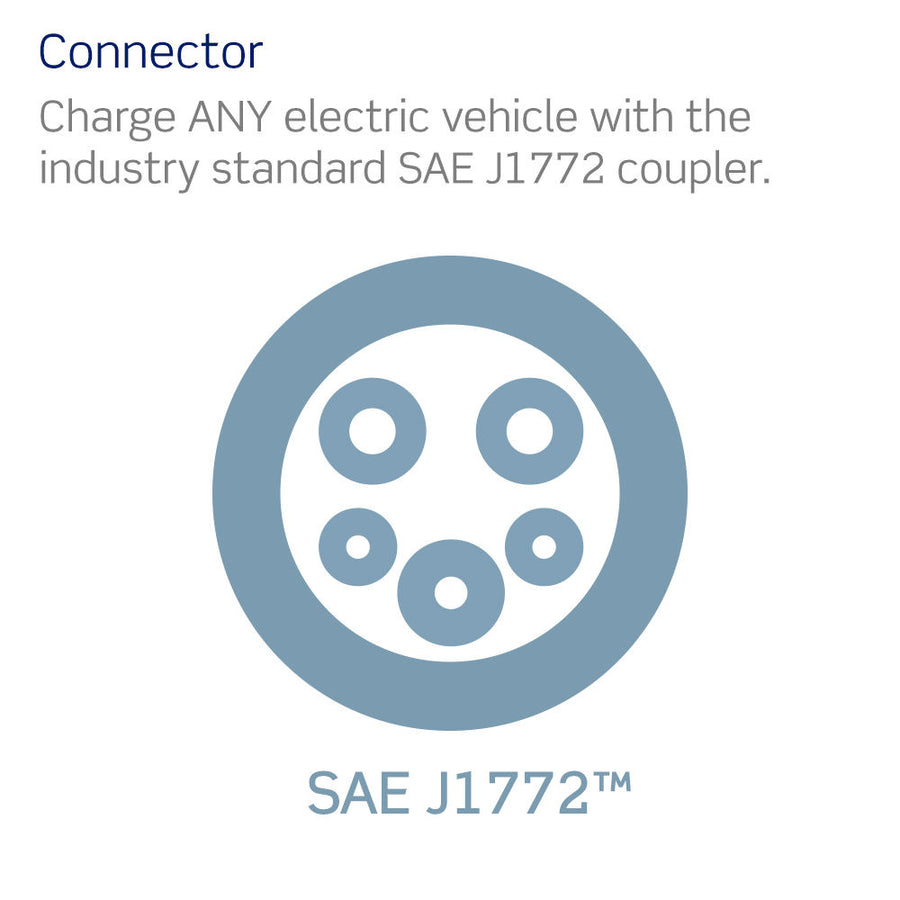

- Fast and secure charging of any SAE J1772™ compatible electric vehicle.

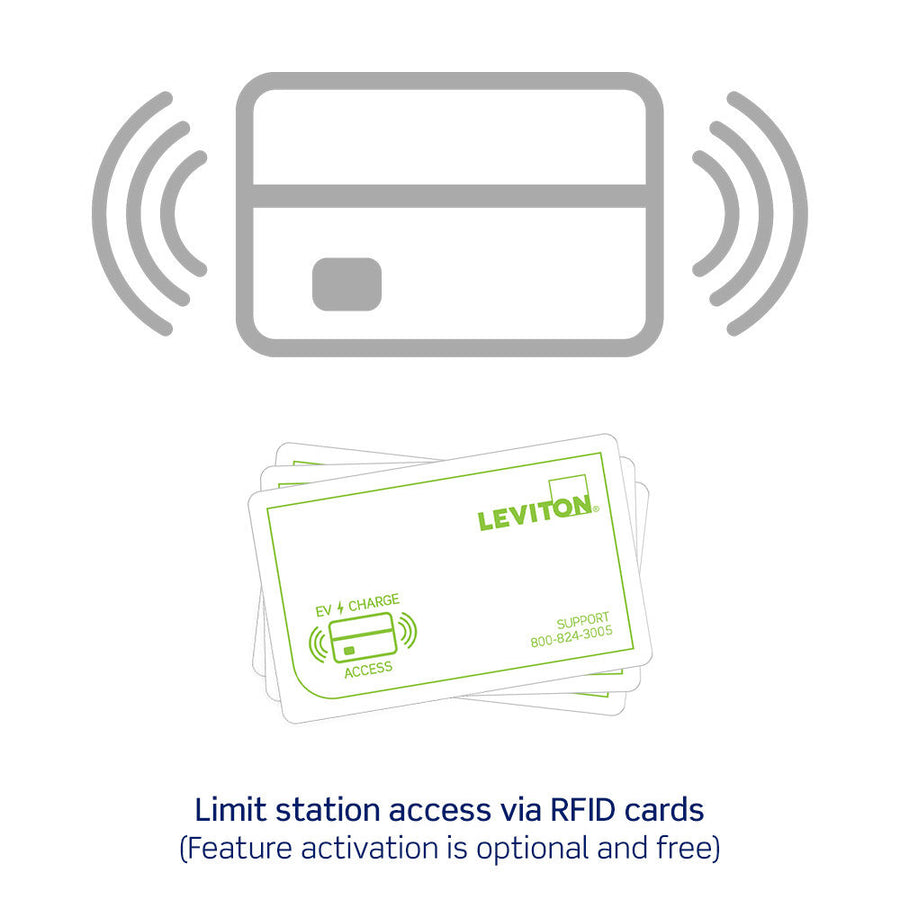

- Optional access control: station comes with RFID disabled - simply tap RFID card to activate.
- Cable design prevents cord from freezing and cracking in extreme weather.
- For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R.

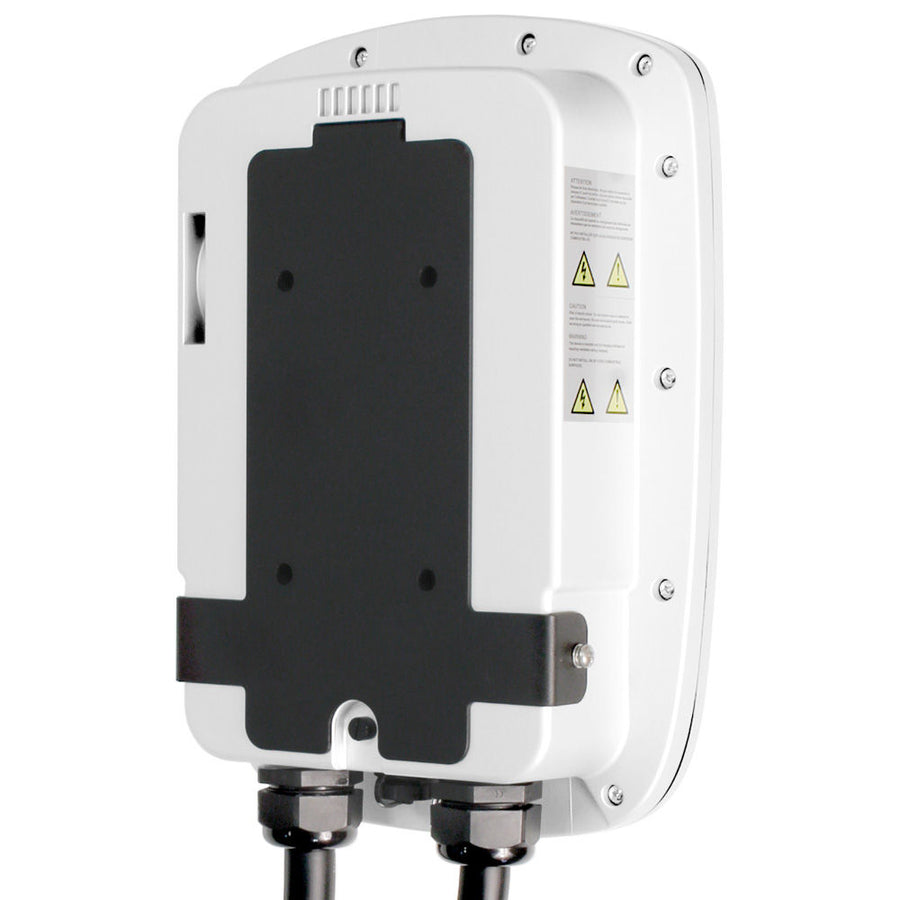

- Easy installation with pre-attached input cable and mounting hardware included.
- Energy Star Certified.
| Amperage | 48 A |
| Breaker | 60 A |
| Charge Connector Cord | #7 AWG SAE J1772 |
| Number of Phase / Wire | L1, L2 and Ground, Bottom Feed |
| Operating Temperature | -30°C to 50°C |
| Output Power | 11.6kW |
| Short Circuit Current Rating | 20 mA CCID per UL 2231 |
| Voltage | 208/240 VAC |
| Enclosure Material / Rating | Plastic (PC+PBT) / NEMA Type 3R |

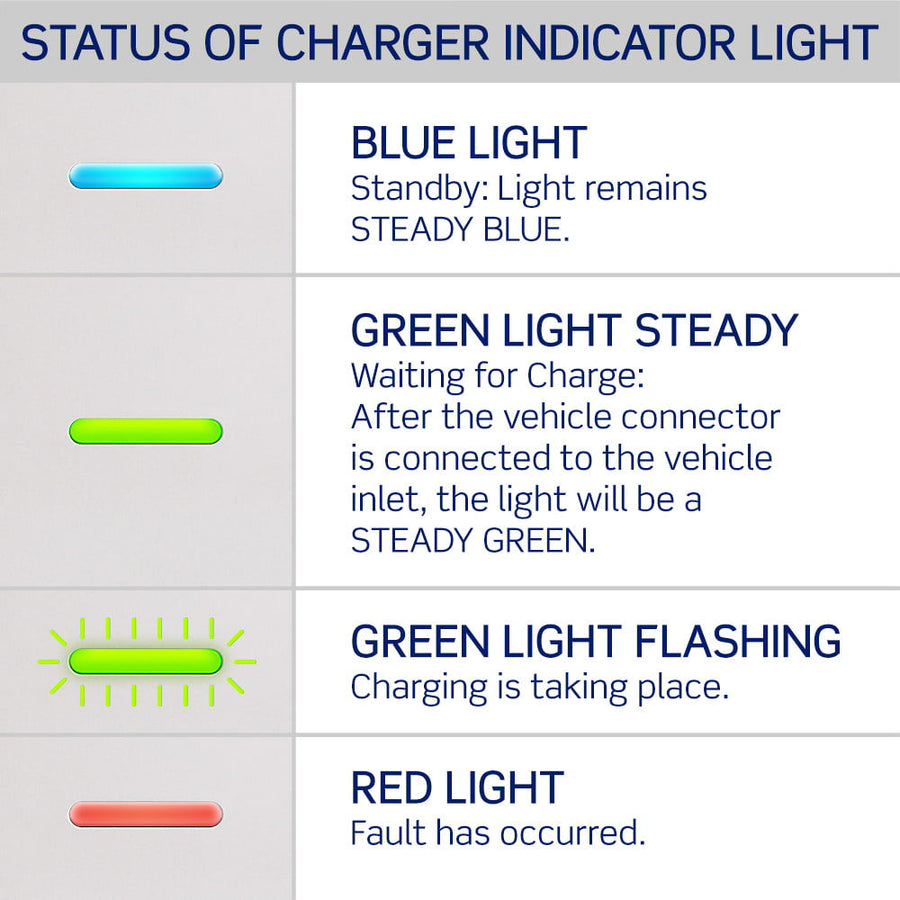

| Status Indicator | Power Present, Charging, Fault |
| Cooling | Natural Cooling |
| Cable Length | 18 ft. (5.5 m) |
| Cover Locking Mechanism | Phillips Head Screws, No Padlock Option |
| Standards and Certifications | UL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant |
Product dimensions
-
Width:
14.19 IN
-
Height:
9.84 IN
-
Depth:
3.42 IN
-
Weight:
15.4 LBS
