Elco Lighting Koto Sylo Wall Mount, 5–14.7W, CCT Selectable, CRI95, 120/277V, TRIAC/ELV/DALI, 38°, E36AB-1330
- ROCK SKU: ELC-E36AB-1330
- UPC:
- MFG Part #: E36AB-1330
$221.56

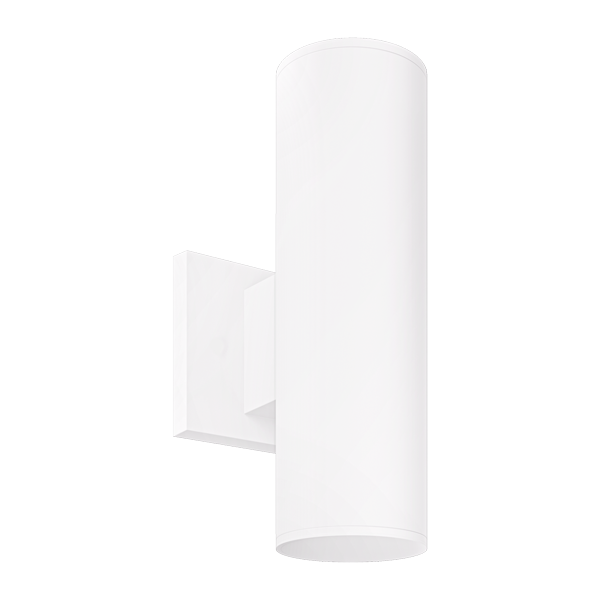

The Elco Lighting E36AB-1330 is a 3″ Koto Sylo die-cast aluminum wall mount fixture for architectural interior applications, accepting the Koto Standard LED module across a 5W–14.7W range and delivering 350–1500 lm. The module offers field-selectable CCT with Sunset (3000K–1800K), Human Centric (4000K–2200K), and Tunable White (1800K–4000K) options at CRI 95, with a standard 38° beam angle and optional 18°, 25°, 60°, and 90° lenses; dimming is compatible with Triac/ELV, 0-10V, and DALI 2 on 120/277V. cUL Listed for Wet Locations, ENERGY STAR Certified, and Title 24 JA8-2022 compliant with a 50,000-hour L70 rated life.
| Watts | 5–14.7W |
| Lumens | 350–1,500 lm |
| Color Temperature | CCT Selectable (Sunset, Human Centric, Tunable White) |
| CRI | 95 |
| Voltage | 120/277V or DALI 2 |
| Dimming | TRIAC/ELV, 0–10V, DALI 2 (1% minimum) |
| Beam Angle | 38° (25°, 60°, optional 18°, 90°) |
| Rated Life | 50,000 hours (L70) |
| Finish | Black |
| Listings | cUL Listed (Wet Locations), RoHS Compliant, ENERGY STAR, California Title 24 JA8-2022 |
