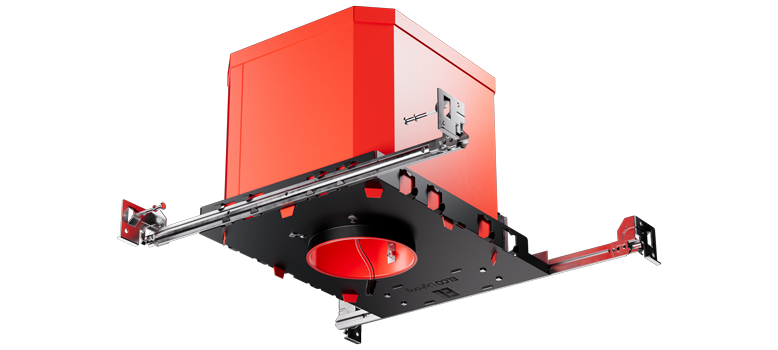

Elco Lighting Koto P3KSPLTS 3" Fire-Rated Housing, 10.5W, 750–1,100 lm, 120/277V, 0-10V/Triac/ELV, Silver, P3KSPLTS
- ROCK SKU: ELC-P3KSPLTS
- MFG Part #: P3KSPLTS
$7.83
The Elco Lighting P3KSPLTS is a 3" new construction, 2-hour fire and sound rated IC-airtight housing top plate for the Koto™ Sylo recessed system, finished in silver, for use in commercial ceiling plenums. Operating at 10.5W with lumen output ranging 750–1,100 lm based on the paired Koto™ LED engine (ELK19, ELK21, or ELK24 Series), it supports 120/277V with 0-10V/Triac/ELV dimming or 120V Triac/ELV with optional emergency battery backup. Double-wall IC-rated construction meets ASTM E-283 airtight requirements, and the adjustable frame accommodates ceiling thicknesses up to 1½", with compatibility for T-grid and drop ceiling applications.
| Watts | 10.5W |
| Lumens | 750–1,100 lm (ELK19/ELK21/ELK24 modules) |
| Voltage | 120/277V |
| Dimming | Triac/ELV, 0-10V/Triac/ELV |
| Fire Rating | 2-Hour Fire and Sound Rated |
| Construction | IC Airtight, Double Wall, Direct Contact with Insulation |
| Compatibility | Requires Koto LED Light Engine (ELK19, ELK21, or ELK24) |
| Finish | Silver |
| Listings | UL Listed (Damp Location, Wet Location with select trims) |
