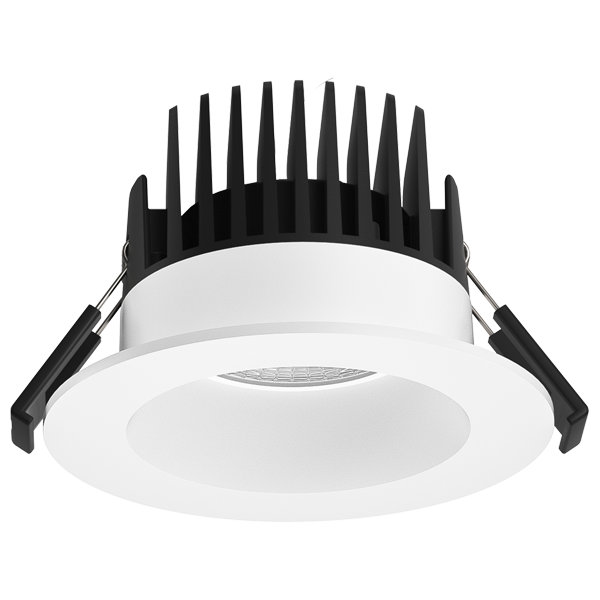

Elco Lighting ERT685 High Lumen LED Reflector Insert, 12-32W, CCT Selectable, CRI90, 0-10V/Triac Dimming, Haze, ERT685CT5DH
- ROCK SKU: ELC-ERT685CT5DH
- UPC: 633999217083
- MFG Part #: ERT685CT5DH
$98.14
The Elco Lighting ERT685CT5DH is a 6" high-lumen LED round reflector insert for housing-free new construction and remodel applications, offering dual field-selectable controls for both CCT and lumen output. A manual 5-CCT switch spans 2700K–5000K selectable, while a separate lumen switch adjusts output across five levels — 1250 lm (16W), 1500 lm (19W), 2000 lm (25W), or 2500 lm (32W) — with CRI 90+ and 0-10V/Triac/ELV dimming. ETL listed for wet locations, IC airtight rated, and Title 24 JA8-2019 compliant; includes driver and junction box. Haze finish.
| Watts | 12/16/19/25/32W (Field-Adjustable via Lumen Switch) |
| Lumens | 1250–2500 lm (Field-Adjustable) |
| Color Temperature | CCT Selectable (2700K/3000K/3500K/4000K/5000K) |
| CRI | 90+ |
| Dimming | 0-10V / Triac / ELV |
| Wet Location | Listed |
| Finish | Haze |
