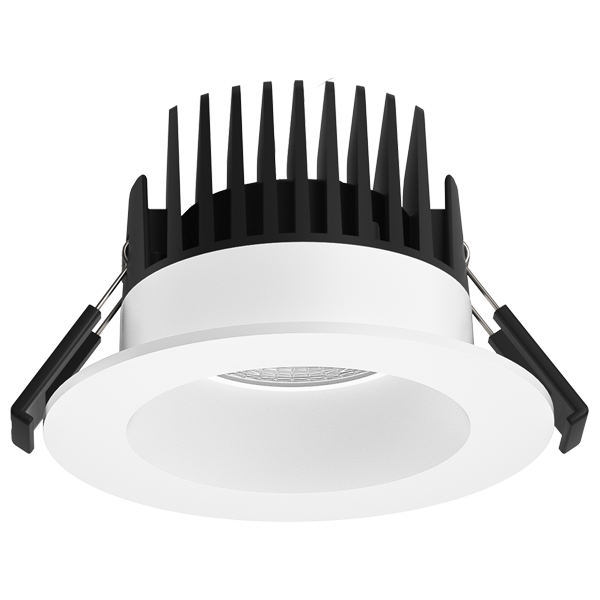

Elco Lighting ERT685 6" LED Round Reflector Insert, 12/16/19/25/32W, CCT Selectable, CRI90, 0-10V/TRIAC/ELV, Wet Location, ERT685CT5DW-EM
- ROCK SKU: ELC-ERT685CT5DW-EM
- UPC:
- MFG Part #: ERT685CT5DW-EM
$332.91
The Elco Lighting ERT685CT5DW-EM is a 6" LED round reflector insert engineered for housing-free installation in both new construction and remodel recessed applications, with an integrated emergency battery backup option. A 5-position lumen switch selects output from 1000 lm at 12W up to 2500 lm at 32W, while a separate 5-CCT switch provides field-selectable CCT across 2700K–5000K; CRI 90+ and 0-10V/TRIAC/ELV dimming compatibility make it suitable for a wide range of commercial and residential dimming systems. ETL listed for wet locations, IC airtight rated, and Title 24 JA8-2019 compliant; includes an integrated driver and junction box.
| Watts | 12/16/19/25/32W (Field-Adjustable) |
| Lumens | 1,000–2,500 lm (Field-Adjustable) |
| Color Temperature | CCT Selectable (2700K/3000K/3500K/4000K/5000K) |
| CRI | 90+ |
| Dimming | 0-10V / TRIAC / ELV |
| Voltage | 120V |
| Wet Location | Yes, ETL Listed |
| Certifications | IC-Rated, Title 24 JA8-2019 |
| Finish | White |
| Features | Reflector Insert, No Housing Required, Battery Backup Optional |
