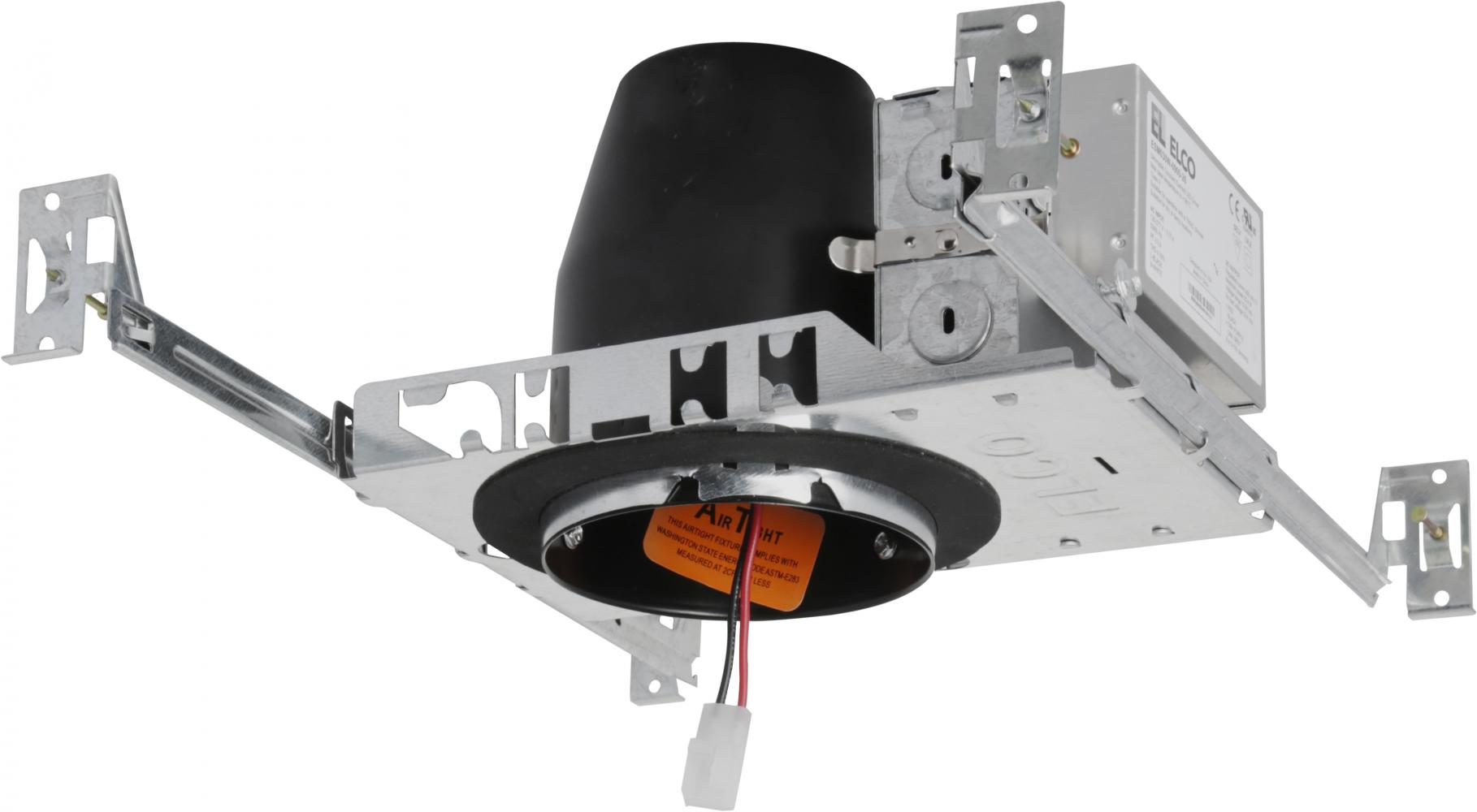

Elco Lighting Cedar 3" IC Airtight Single Wall Housing with Driver, 120/277V, Triac/ELV, E3LC08ICAD2
- ROCK SKU: ELC-E3LC08ICAD2
- UPC: 633999116836
- MFG Part #: E3LC08ICAD2
$53.91
The Elco Lighting E3LC08ICAD2 is a 3" IC Airtight Single Wall New Construction Housing with Driver for use with Elco Cedar™ System 3" LED Light Engines in residential and light commercial installations. Rated at 850 lumens on 120/277V with Triac/ELV dimming and a power factor ≥0.95, it is cUL listed for direct insulation contact and damp locations, and supports an optional 90-minute 120/277V emergency backup. The airtight housing meets ASTM E-283 air-tight requirements, adjusts to accommodate up to 1½" ceiling thickness, and is compatible with T-grid and drop ceiling applications; Gen 2 and Gen 1 Cedar components are not cross-compatible.
| Lumens | 850 lm |
| Voltage | 120/277V |
| Dimming | Triac/ELV |
| Power Factor | ≥0.95 |
| Damp Location | cUL Listed |
| Direct Contact | cUL Listed |
| IC Rated | Yes |
| Ceiling Thickness | Up to 1.5 in. |
| Features | Airtight, flicker-free dimming, emergency backup option |
