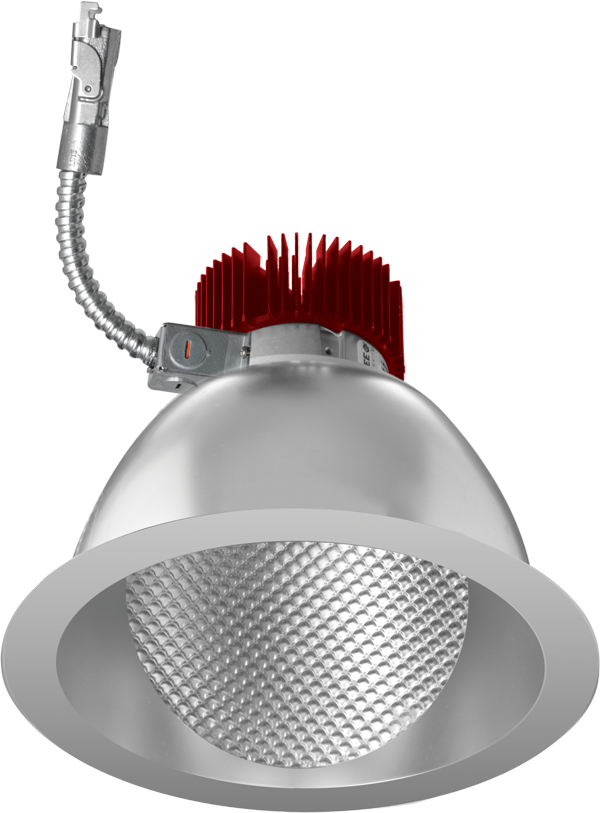

Elco Lighting 8" Wall Wash LED Light Engine Trim Gen 2, 8.8–71.4W, CRI93+, CCT Selectable, Triac/0-10V, Chrome, E811L0830C2

Elco Lighting 8" Wall Wash LED Light Engine Trim Gen 2, 8.8–71.4W, CRI93+, CCT Selectable, Triac/0-10V, Chrome, E811L0830C2

$107.91

Estimated Lead Time: 0-2 weeks

The Elco Lighting E811L0830C2 is an 8" wall wash LED light engine trim (Generation 2) engineered for Laurel System frames in new construction, remodel, and retrofit installations requiring directional wall coverage. Spanning 8.8–71.4W with an output range of 850–6000 lumens and a 60° beam angle, the wall wash reflector pushes light in one direction to evenly illuminate vertical surfaces. Dimmable via Triac/ELV or 0-10V, rated CRI 93+, cULus listed for wet locations, RoHS compliant, and USA designed and assembled; chrome finish. Note: Gen 2 and Gen 1 frames are not cross-compatible.


Watts 8.8–71.4W
Lumens 850–6,000 lm
Color Temperature CCT Selectable (2700K–5000K+)
CRI 93+
Dimming Triac/ELV or 0-10V
Beam Angle 60°
Wet Location cULus Listed
Finish All Chrome
Rated Life 50,000 hours L70
Generation Gen 2

Returns

  • Returns accepted within 30 days of purchase, in original unopened packaging, unused and in resalable condition.
  • All returns require prior authorization — email info@rocklighting.com before shipping anything back.
  • Approved returns are subject to a 25% restocking fee, deducted from the refund.
  • No restocking fee when the problem is ours — damaged, defective, wrong item shipped, or an inaccurate listing.

Return & Refund Policy · 323-419-5591
