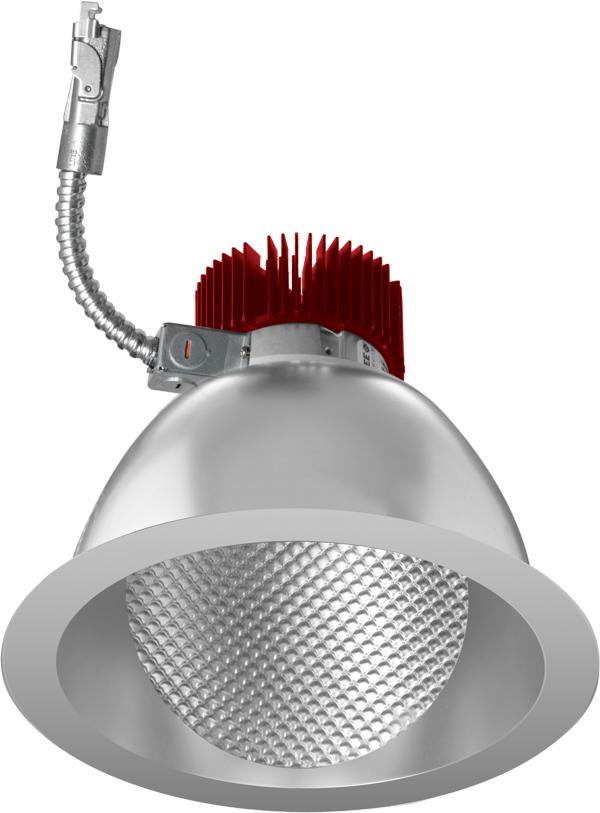

Elco Lighting 8" Wall Wash LED Light Engine Trim, 8.8-71.4W, 3000K, CRI93, Triac/0-10V, Haze/White, E811L1630HW2
- ROCK SKU: ELC-E811L1630HW2
- UPC:
- MFG Part #: E811L1630HW2
$143.91
The Elco Lighting E811L1630HW2 is an 8" wall wash LED light engine trim for recessed installations requiring warm-neutral directional wall illumination in commercial and architectural applications. Rated 8.8–71.4W with output spanning 850–6000 lm, this Generation 2 trim delivers CRI 93+ at 3000K through a 60° beam angle via a frosted polycarbonate lens and deep-spun aluminum reflector. Compatible with Triac/ELV and 0-10V dimming, cULus listed for wet locations, and USA designed and assembled; requires a separately purchased Laurel System frame — Gen 2 frames are not cross-compatible with Gen 1. Haze with White Trim finish.
| Wattage | 8.8–71.4W (Field-Adjustable) |
| Lumens | 850–6,000 lm |
| Color Temperature | 3000K |
| CRI | 93+ |
| Beam Angle | 60° |
| Dimming | Triac/ELV or 0-10V |
| Wet Location | cULus Listed |
| Finish | Haze with White Trim |
| Warranty | 5-Year Limited |
