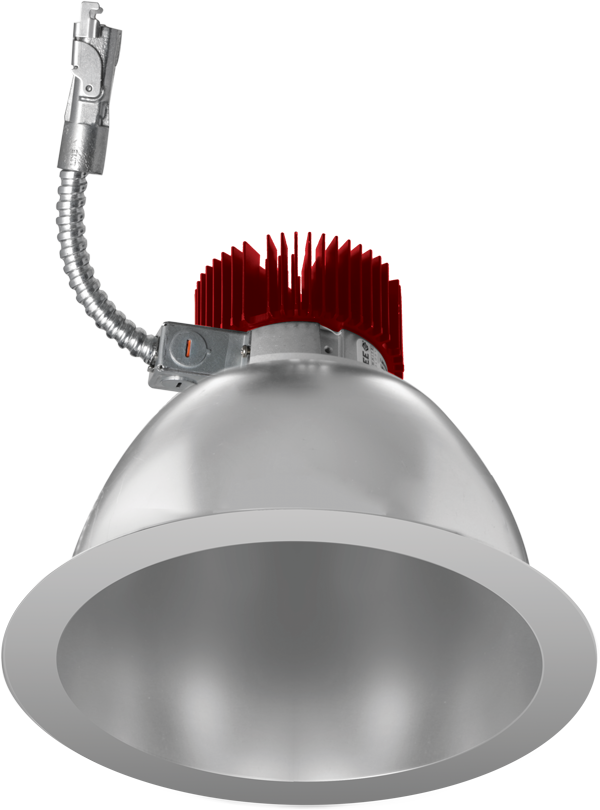

Elco Lighting 8" Reflector LED Light Engine Trim Gen2, 8.8–71.4W, CRI93+, CCT Selectable, Triac/0-10V, Haze/White, E810L2030HW2
- ROCK SKU: ELC-E810L2030HW2
- UPC: 633999161836
- MFG Part #: E810L2030HW2
$116.91
The Elco Lighting E810L2030HW2 is an 8" Generation 2 reflector LED light engine trim engineered for Elco's Laurel System frames across new construction, remodel, and retrofit installations. Ranging from 8.8W to 71.4W with an output of 850–6000 lumens, this trim features a 60° beam angle and a frosted polycarbonate lens that delivers even illumination while reducing glare. Compatible with Triac/ELV and 0-10V dimming, it carries a CRI of 93+, >90 lm/W efficacy, and 50,000-hour L70 lumen maintenance, with cULus Wet Location listing and RoHS compliance. Haze reflector with white trim finish. USA designed and assembled. Note: Generation 2 frames are not cross-compatible with Generation 1.
| Watts | 8.8–71.4W (Field-Adjustable) |
| Lumens | 850–6,000 lm |
| Color Temperature | CCT Selectable (2700K–SunsetK) |
| CRI | 93+ |
| Dimming | Triac/ELV or 0-10V |
| Beam Angle | 60° |
| Finish | Haze with White Trim |
| Wet Location | cULus Listed |
| Rated Life | 50,000 hours L70 |
| Lumen Maintenance | >90 lumens/watt |
