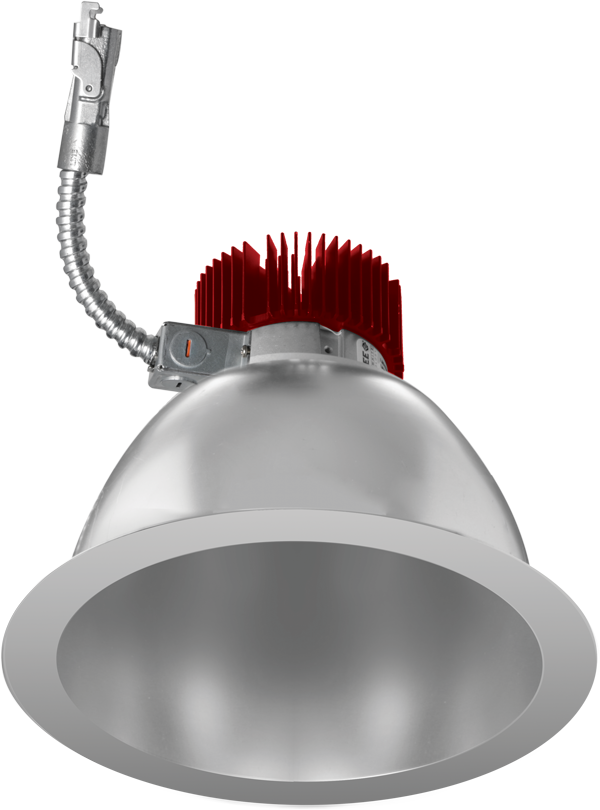

Elco Lighting 8" Reflector LED Light Engine Trim, 8.8–71.4W, CRI93, CCT Selectable, Triac/0-10V, All Haze, E810L2040H
- ROCK SKU: ELC-E810L2040H
- UPC: 633999008674
- MFG Part #: E810L2040H
$172.46
The Elco Lighting E810L2040H is an 8" reflector LED light engine trim for use with compatible Laurel System frames in new construction, remodel, and retrofit applications, including wet locations. Rated 8.8–71.4W with an output range of 850–6000 lumens, it offers field-selectable CCT and dims via Triac/ELV or 0-10V controls. The deep-spun, self-flanged semi-specular aluminum reflector delivers strong glare cutoff, while 93+ CRI and a 60° beam angle ensure accurate, controlled illumination; cULus listed for wet locations and RoHS compliant. All Haze (Semi-Specular) finish. USA designed and assembled.
| Watts | 8.8–71.4W |
| Lumens | 850–6,000 lm |
| Color Temperature | CCT Selectable (2700K–SunsetK) |
| CRI | 93+ |
| Dimming | TRIAC / ELV or 0-10V |
| Beam Angle | 60° |
| Wet Location | cULus Listed |
| Rated Life | 50,000 hours (L70) |
| Finish | All Haze (Semi-Specular) |
| Notes | Frame sold separately; Generation 1 |
