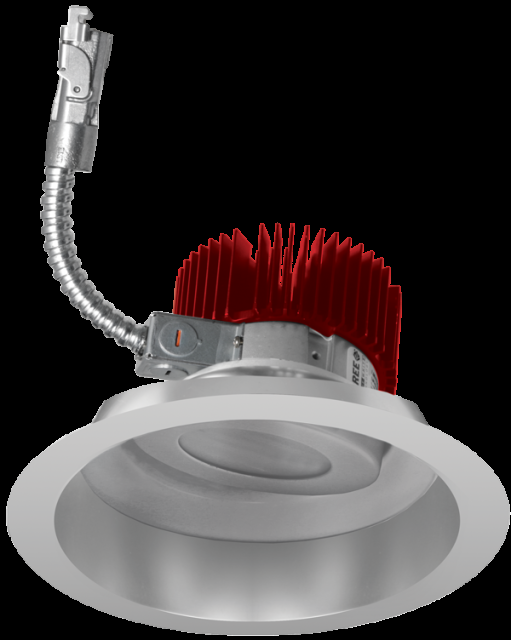

Elco Lighting 6" Wall Wash LED Engine Generation 2, 36.8–71.4W, CCT Selectable, CRI 93+, E618L3035W2-F
- ROCK SKU: ELC-E618L3035W2-F
- UPC:
- MFG Part #: E618L3035W2-F
$170.91
The Elco Lighting E618L3035W2-F is a 6" wall wash LED light engine (Generation 2) configured for Elco's Laurel System frames in new construction, remodel, and retrofit installations. Rated from 36.8W–71.4W with an output of 4000–6000 lumens and field-selectable CCT (3000K–5000K), it achieves >90 lumens per watt with a CRI 93+ and is dimmable via Triac/ELV or 0-10V. The single-direction wall wash reflector provides strong glare cutoff for even vertical surface illumination, and the engine is Wet Location listed. Frame sold separately; Generation 2 is not cross-compatible with Generation 1.
| Watts | 36.8–71.4W (Field-Adjustable) |
| Lumens | 4,000–6,000 lm |
| Color Temperature | CCT Selectable (3000K–5000K) |
| CRI | 93+ |
| Beam Angle | 38° |
| Dimmable | Yes (Triac/ELV or 0-10V) |
| Rated Life | 50,000 hours (L70) |
| Wet Location | Listed |
| Lamp Type | LED |
| Compatibility | Laurel System Frame (sold separately), Generation 2 only |
