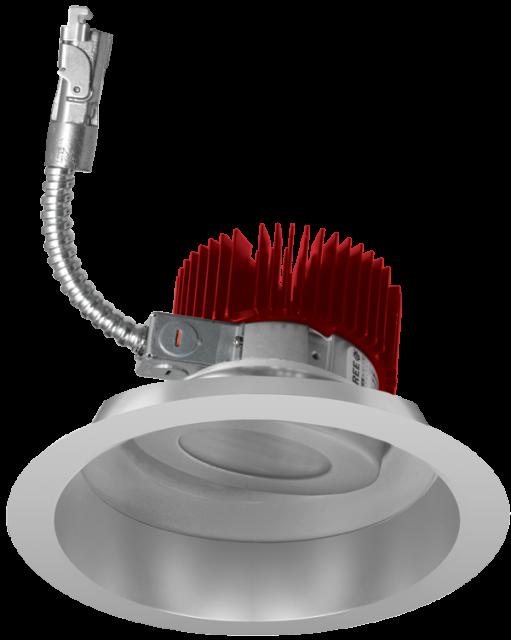

Elco Lighting 6" Wall Wash LED Engine, 36.8–71.4W, CCT Selectable, CRI 93+, E618L3040B
- ROCK SKU: ELC-E618L3040B
- UPC: 633999028177
- MFG Part #: E618L3040B
$194.27
The Elco Lighting E618L3040B is a 6" wall wash LED light engine designed for Elco's Laurel System frames in new construction, remodel, and retrofit configurations. Rated from 36.8W–71.4W with an output of 4000–6000 lumens and field-selectable CCT (3000K–5000K), it delivers >90 lumens per watt with a CRI 93+ and is dimmable via Triac/ELV or 0-10V. The one-piece spun aluminum wall wash reflector minimizes glare and concentrates light in a single direction for uniform vertical surface coverage, with a Wet Location listing. Frame sold separately; not cross-compatible with Generation 2 units.
| Watts | 36.8–71.4W (Field-Adjustable) |
| Lumens | 4,000–6,000 lm |
| Color Temperature | CCT Selectable (3000K–5000K) |
| CRI | 93+ |
| Beam Angle | 60° |
| Dimmable | Yes (Triac/ELV or 0-10V) |
| Rated Life | 50,000 hours (L70) |
| Wet Location | Listed |
| Lamp Type | LED |
| Compatibility | Laurel System Frame (sold separately) |
