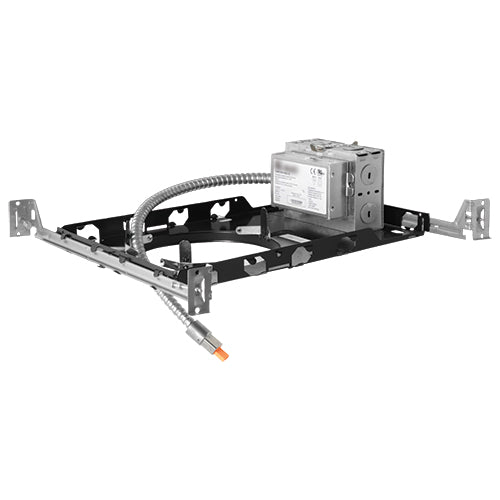

Elco Lighting 6" New Construction Plaster Frame with Driver Generation 2 Emergency Backup, 12.5W Max, 120/277V, E6LFU12D2-EM2
- ROCK SKU: ELC-E6LFU12D2-EM2
- UPC:
- MFG Part #: E6LFU12D2-EM2
$260.91
The Elco Lighting E6LFU12D2-EM2 is a 6" Generation 2 new construction plaster frame with driver and integrated emergency backup, designed for T-grid, drop ceiling, and wood-joist installations where a separately purchased LED light engine is specified. The driver supports 120/277V universal input and 0-10V/Triac/ELV dimming to 1%, with a maximum load of 12.5W, power factor ≥0.9, and 90-minute emergency backup capability. Constructed from 16-gauge galvanized steel with pre-installed True Nail hanger bars, the housing is cULus listed for damp locations; Gen 2 frames are not cross-compatible with Generation 1 light engines.
| Watts | 12.5W (Max) |
| Lumens | 850 lm |
| Voltage | 120/277V |
| Dimming | 0-10V/Triac/ELV (1% dimming) |
| Power Factor | ≥0.9 |
| Location Rating | Damp; Wet (with select trims) |
| Emergency Backup | 90 minutes, battery |
| Warranty | 5-Year Limited |
