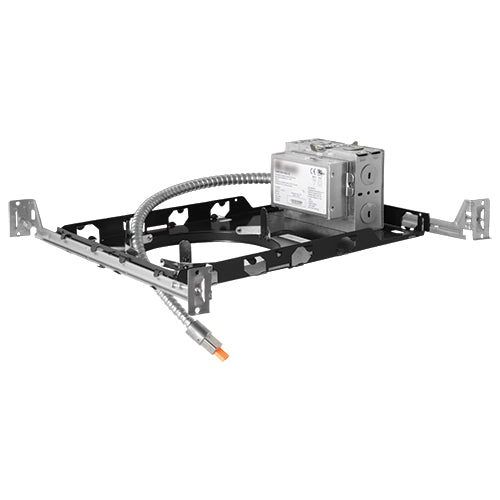

Elco Lighting 6" New Construction Plaster Frame, 12.5W Max, 120/277V, 0-10V/Triac/ELV, Emergency Backup, E6LFU30D2-EM2
- ROCK SKU: ELC-E6LFU30D2-EM2
- UPC:
- MFG Part #: E6LFU30D2-EM2
$278.91
The Elco Lighting E6LFU30D2-EM2 is a 6" Generation 2 new construction plaster frame with integrated driver for recessed LED installations, USA designed and assembled from 16-gauge galvanized steel for commercial-grade applications. It supports up to 12.5W max at 120/277V with 0-10V/Triac/ELV dimming to 1%, and includes an optional 90-minute emergency backup unit rated for 120/277 VAC, 60Hz. The LED light engine is sold separately; cULus listed for damp locations, power factor ≥0.9, and a 5-year limited warranty — note that Generation 2 housings are not cross-compatible with Generation 1 components.
| Watts | 12.5W Max |
| Lumens | 850 lm |
| Voltage | 120/277V |
| Dimming | 0-10V/Triac/ELV (1% dimming) |
| Power Factor | ≥0.9 |
| Listings | cULus (Damp Location; Wet Location with select trims) |
| Emergency Backup | Optional 90 minutes, 120/277V |
| Warranty | 5-Year Limited |
