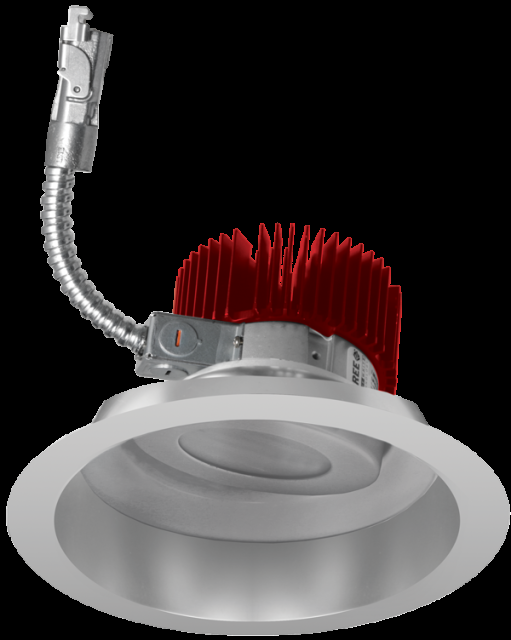

Elco Lighting 6" LED Light Engine Wall Wash, 36.8–71.4W, CCT Selectable, CRI93+, 0-10V/TRIAC, E618L20SDH
- ROCK SKU: ELC-E618L20SDH
- UPC:
- MFG Part #: E618L20SDH
$116.91
The Elco Lighting E618L20SDH is a 6" LED light engine with wall wash trim engineered for the Laurel System frame platform in new construction, remodel, and retrofit installations. Operating from 36.8W to 71.4W and delivering 4000–6000 lumens with a field-selectable CCT of 3000K–5000K, it achieves CRI 93+ and supports dimming via Triac/ELV or 0-10V controls. The one-piece spun aluminum wall wash reflector channels light in a single direction for uniform vertical surface illumination, and the unit is cULus listed for wet locations with a 50,000-hour L70 rated life. Frame sold separately.
| Watts | 36.8–71.4W (Field-Adjustable) |
| Lumens | 4,000–6,000 lm |
| Color Temperature | CCT Selectable (3000K–5000K) |
| CRI | 93+ |
| Dimming | 0-10V or TRIAC/ELV |
| Beam Angle | 60° (Wall Wash) |
| Wet Location | cULus Listed |
| Rated Life | 50,000 hours (L70) |
| Compatibility | Laurel System Frame (sold separately) |
