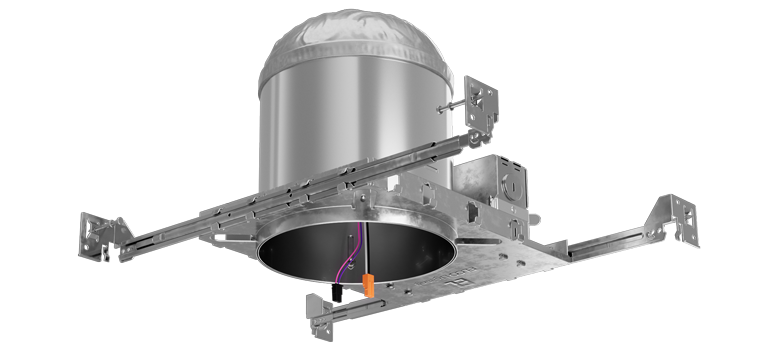

Elco Lighting 6" IC New Construction LED Housing, 0-10V, 120/277V, EM5, EL770ICDXA-EM5

Elco Lighting 6" IC New Construction LED Housing, 0-10V, 120/277V, EM5, EL770ICDXA-EM5

$270.00

Spec Sheet
Spec Sheet

The Elco Lighting EL770ICDXA-EM5 is a 6" IC-rated new construction dedicated LED housing with integral EM5 battery backup, designed for ceiling plenums with 2×6 or taller joists in new construction applications. The single-wall IC airtight construction is rated for direct insulation contact and meets ASTM E-283 restricted airflow requirements, with a stamped galvanized steel frame sized for up to 1¼" ceiling thickness and a maximum hole cutout of 6¼". Wired for 0-10V/Triac/ELV dimming at 120/277V, the housing is cUL listed for wet locations with compatible wet-location inserts, feed-through wiring, and CA Title 24 compliant.

Voltage 120/277V
Dimming 0-10V, Triac/ELV
IC Rating IC-Rated, Airtight
Construction Single Wall, Direct Contact with Insulation
Listings cUL, Damp/Wet Location (with select trims), Feed-Through
