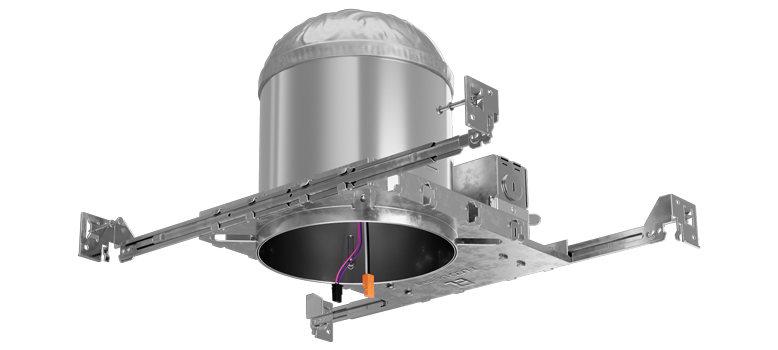

Elco Lighting 6" IC New Construction LED Housing, 0-10V, 120/277V, EL770ICDXA

Elco Lighting 6" IC New Construction LED Housing, 0-10V, 120/277V, EL770ICDXA

$26.10

Spec Sheet
Spec Sheet

The Elco Lighting EL770ICDXA is a 6" IC-rated new construction dedicated LED housing intended for ceiling plenums with 2×6 or taller joists where a dedicated LED insert will be installed. Single-wall IC airtight construction allows direct insulation contact and satisfies ASTM E-283 restricted airflow requirements, with a galvanized steel frame accommodating up to 1¼" ceiling thickness and a maximum hole cutout of 6¼". Wired for 0-10V/Triac/ELV dimming at 120/277V, it is cUL listed for wet locations with compatible inserts, feed-through wiring, and CA Title 24 compliant.

Voltage 120/277V
Dimming 0-10V, Triac/ELV
IC Rating IC-Rated, Airtight
Construction Single Wall, Direct Contact with Insulation
Listings cUL, Damp/Wet Location (with select trims), Feed-Through
