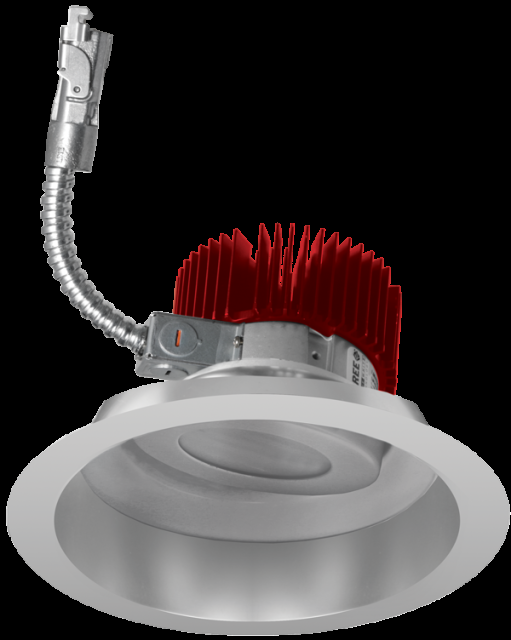

Elco Lighting 6" Adjustable LED Engine Generation 2, 8.8–71.4W, CCT Selectable, CRI 93+, E618L3030HW2
- ROCK SKU: ELC-E618L3030HW2
- UPC: 633999161812
- MFG Part #: E618L3030HW2
$161.91
The Elco Lighting E618L3030HW2 is a 6" adjustable LED light engine (Generation 2) built for Elco's Laurel System frames in new construction, remodel, and retrofit installations. Spanning 8.8W–71.4W with an output of 850–6000 lumens and field-selectable CCT (2700K–SunsetK), the engine achieves >90 lumens per watt with a CRI 93+ and a 60° beam angle. The deep, self-flanged spun aluminum reflector with integral gimbal ring offers ±25° tilt for sloped ceilings and wall wash use, and the unit carries a Wet Location listing and 50,000-hour L70 rated life. Frame sold separately; Generation 2 is not cross-compatible with Generation 1.
| Watts | 8.8–71.4W (Field-Adjustable) |
| Lumens | 850–6,000 lm |
| Color Temperature | CCT Selectable (2700K–5000K) |
| CRI | 93+ |
| Beam Angle | 60° |
| Dimmable | Yes (Triac/ELV or 0-10V) |
| Rated Life | 50,000 hours (L70) |
| Wet Location | Listed |
| Lamp Type | LED |
| Compatibility | Laurel System Frame (sold separately), Generation 2 only |
