Elco Lighting 6" 0-10V LED Insert, 13/19/24W, CCT Selectable, CRI90, 0-10V, White, EL685CT5DW

ROCK SKU: ELC-EL685CT5DW
UPC: 633999195176
MFG Part #: EL685CT5DW

$72.67

Spec Sheet

Estimated Lead Time: 0-2 weeks

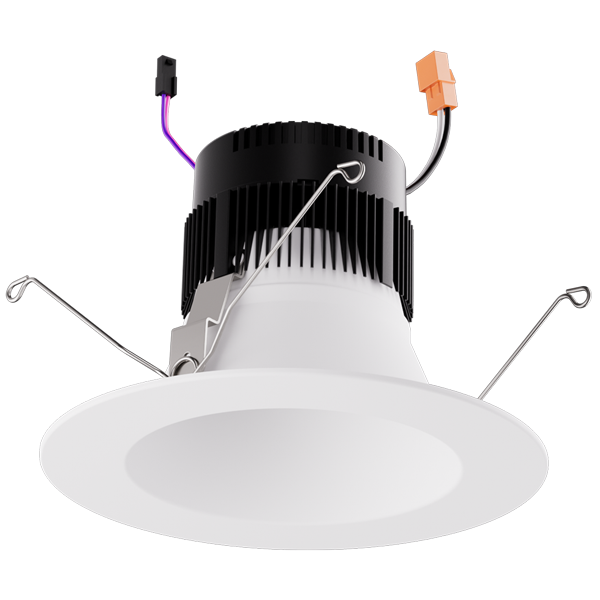

The Elco Lighting EL685CT5DW is a 6" 0-10V dimmable LED insert with field-selectable CCT (2700K–5000K) and three lumen output settings, suited for new construction, remodel, and retrofit use within ELCO Ply System housings. A manual on-module switch allows selection among 1000 lm (13W), 1500 lm (19W), or 2000 lm (24W) alongside any of five color temperatures, all driven by a 120/277V 0-10V dimmable driver. Rated 90+ CRI, ETL listed for wet locations, ENERGY STAR certified, and Title 24 JA8-2016-E compliant with a 50,000-hour L70 lifespan; available in an all-white finish.

Watts	13/19/24W (Field-Selectable)
Lumens	1,000–2,000 lm (Field-Selectable)
Color Temperature	CCT Selectable (2700K/3000K/3500K/4000K/5000K)
CRI	90+
Voltage	120/277V
Dimming	0-10V
Rated Life	50,000 hours (L70)
Listings	ETL Listed (Wet Location), Energy Star, Title 24 JA8-2016-E
Finish	White
