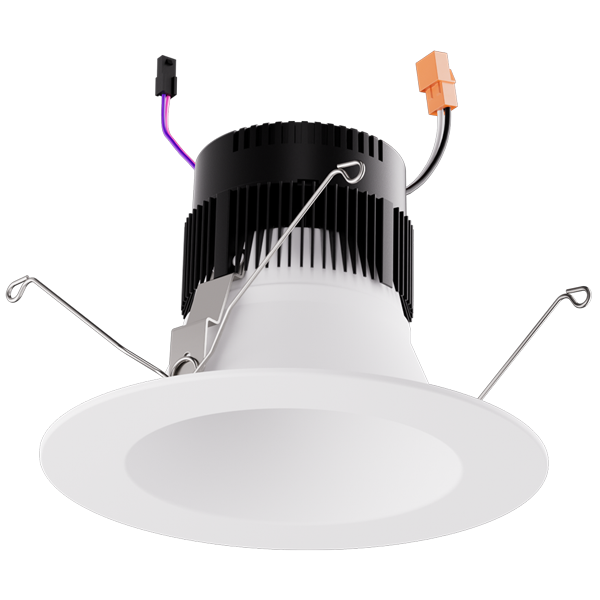

Elco Lighting 6" 0-10V LED Insert, 13/19/24W, CCT Selectable, CRI90, 0-10V, Black, EL685CT5DBB
- ROCK SKU: ELC-EL685CT5DBB
- UPC: 633999206902
- MFG Part #: EL685CT5DBB
$83.07
The Elco Lighting EL685CT5DBB is a 6" 0-10V dimmable LED insert with field-selectable CCT (2700K–5000K) and three lumen output settings, suited for new construction, remodel, and retrofit use within ELCO Ply System housings. A manual on-module switch allows selection among 1000 lm (13W), 1500 lm (19W), or 2000 lm (24W) alongside any of five color temperatures, all driven by a 120/277V 0-10V dimmable driver. Rated 90+ CRI, ETL listed for wet locations, ENERGY STAR certified, and Title 24 JA8-2016-E compliant with a 50,000-hour L70 lifespan; available in an all-black finish.
| Watts | 13/19/24W (Field-Selectable) |
| Lumens | 1,000–2,000 lm (Field-Selectable) |
| Color Temperature | CCT Selectable (2700K/3000K/3500K/4000K/5000K) |
| CRI | 90+ |
| Voltage | 120/277V |
| Dimming | 0-10V |
| Rated Life | 50,000 hours (L70) |
| Listings | ETL Listed (Wet Location), Energy Star, Title 24 JA8-2016-E |
| Finish | Black |
