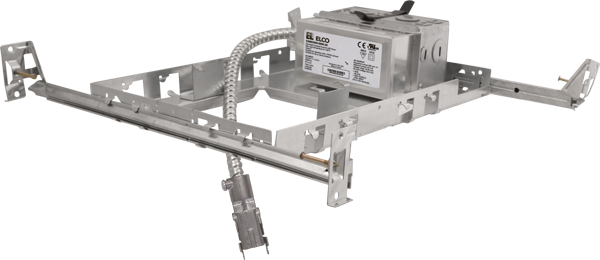

Elco Lighting 4" Square New Construction Plaster Frame with Driver, 4000 lm, CRI93+, 0-10V/Triac/ELV, 120-277V, Emergency Backup, E4SQLFU40D2-EM2
- ROCK SKU: ELC-E4SQLFU40D2-EM2
- MFG Part #: E4SQLFU40D2-EM2
$296.91
The Elco Lighting E4SQLFU40D2-EM2 is a 4" square new construction plaster frame with integrated driver and 90-minute emergency backup, suited for commercial recessed applications where egress lighting compliance is required. It delivers 4000 lm with CRI 93+ and supports 0-10V, Triac, and ELV dimming on 120–277V; the included emergency backup operates at 120/277V AC, 60Hz. cULus listed for wet location (with select trims) and damp location, built from 16-gauge galvanized steel with pre-installed hanger bars for wood framing and T-bar ceilings. This is a Generation 2 frame — the LED light engine is sold separately and is not cross-compatible with Gen 1 components.
| Lumens | 4000 lm |
| Color Temperature | Not specified (LED light engine sold separately) |
| CRI | 93+ |
| Voltage | 120-277V |
| Dimming | 0-10V, Triac, ELV |
| Emergency Backup | Optional 90 minutes, 120/277V, 60Hz |
| Wet Location | cULus Listed for Damp & Wet Location (select trims) |
| Warranty | 5-Year Limited |
| Mount Type | New Construction, Plaster Frame, 4" Square, Gen 2 |
