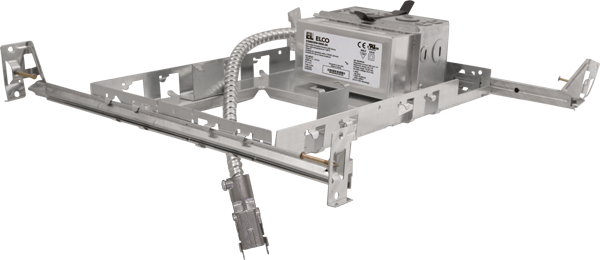

Elco Lighting 4" Square New Construction Plaster Frame with Driver, 4000 lm, CRI93+, 0-10V/Triac/ELV, 120-277V, E4SQLFU40D2
- ROCK SKU: ELC-E4SQLFU40D2
- MFG Part #: E4SQLFU40D2
$89.91
The Elco Lighting E4SQLFU40D2 is a 4" square new construction plaster frame with integrated driver for commercial and high-output recessed lighting applications. Rated at 4000 lm with CRI 93+, the frame supports 0-10V, Triac, and ELV dimming across 120–277V and is cULus listed for wet location (with select trims) and damp location. The 16-gauge galvanized steel construction includes pre-installed hanger bars compatible with standard lumber, engineered lumber, laminated beams, and T-bar ceilings; an optional 90-minute emergency backup is available. This is a Generation 2 frame — the LED light engine is sold separately and Gen 1 engines are not cross-compatible.
| Lumens | 4000 lm |
| Color Temperature | Not specified (LED light engine sold separately) |
| CRI | 93+ |
| Voltage | 120-277V |
| Dimming | 0-10V, Triac, ELV |
| Wet Location | cULus Listed for Damp & Wet Location (select trims) |
| Warranty | 5-Year Limited |
| Mount Type | New Construction, Plaster Frame, 4" Square, Gen 2 |
