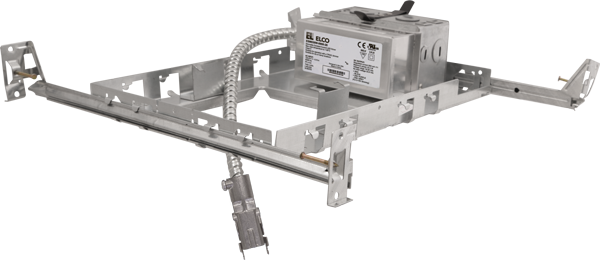

Elco Lighting 4" Square New Construction Plaster Frame, 120/277V, 0-10V/Triac/ELV, CRI93+, Battery Backup, E4SQLFU20D2-EM1
- ROCK SKU: ELC-E4SQLFU20D2-EM1
- UPC:
- MFG Part #: E4SQLFU20D2-EM1
$216.00
The Elco Lighting E4SQLFU20D2-EM1 is a 4" square new construction plaster frame with driver and integrated battery backup for commercial ceiling applications requiring code-compliant emergency egress lighting, operating at 120/277V with 2000 lm output. The Generation 2 driver supports 0-10V, Triac, and ELV dimming, with CRI 93+, and the 16-gauge galvanized steel housing is cULus Listed for Damp and Wet Locations; the included 90-minute emergency backup operates at 120/277 VAC, 60Hz. Pre-installed hanger bars span standard lumber, engineered lumber, and T-bar grids; the LED light engine is sold separately. Note: Gen 2 and Gen 1 components are not cross-compatible.
| Lumens | 2,000 lm |
| Voltage | 120/277V |
| Dimming | 0-10V/Triac/ELV |
| CRI | 93+ |
| Emergency Backup | 90 minutes, 120/277 VAC, 60Hz |
| Wet Location | Listed |
| Construction | 16 gauge galvanized steel |
| Installation | Pre-installed hanger bars; T-bar compatible |
| Warranty | 5-Year Limited |
