Elco Lighting 4" Square Architectural Frame with Driver, 1600 lm, CRI93+, 0-10V/Triac/ELV, 120-277V, Emergency Backup, E4SQLHU16D2-EM2
- ROCK SKU: ELC-E4SQLHU16D2-EM2
- MFG Part #: E4SQLHU16D2-EM2
$252.00

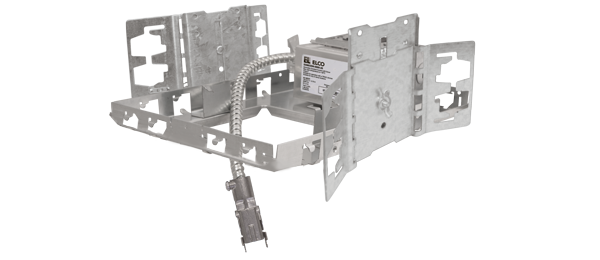

The Elco Lighting E4SQLHU16D2-EM2 is a 4" square architectural frame with integrated driver and 90-minute emergency backup, intended for large architectural recessed installations with egress lighting requirements. Rated at 1600 lm with CRI 93+, it supports 0-10V, Triac, and ELV dimming across 120–277V; the emergency backup operates at 120/277V AC, 60Hz. The 16-gauge galvanized steel frame adjusts to accommodate up to 2" ceiling thickness and accepts ½" conduit, C-channels, or linear bar hangers; the LED light engine and hanger bars are sold separately. This is a Generation 2 frame — not cross-compatible with Gen 1 components.
| Lumens | 1600 lm |
| Color Temperature | Not specified (LED light engine sold separately) |
| CRI | 93+ |
| Voltage | 120-277V |
| Dimming | 0-10V, Triac, ELV |
| Emergency Backup | Optional 90 minutes, 120/277V, 60Hz |
| Wet Location | cULus Listed for Damp & Wet Location (select trims) |
| Warranty | 5-Year Limited |
| Mount Type | Architectural Frame, 4" Square, Gen 2; Hanger bars sold separately |
