/ Elco Lighting 4" Square Architectural Frame with Driver,...
Elco Lighting 4" Square Architectural Frame with Driver, 1250 lm, CRI93+, 0-10V/Triac/ELV, 120-277V, Emergency Backup, E4SQLHU12D2-EM2
- ROCK SKU: ELC-E4SQLHU12D2-EM2
- MFG Part #: E4SQLHU12D2-EM2
$260.91

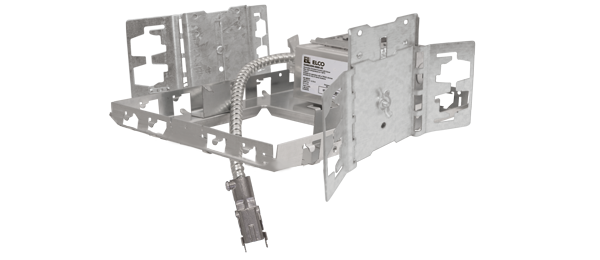

The Elco Lighting E4SQLHU12D2-EM2 is a 4" square architectural frame with integrated driver and 90-minute emergency backup, built for large architectural recessed installations where egress compliance is required. Rated at 1250 lm with CRI 93+, it supports 0-10V, Triac, and ELV dimming across 120–277V; the emergency backup operates at 120/277V AC, 60Hz. The 16-gauge galvanized steel frame accommodates up to 2" ceiling thickness and accepts ½" conduit, C-channels, or linear bar hangers; the LED light engine and hanger bars are sold separately. This is a Generation 2 frame — not cross-compatible with Gen 1 components.
| Lumens | 1250 lm |
| Color Temperature | Not specified (LED light engine sold separately) |
| CRI | 93+ |
| Voltage | 120-277V |
| Dimming | 0-10V, Triac, ELV |
| Emergency Backup | Optional 90 minutes, 120/277V, 60Hz |
| Wet Location | cULus Listed for Damp & Wet Location (select trims) |
| Warranty | 5-Year Limited |
| Mount Type | Architectural Frame, 4" Square, Gen 2; Hanger bars sold separately |
