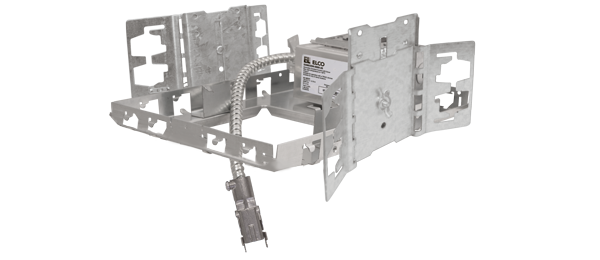

Elco Lighting 4" Square Architectural Frame with Driver, 1250 lm, CRI93+, 0-10V/Triac/ELV, 120-277V, E4SQLHU12D2
- ROCK SKU: ELC-E4SQLHU12D2
- MFG Part #: E4SQLHU12D2
$53.91
The Elco Lighting E4SQLHU12D2 is a 4" square architectural frame with integrated driver for commercial recessed applications requiring a heavy-duty rough-in frame compatible with conduit, C-channel, or bar hanger systems. Rated at 1250 lm with CRI 93+, it supports 0-10V, Triac, and ELV dimming across 120–277V and is cULus listed for wet location (with select trims) and damp location. The 16-gauge galvanized steel housing adjusts for up to 2" ceiling thickness, with optional 90-minute emergency backup available; the LED light engine and hanger bars are sold separately. This is a Generation 2 frame — not cross-compatible with Gen 1 components.
| Lumens | 1250 lm |
| Color Temperature | Not specified (LED light engine sold separately) |
| CRI | 93+ |
| Voltage | 120-277V |
| Dimming | 0-10V, Triac, ELV |
| Wet Location | cULus Listed for Damp & Wet Location (select trims) |
| Warranty | 5-Year Limited |
| Mount Type | Architectural Frame, 4" Square, Gen 2; Hanger bars sold separately |
