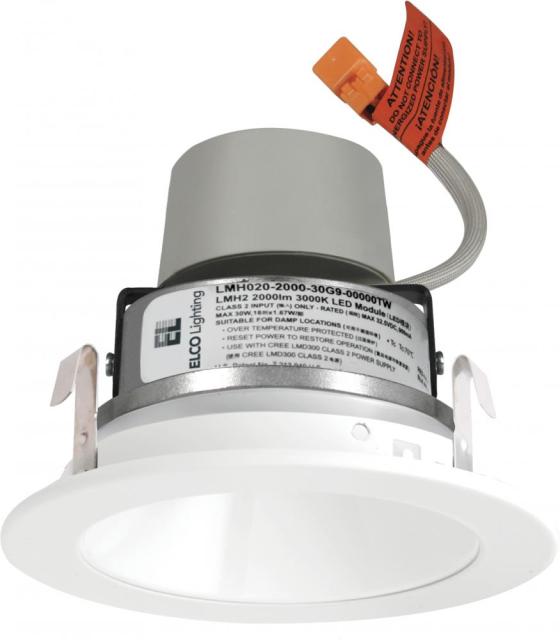

Elco Lighting 4" Reflector LED Light Engine Trim, 8.8–31W, 2700K–SunsetK, CRI93+, 0-10V/Triac/ELV, E410R08SDH
- ROCK SKU: ELC-E410R08SDH
- UPC:
- MFG Part #: E410R08SDH
$89.91
The Elco Lighting E410R08SDH is a 4" reflector LED light engine trim engineered for horizontal installation within the Elco Laurel System frame (sold separately) across new construction, remodel, and retrofit configurations. Spanning 8.8W–31W with 850–3000 lumens output and a 60° beam angle, it supports field-selectable CCT from 2700K–SunsetK and achieves 1% dimming via a 3-in-1 driver compatible with 0-10V, Triac, and ELV controls. With CRI 93+, efficacy exceeding 90 lumens per watt, and a cULus Wet Location listing, this USA-designed and assembled unit is built for demanding residential and commercial installations.
| Watts | 8.8–31W |
| Lumens | 850–3,000 lm |
| Color Temperature | 2700K–SunsetK |
| CRI | 93+ |
| Dimming | 0-10V / Triac / ELV (1%) |
| Beam Angle | 60° |
| Wet Location | cULus Listed |
| Compatibility | Laurel System Frame (sold separately) |
| Rated Life | 50,000 hours L70 |
