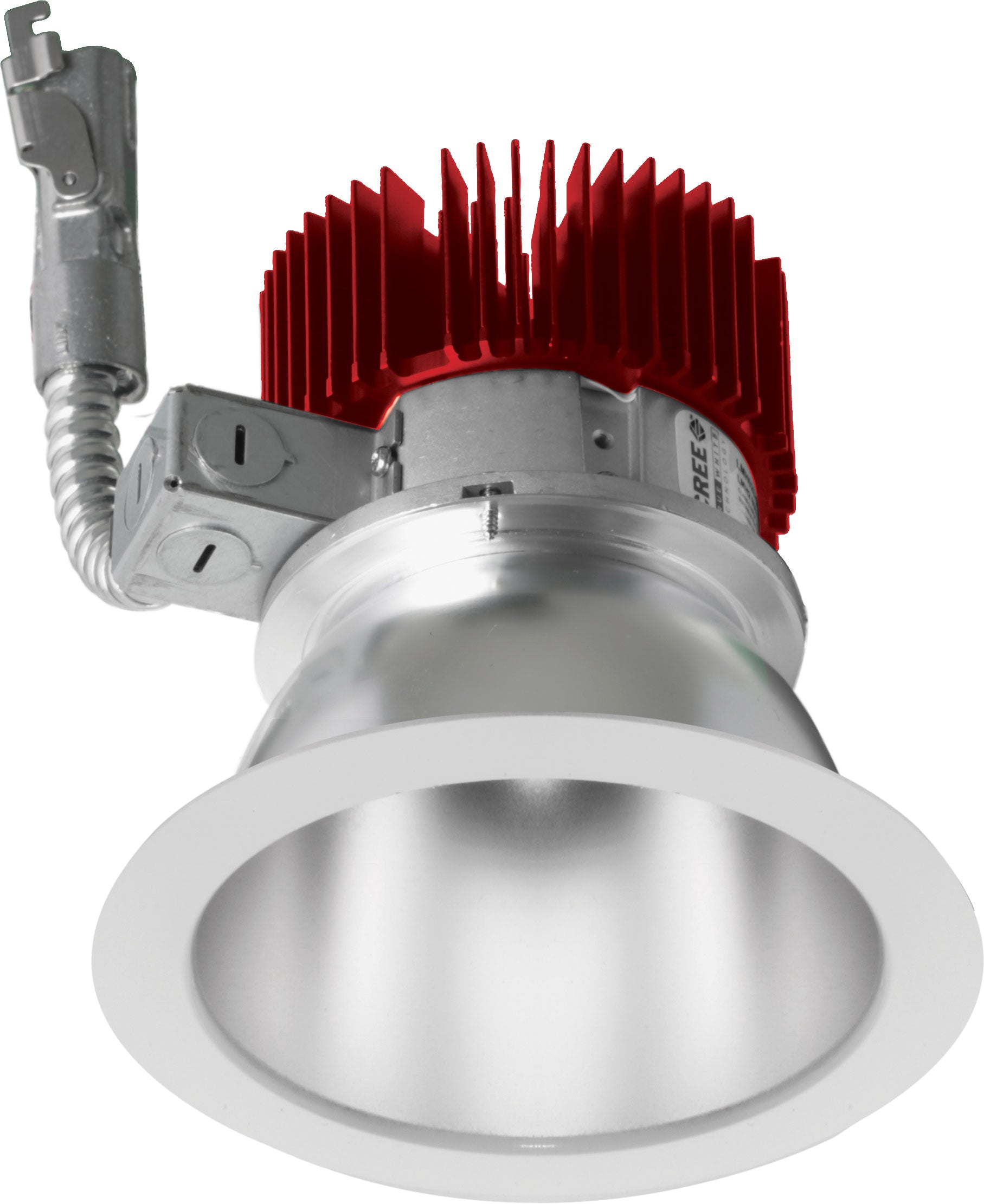

Elco Lighting 4" Reflector LED Light Engine Trim, 16.8W, 3000K, CRI93, 0-10V/Triac/ELV Dimming, Haze with White Trim, E410L1230HW2
- ROCK SKU: ELC-E410L1230HW2
- UPC: 633999161638
- MFG Part #: E410L1230HW2
$80.91
The Elco Lighting E410L1230HW2 is a 4" reflector LED light engine trim designed for use with Elco Laurel System frames in new construction, remodel, and retrofit recessed applications. At 16.8W, it delivers 1,250 lumens at 3000K with a 93+ CRI and 60° beam angle via a deep-spun aluminum reflector with frosted polycarbonate lens for reduced glare. The 3-in-1 driver supports 0-10V, Triac, and ELV dimming to 1%, and the unit is cULus listed for wet locations and RoHS compliant. Generation 2 — not cross-compatible with Gen 1 frames. Haze reflector with White trim finish. Frame sold separately.
| Watts | 16.8W |
| Lumens | 1,250 lm |
| Color Temperature | 3000K |
| CRI | 93+ |
| Dimming | 0-10V / Triac / ELV (1% Dimming) |
| Beam Angle | 60° |
| Finish | Haze with White Trim |
| Wet Location | cULus Listed |
| Rated Life | 50,000 hours |
| Warranty | 5-Year Limited |
