/ Elco Lighting 4" Reflector LED Light Engine, 8.8–31W,...

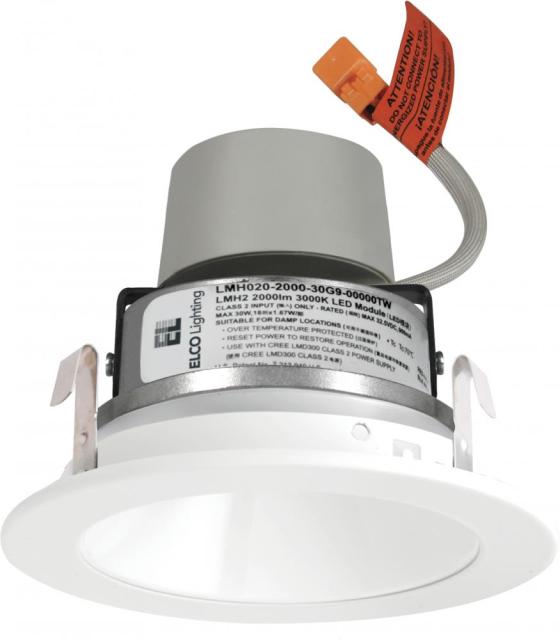

Elco Lighting 4" Reflector LED Light Engine, 8.8–31W, CCT Selectable, CRI93, 0-10V/Triac/ELV, E410R0835W
- ROCK SKU: ELC-E410R0835W
- UPC: 633999053575
- MFG Part #: E410R0835W
$89.91
The Elco Lighting E410R0835W is a 4" Reflector LED Light Engine designed for use with Elco's Laurel System frames in new construction, remodel, and retrofit recessed lighting applications. Ranging from 8.8W to 31W with an output of 850–3000 lumens, it features field-selectable CCT across a 2700K–SunsetK range and dims to 1% via a 3-in-1 driver compatible with 0-10V, Triac, and ELV controls. The one-piece deep spun aluminum reflector delivers strong glare cutoff, and the CRI 93+ rating with 60° beam angle suits commercial and residential downlight installations; cULus listed for wet locations. USA designed and assembled; frame sold separately.
| Watts | 8.8–31W (Field-Adjustable) |
| Lumens | 850–3,000 lm |
| Color Temperature | CCT Selectable (2700K–SunsetK) |
| CRI | 93+ |
| Dimming | 0-10V, Triac, ELV (1% Dimming) |
| Beam Angle | 60° |
| Wet Location | Listed |
| Warranty | 5-Year Limited |
