/ Elco Lighting 4" New Construction Plaster Frame with...
Elco Lighting 4" New Construction Plaster Frame with Driver, 12.5–44.1W Max., 850–3,000 lm, 120/277V, 0-10V/Triac/ELV, E8LFU60D2
- ROCK SKU: ELC-E8LFU60D2
- UPC: 633999163243
- MFG Part #: E8LFU60D2
$116.91

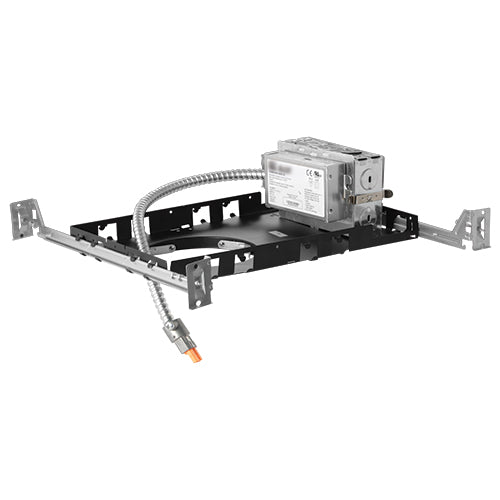

The Elco Lighting E8LFU60D2 is an 8" new construction plaster frame with integrated driver for use with compatible Laurel System LED light engine trims in commercial and residential ceiling applications. Rated for 12.5–44.1W max. and an output range of 850–3,000 lumens at 120/277V, it supports Triac/ELV and 0-10V dimming (including Sunset and Lutron EcoSystem compatibility) and is available with optional 90-minute emergency backup. Constructed from 16-gauge galvanized steel with pre-installed True Nail hanger bars; cULus listed for damp location, USA designed and assembled, 5-year limited warranty; LED light engine sold separately.
| Watts | 12.5–44.1W Max. |
| Lumens | 850–3,000 lm |
| Voltage | 120/277V or 120V |
| Dimming | 0-10V, Triac, ELV (1% dimming), Sunset, Lutron |
| Power Factor | ≥0.9 |
| Damp Location | Listed |
| Wet Location | Listed (with select trims) |
| Emergency Backup | Optional 90 min., 120/277V AC |
